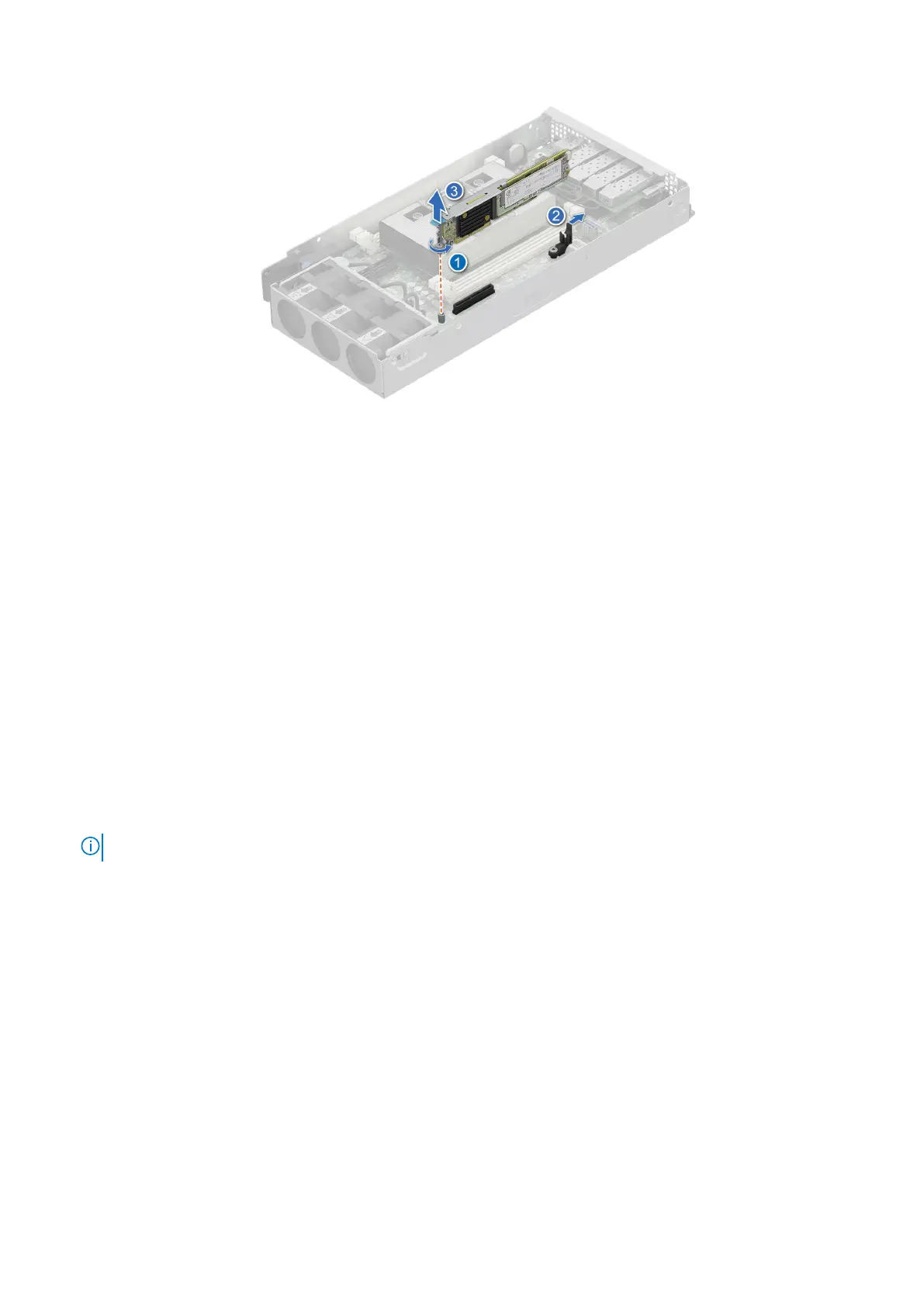

Figure 24. Removing the BOSS-N1 card
Next steps
1. Replace the BOSS-N1 card
2. Replace the M.2 SSD module
.
Installing the BOSS-N1 card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3.
Steps
1. Align and insert the BOSS-N1 card connector with the connector on the system board.
2. Press the BOSS-N1 card firmly until it is fully seated.
3. Using the Phillips 1 screwdriver, tighten the screw to secure the BOSS-N1 card on the system board.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
