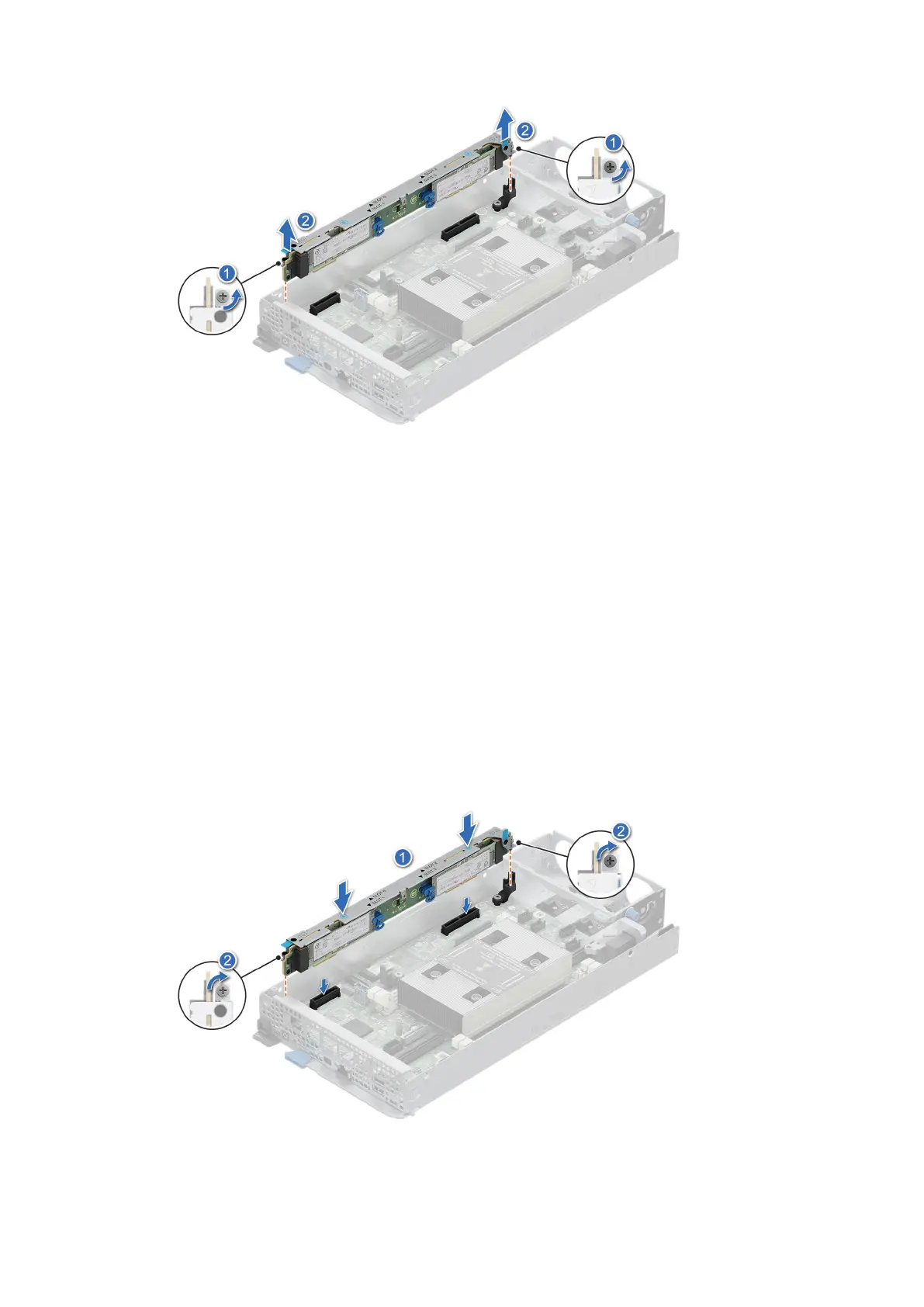

Figure 28. Removing the M.2 riser
Next steps
Replace the M.2 Riser.
Installing the M.2 riser module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Align the M.2 module with the system board and insert it firmly using the blue touch point until the riser is fully seated in the
slot.
2. Using a Phillips 2 screwdriver, tighten the two screws to secure the riser to the system board.
Figure 29. Installing the M.2 riser
