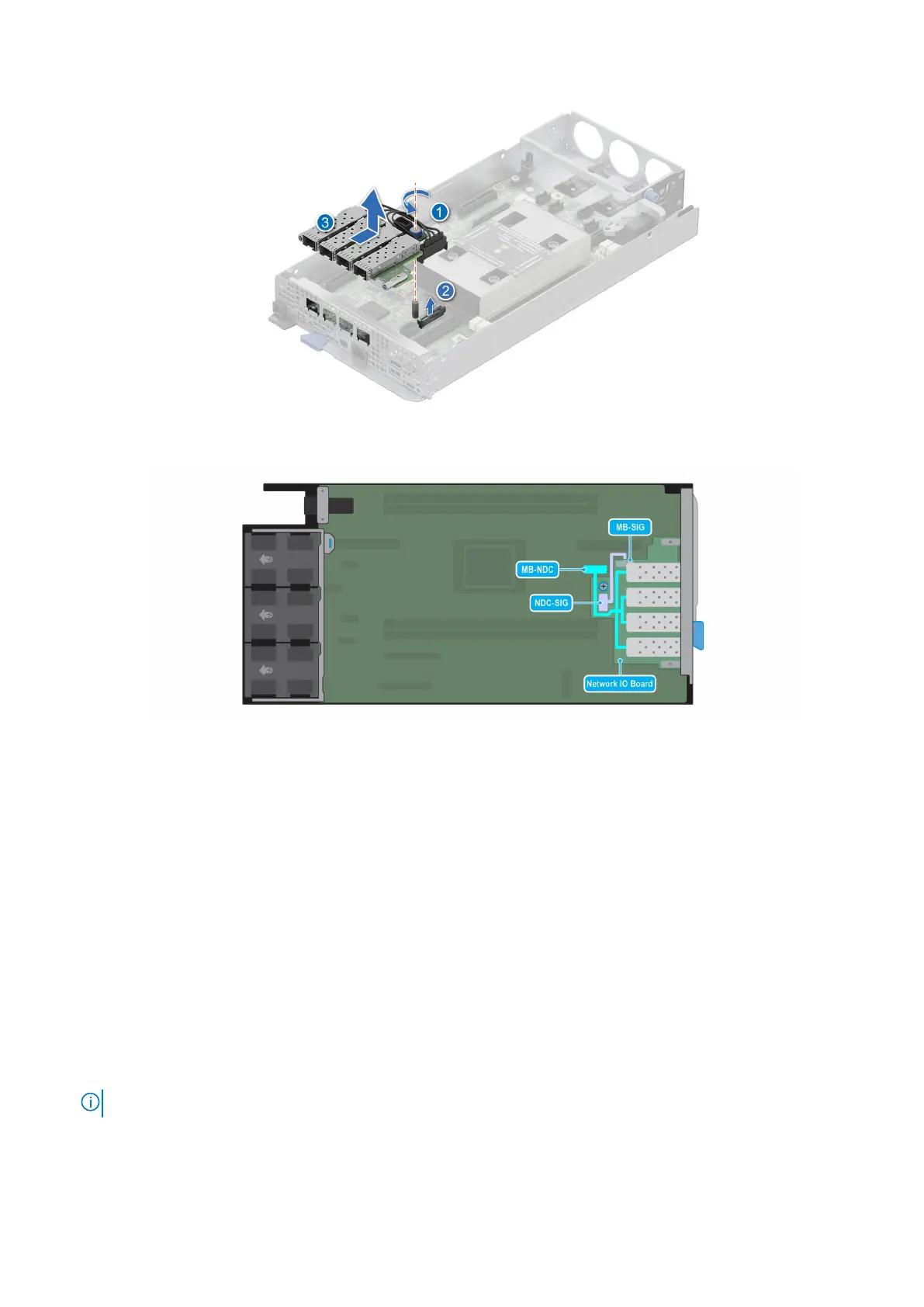

Figure 32. Removing the Network I/O Board
Figure 33. Cable routing for Network I/O Board
Next steps
Installing the Network I/O Board
Install the Network I/O Board
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Install the Network I/O board signal cable by aligning the cable using the latch and pressing down the cable pin to lock in
place.
2. Press and align the Network LED RAF or NAF signal cable to install it on the Network I/O board.
NOTE: There is a difference in the network I/O signal cable for NAF and RAF configurations.
3. Install the Network I/O board on the 1U sled by aligning it with the help of the guiding pin.
Installing and removing system components
67
