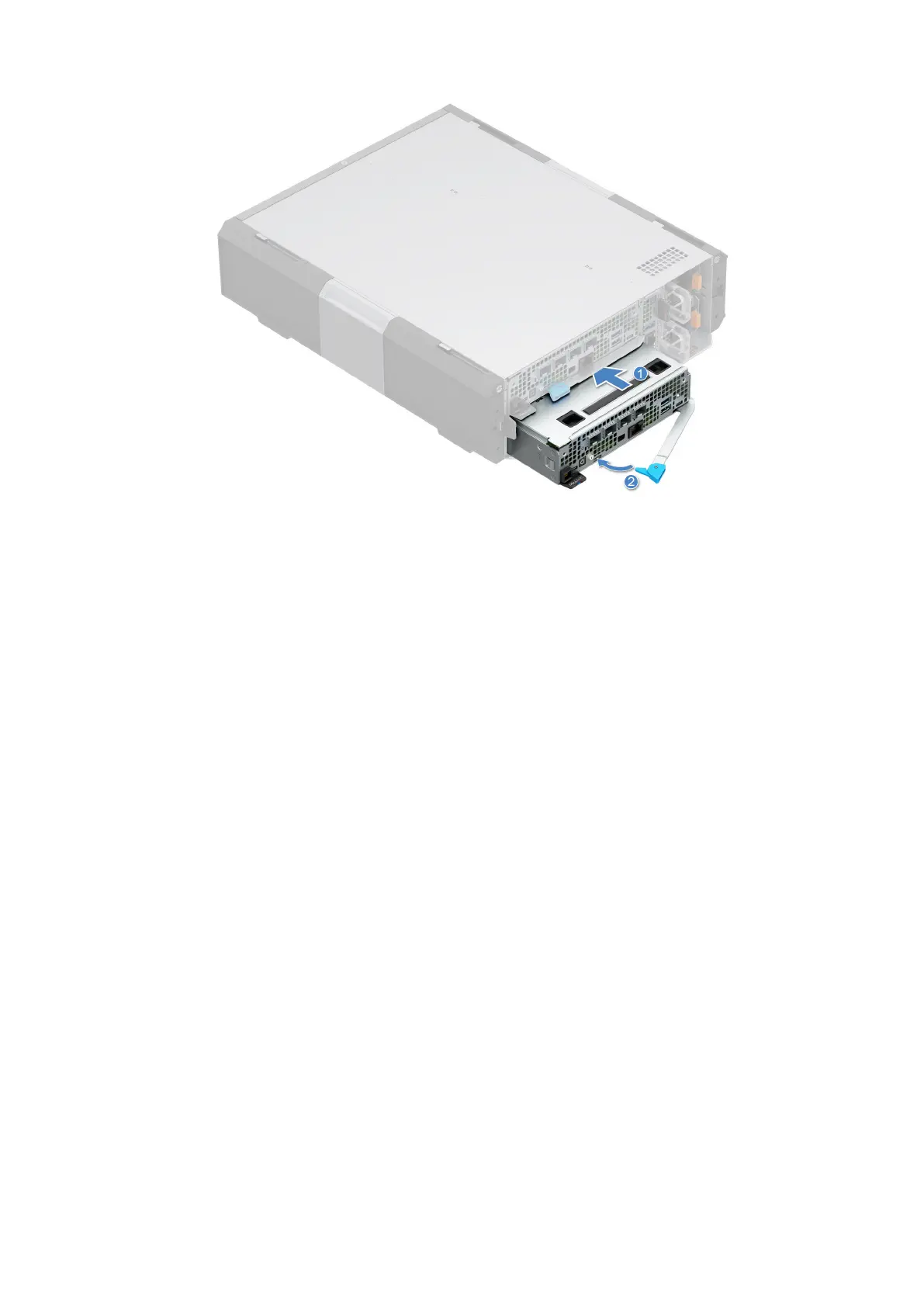

Figure 16. Installing the sled into XR4000z
Sled cover
Removing the sled cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Power off the sled, and any attached peripherals.
3. Follow the steps for Removing a sled.
4. Place the sled on the flat surface with the top cover facing upwards.
Steps
1. Press the blue release tab and using both hands, lift the cover towards the front side of the server.
2. Slide and lift the cover away from the system, as both sides of the top cover have 2 slots constrained by the T-nut.
Installing and removing system components
53
