Chapter 11 Specifications|ASDA-B Series
11-20 Revision January 2009

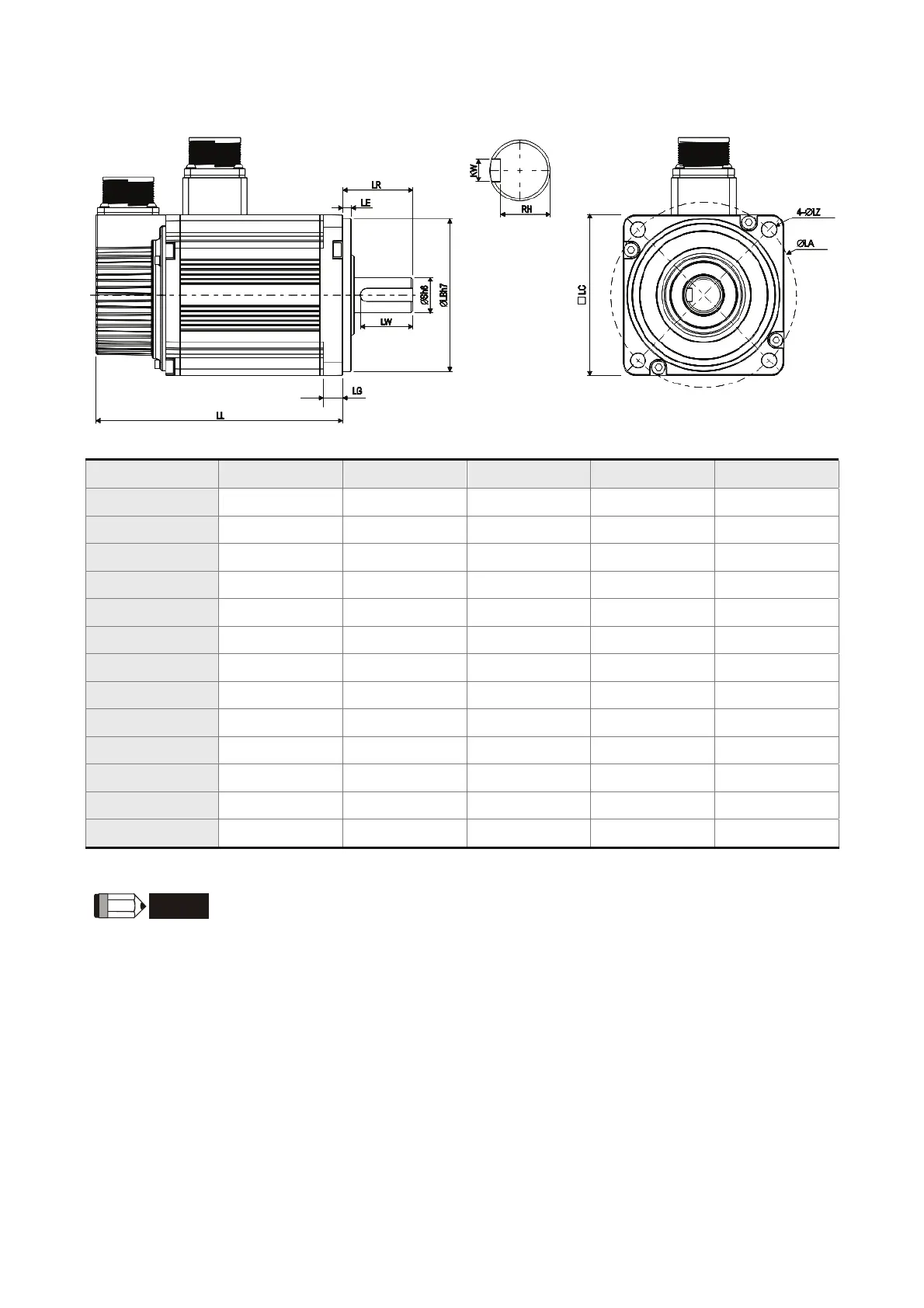

Motor Frame Size: 100mm Models
Model G31303S E31305S G31306S G31309S C31010S
LC 130 130 130 130 100
LZ 9 9 9 9 9
LA 145 145 145 145 115
S 22 22 22 22 22
LB 110 110 110 110 95
LL (without brake) 147.5 147.5 147.5 163.5 153.5
LL (with brake) 183.5 183.5 183.5 198 192.5
LR 55 55 55 55 45
LE 6 6 6 6 5
LG 11.5 11.5 11.5 11.5 12
LW 36 36 36 36 32
RH 18 18 18 18 18
kW 8 8 8 8 8
NOTE
1) Dimensions are in millimeters. Actual measured values are in metric units.
Please use metric for precise measurements.
2) The boxes (
) in the model names are for optional configurations. (Please
refer to Section 1.2 for model explanation)
To Next Page
