Chapter 11 Specifications|ASDA-B Series
Revision January 2009 11-21

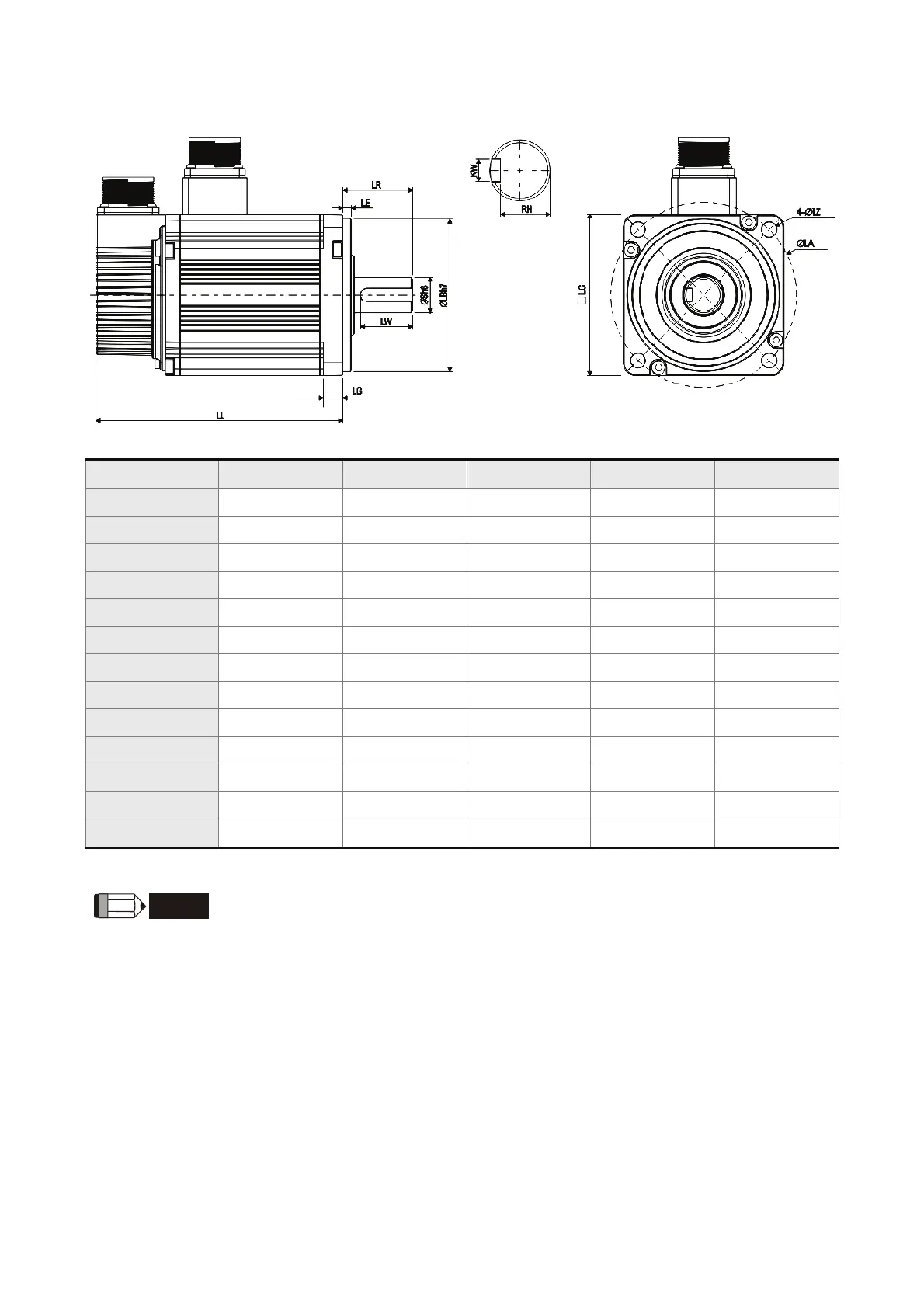

Motor Frame Size: 100mm Models
Model E31310S E31315S C31020S G31320S E31820S
LC 130 130 100 130 180
LZ 9 9 9 9 13.5
LA 145 145 115 145 200
S 22 22 22 22 35
LB 110 110 95 110 114.3
LL (without brake) 147.5 167.5 199 187.5 169
LL (with brake) 183.5 202 226 216 203.1
LR 55 55 45 55 79
LE 6 6 5 6 4
LG 11.5 11.5 12 11.5 20
LW 36 36 32 36 63
RH 18 18 18 18 30
kW 8 8 8 8 10
NOTE
1) Dimensions are in millimeters. Actual measured values are in metric units.
Please use metric for precise measurements.
2) The boxes (
) in the model names are for optional configurations. (Please
refer to Section 1.2 for model explanation)
