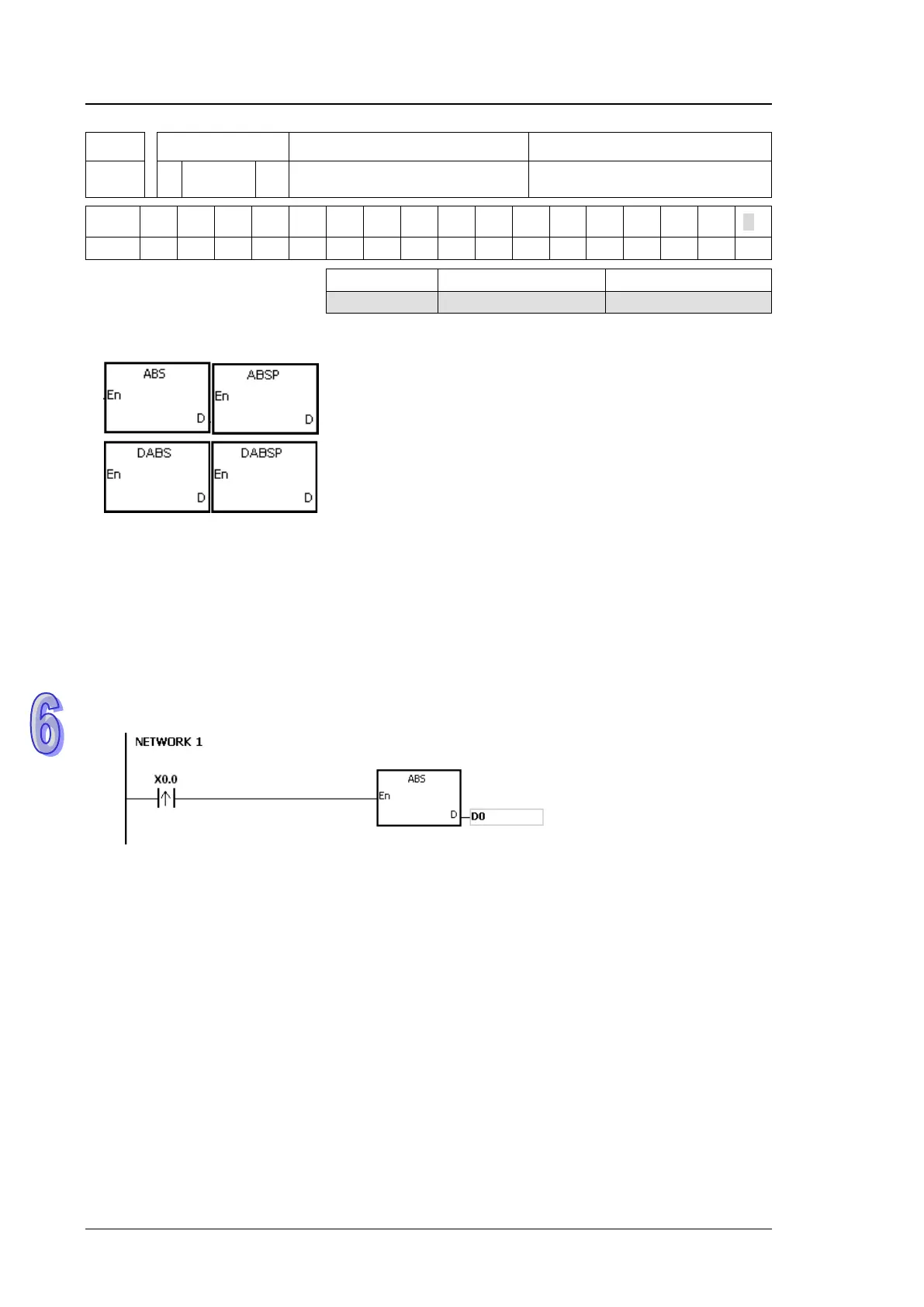

AH500 Programming Manual
6-282
API
Instruction code Operand Function
1210 D ABS P
D
Absolute value
Device
X Y M S T C HC D L SM SR E PR K 16# “$” DF
Pulse instruction
16-bit instruction (3 steps)
32-bit instruction (3 steps)
AH500 AH500 AH500
Symbol:
D
：
Device involved in the getting of the
absolute value
Word/Double word
Explanation:
1. When the instruction ABS is executed, the absolute value of the value in the device specified
by D is gotten.
2. Generally, the pulse instruction ABSP is used.
3. Only the 32-bit instructions can use the 32-bit counter.
Example:
Suppose the value in D0 before the execution of the instruction is -1234. When X0.0 is switched
from OFF to ON, the absolute value of -1234 in D0 is gotten. That is, the value in D0 becomes 1234
after the instruction is executed.
