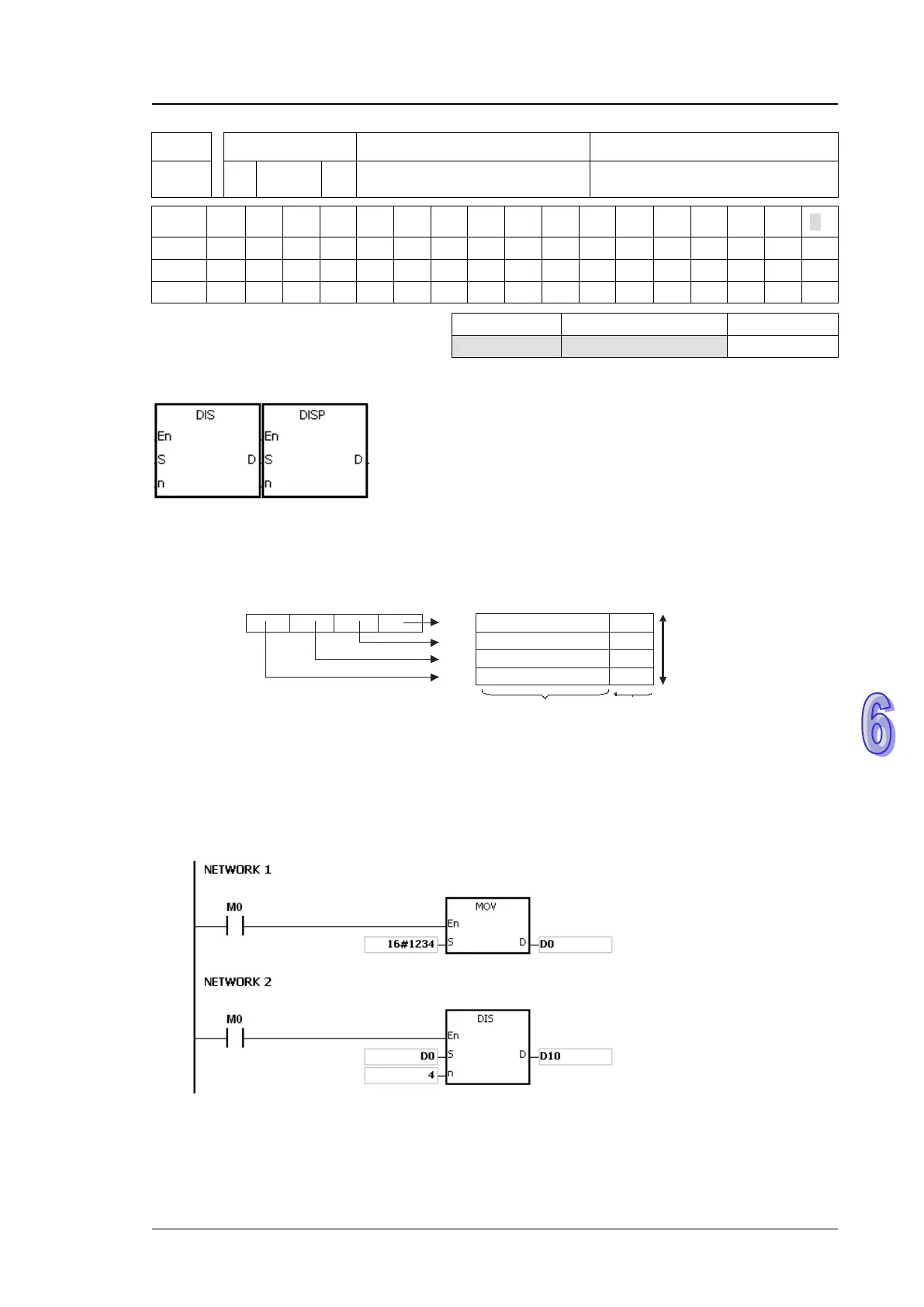

API Instruction code Operand Function
1215 DIS P
S, n, D
Disuniting the 16-bit data
Device
X Y M S T C HC D L SM SR E PR K 16# “$” DF
S
       
n
          
D
      
Pulse instruction
16-bit instruction (7 steps)
32-bit instruction
AH500
AH500
-
Symbol:
S
：
Data source Word
n
：
Number of devices Word
D
：
Operation result Word
Explanation:
1. The 16-bit value in the register specified by S is divided into four groups (four bits as a group),
and these groups are stored in the low four bits in every register (The registers range from D to
D+(n-1).).
S
D
+1
b3 b0b7 b4
b11 b8
b15 b12
b3 b0
b15 b4
n
D
+2
D
+3
D
All becomes 0.
The positions in whcih
the data is stored.
2. The operand n should be within the range between 1 and 4.
Example:
Suppose the value in D0 is 16#1234. When M0 is enabled, the instruction DIS is executed. The
value in D0 is divided into four groups (four bits as a group), and these groups are stored in the low
four bits in every register (The registers range from D10 to D13.).
