Chapter 6 Applied Instructions
6-291

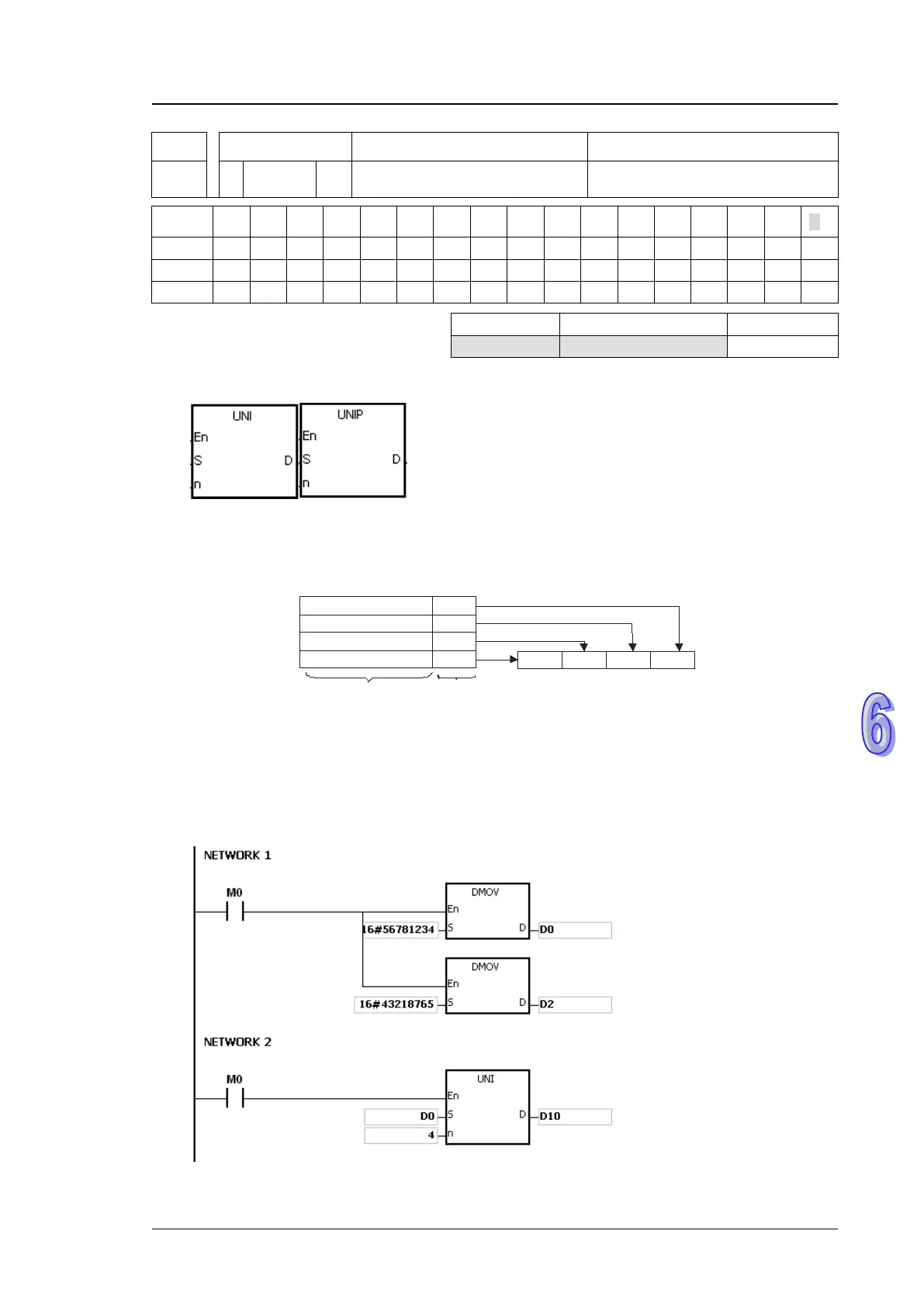

API Instruction code Operand Function
1216 UNI P
S, n, D
Uniting the 16-bit data
Device
X Y M S T C HC D L SM SR E PR K 16# “$”
DF
S
       
n
          
D
       
Pulse instruction
16-bit instruction (7 steps)
32-bit instruction
AH500
AH500
-
Symbol:
S
：
Data source Word
n
：
Data length Word
D
：
Operation result Word
Explanation:
1. The 16-bit values in the registers specified by S~S+(n-1) are divided into groups (four bits as a
group), and every group which is composed of b0~b3 is stored in the register specified by D.
S
+1
b3 b0
b15 b4
S
+2
S
+3
S
Being ignored
The data which
is stored
D
b3 b0b7 b4b11 b8b15 b12
2. The operand n should be within the range between 1 and 4.
Example:
Suppose the values in D0~D3 are 16#1234, 16#5678, 16#8765, and 16#4321 respectively. When
M0 is enabled, the instruction UNI is executed. The values in D0~D3 are divided into groups (four
bits as a group), and every group which is composed of b0~b3 is stored in D10.
