Delta C1000 User Manual

This manual provides the detail information of specification, installation procedures
and all related function setting about the C1000 PV Inverter. Installation technicians
must be well-trained and qualified for installing solar system and must follow
all the safety instruction and installation procedures.
1 Introduction
1.1 About This Manual
This user manual describes the installation procedures, maintenance, technical
data and safety instruction of the following solar inverter models under Delta brand.
• C1000 PV Inverter
1.2 Valid Models
The guidelines in this manual provide instructions for a person who is well training
and skillful for the installation of the central inverter.
1.3 Target Group
See the system usage in the following diagram:
External output transformer requirements
The external output transformer is used with separate primary and secondary
windings rated 1000kVA minimum, and limited to a maximum impedance variance
of less than or equal to 6%. This external transformer is required to be located
between the output of the central inverter and the utility power connection.
For the application of MV transformer .Please refer to the Appendix C “ Delta MV
transformer application note”.
1.4 System Usage

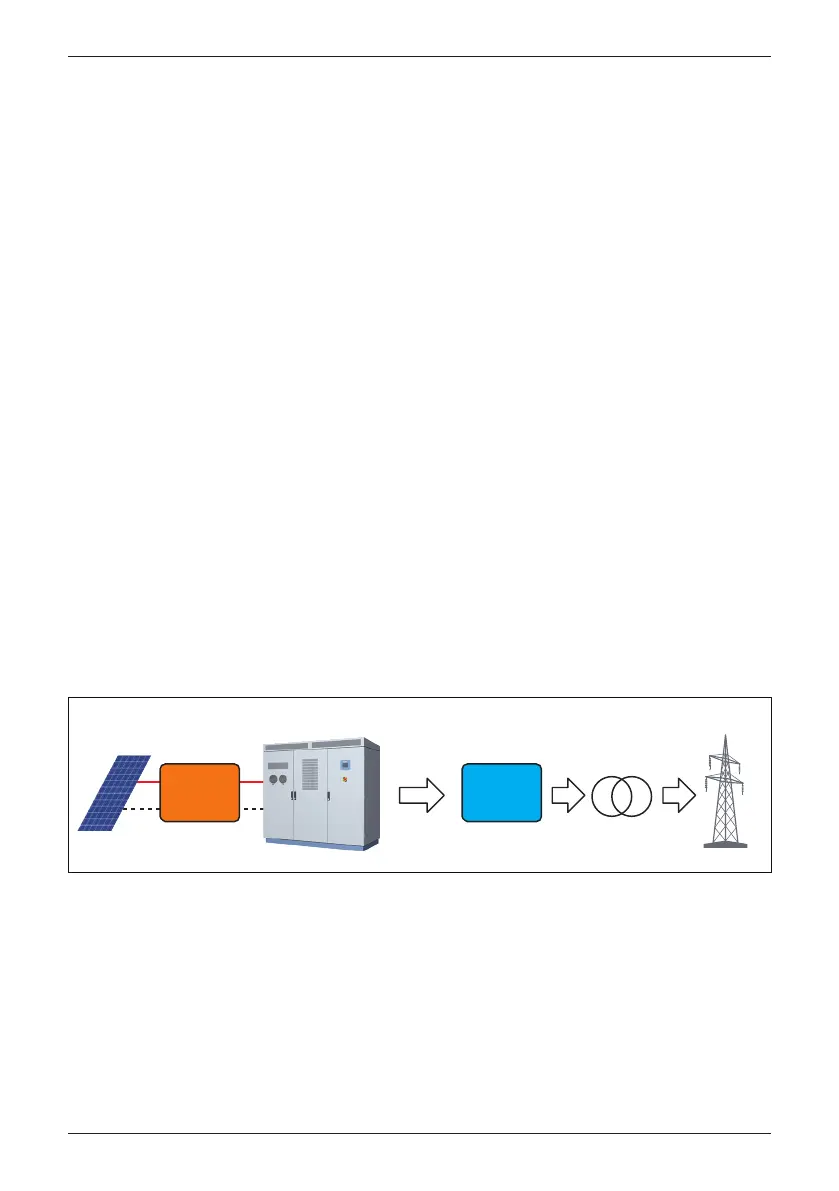

Figure 1-1 : System Usage
PV Array Public Grid
3Ph
3 Phase
Transformer
(3 Phase/PE)
DC
Distribution
Box
AC
Distribution
Box
10
Introduction

Delta C1000 Specifications

General

Brand	Delta
Model	C1000
Category	Inverter
Language	English
