Appendix B:
Hole Size of plate & Installation Of Movable Bushing

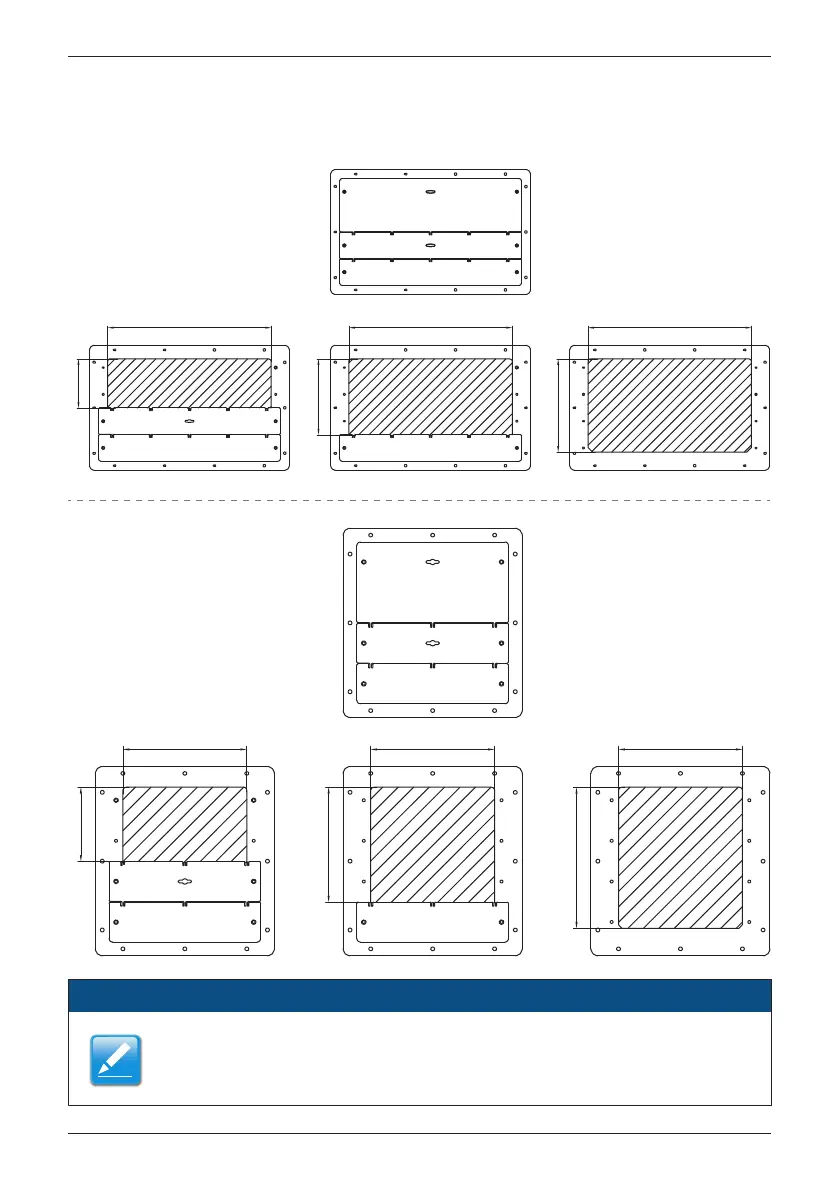

● DC & AC Side
bottom plate
● DC Side bottom plate
1. Shaded area is a wiring area and can adjust wiring area via moving small plate.
2. To prevent moisture, dust or living creature from entering the case, please seal the
DC & AC side bottom plate with high temperature resistance and water-proof
material (Ex: fire retardant cable sealant or silicon)
NOTE
360 360
108
167
360
205
180
108
180
167
180
205
80
