Delta C1000 - 7 Maintenance; Replacing a Fan Module

1. Rotate the handle and then open the rear panel door.
7 Maintenance
7.1 Replacing a Fan Module

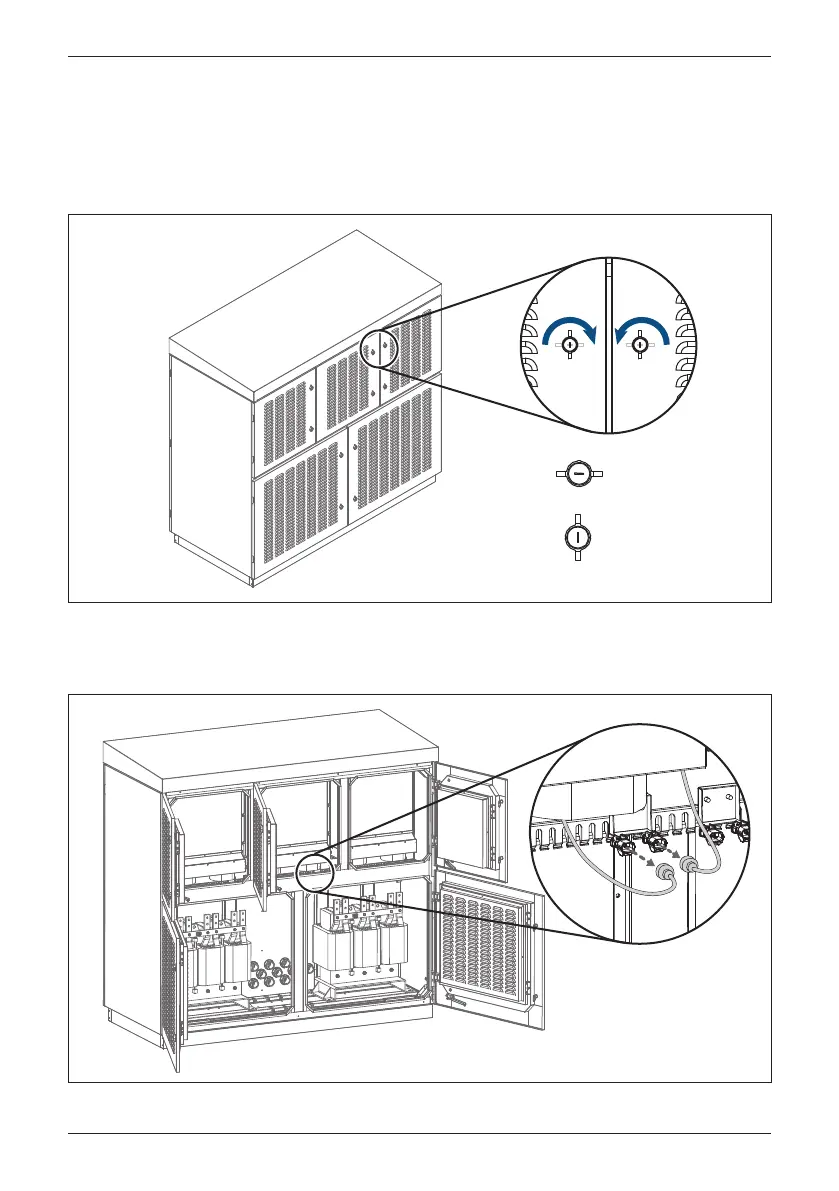

Figure 7-1 : Rotate the handle
2. Disconnect the connectors of the fan modules.
Figure 7-2 : Disconnecting the Connectors
open
close
69
Maintenance
