The inverter can be installed by following methods:
1. Install on the ground directly.
2. Install on the base mounted on the ground.
3. The recommended distance between bottom of solar inverter and AC/DC
cables should be at least 1-meter high.
3.2.3 Fixed Methods

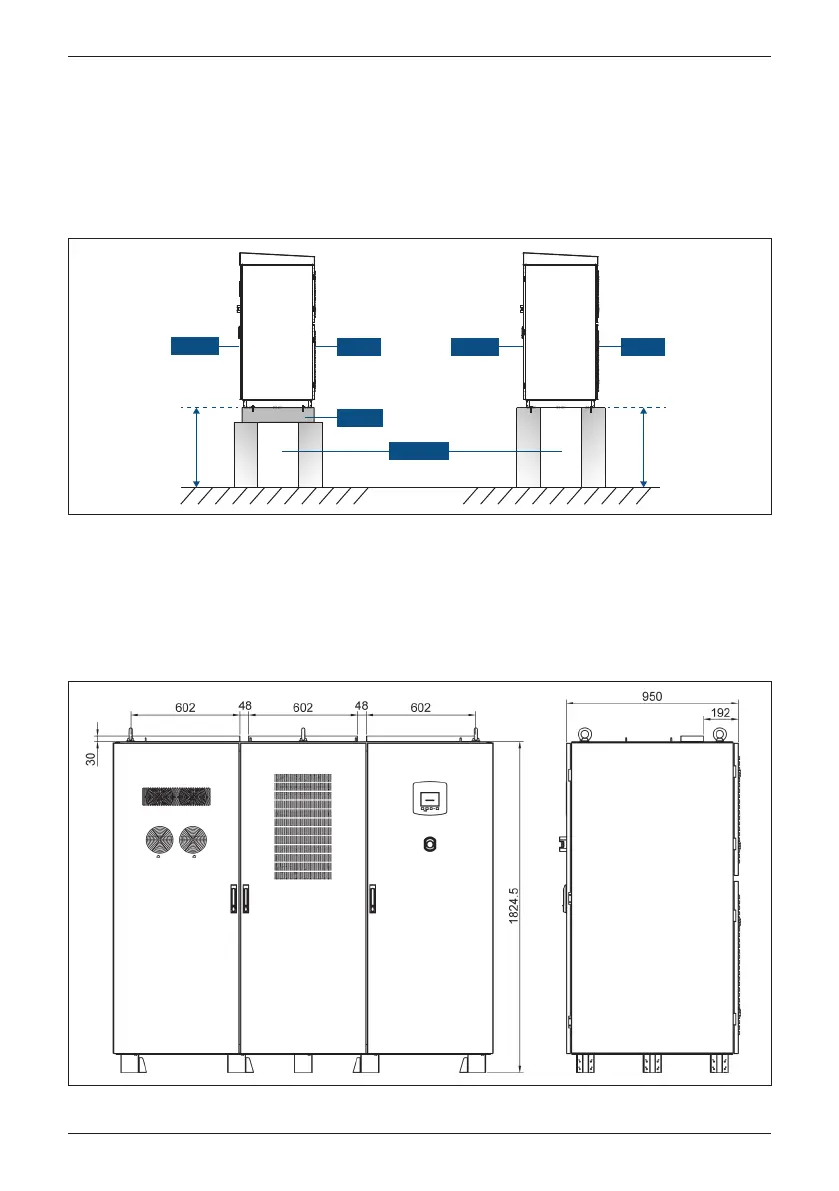

Figure 3-4 : Fixed Methods
For indoor installation, the hot air generated from inverter should be conducted
to outside by ventilation duct that is fixed on the top of the inverter.
The interal air outlet information of inverter can be referred to Figure 3-5 &
Figure 3-6.
3.2.4
Dimensions of central inverter for indoor installation
Figure 3-5 : Dimensions without top cover
unit: mm
Front
Front
Base
Rear
Rear
Trench
