Only when country sets as Germany MV, China, or India user can enter this
page. User has to enter user’s password before enter this page.
5.3.7.4 Active/Reactive Power Control

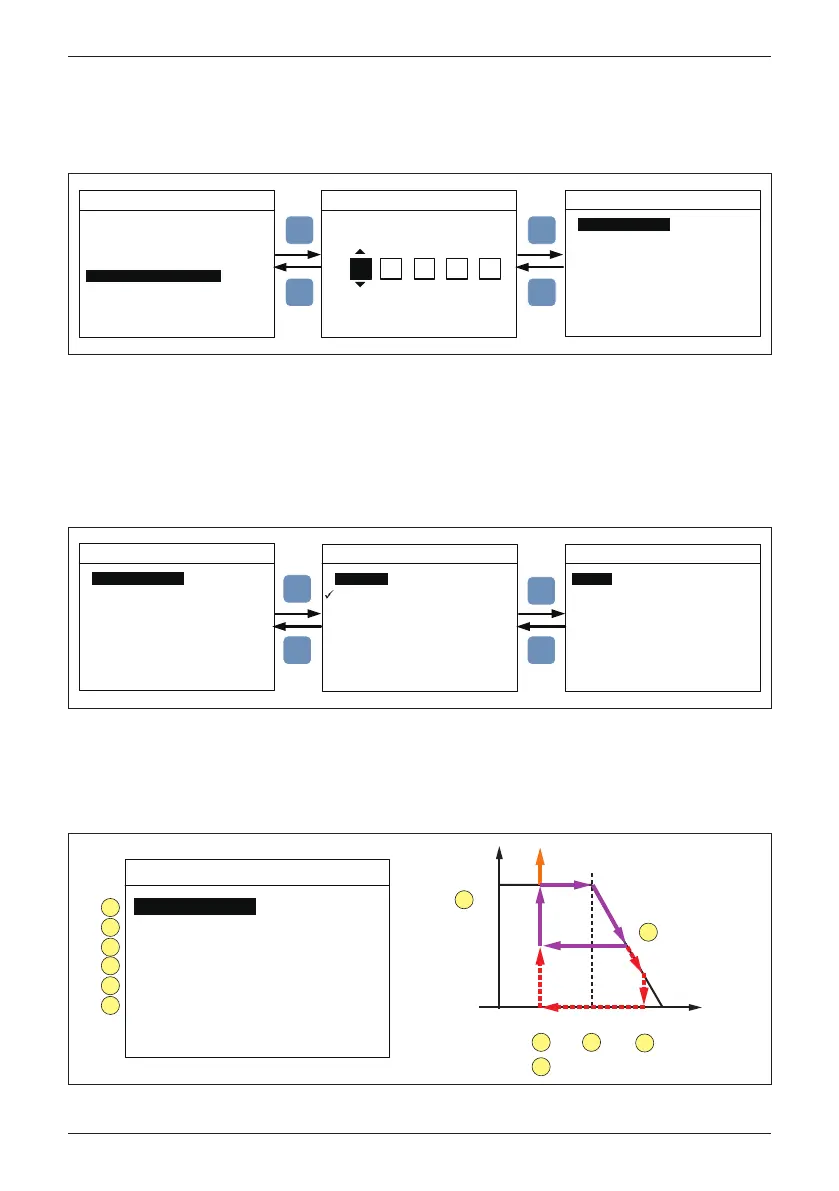

Figure 5-17 : Active/Reactive power setting page
User can set percentage of actual or rated power to limit inverter’s output power.
Inverter will start the action once user set Mode as “ON”. On the contrary, inverter
will stop power reduction and back to MPP Tracking once user set Mode as “OFF”.
5.3.7.4.1 Power Limit
Figure 5-18 : Power limit setting page
*1
*2
*3
Settings
21. Jun 2010 13:50
Coefficients Settings
Personal Settings
Install Settings
Active/Reactive Power Control
FRT
Active/Reactive Power
21. Jun 2010 13:50
Reactive Power Control
Active Power Control
Password
21. Jun 2010 13:50
*
ENT
EXIT
ENT
EXIT
ENT
Active/Reactive Power
21. Jun 2010 13:50
Power vs. Frequency
Power Limit
P(V)
Active Power Control
21. Jun 2010 13:50
Actual/Rated Power
Set Point 100
Rated
[
[
]
]
%
Mode OFF
[
]
Active/Reactive Power
21. Jun 2010 13:50
Reactive Power Control
Active Power Control
EXIT
ENT
EXIT
ENT
Gradient means the slope of power reduction, ie. –xx%/Hz
5.3.7.4.2 Power vs. Frequency
Figure 5-19 : Power vs. frequency setting page
Active Power Control
21. Jun 2010 13:50
Start Frequency
Actual/Rated Power Actual
50.30
[
[
]
]
Stop Frequency
- -
- -
[ ]
Hz
Hz
[ ] Hz
Gradient
40
[ ] %
Mode ON[ ]
Recovery Frequency
Recovery Time
0
[
]
s
a
b
c
d
e
f
a
b
c
d
e
f
P
Pm
f(Hz)
Gradient
f recovery f start f stop
58
Turn on PV Inverter
