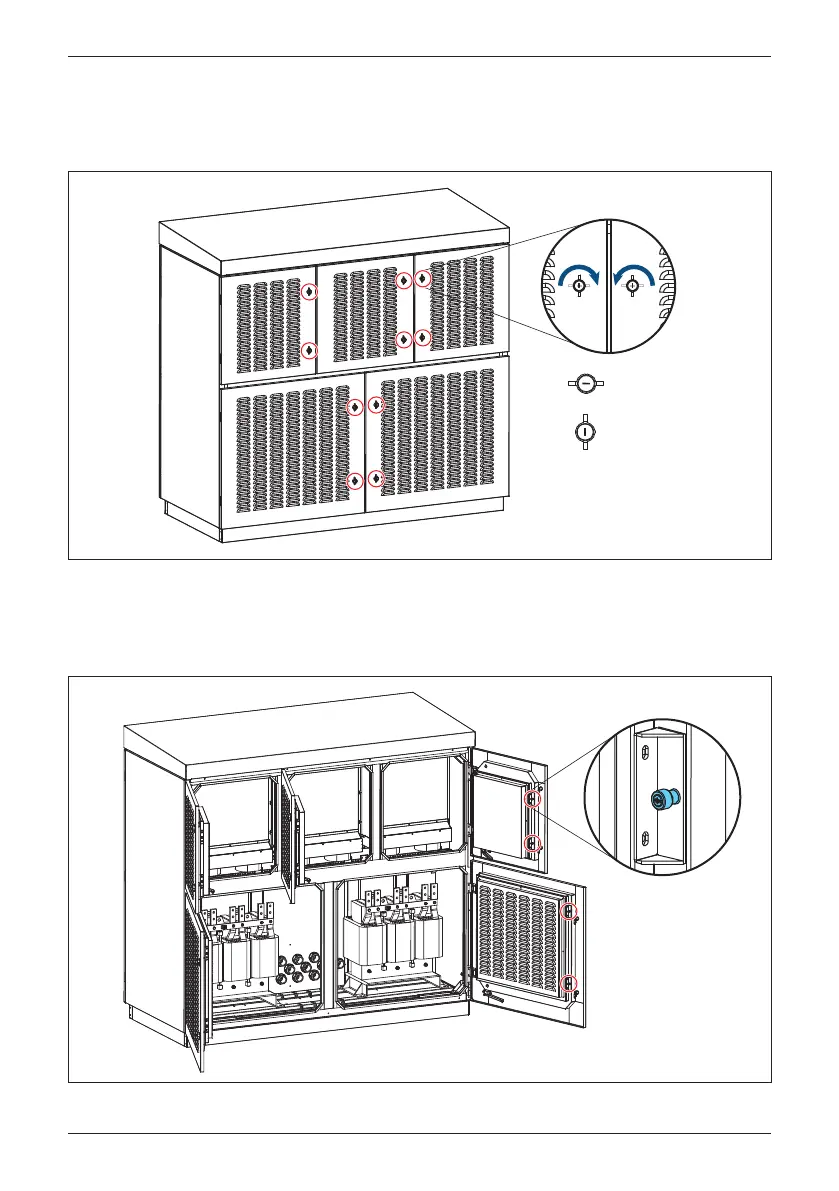

1. Rotate the handle and then open the rear panel door.
7.2
Replacing an Air Filter
Figure 7-5 : Rotate the handle
2.
Loosen the screws securing the air filter cover to the rear panel door and then
open the cover. (Torque: 25 Kgf-cm)
Figure 7-6 : Loosening Air Filter Cover Screws
open
close
71
Maintenance
70
72
