Delta C1000 - PE Connection

There are two positions that can be connected to PE.
a. Inverter inside. Connect PE to the busbar in AC or DC side.
b. Inverter outside. Connect PE to the inverter holder.
4.6 PE Connection

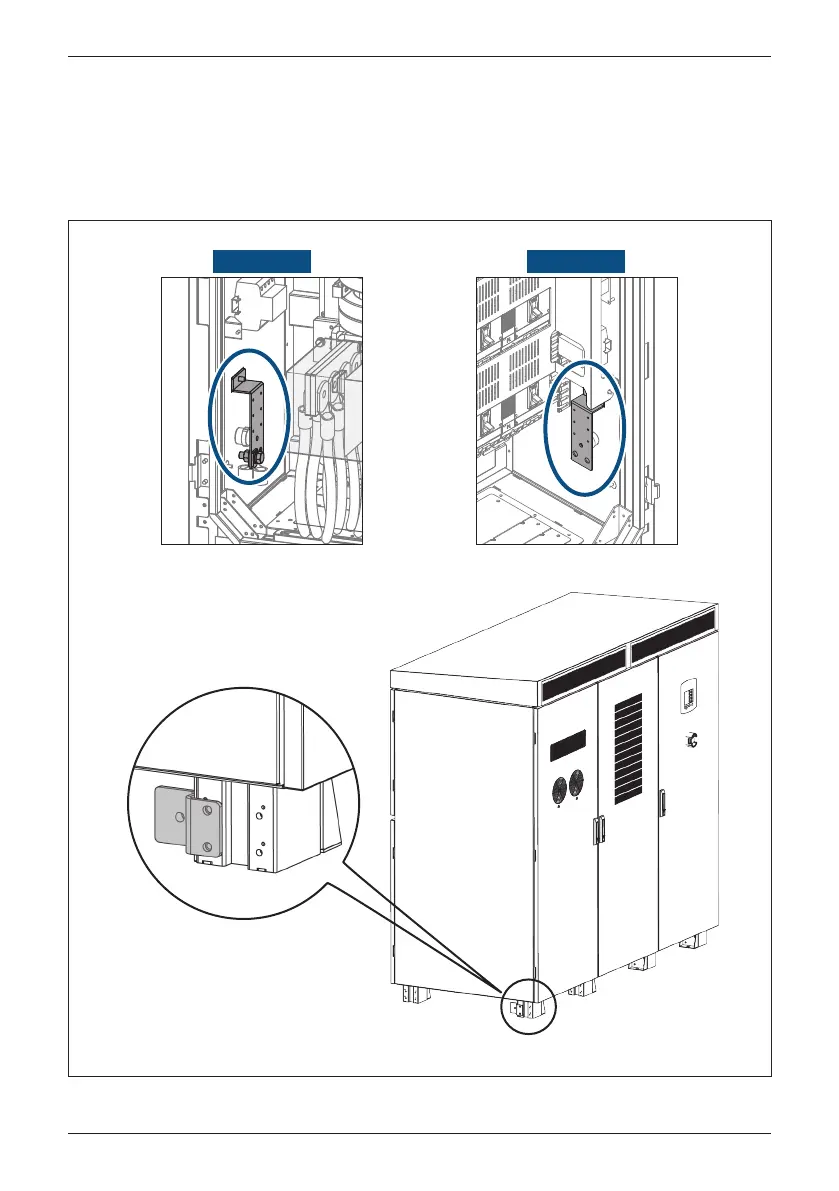

Figure 4-13 : PE Connection (a) inverter inside; (b) inverter outside
(b)
(a)
AC side DC side
