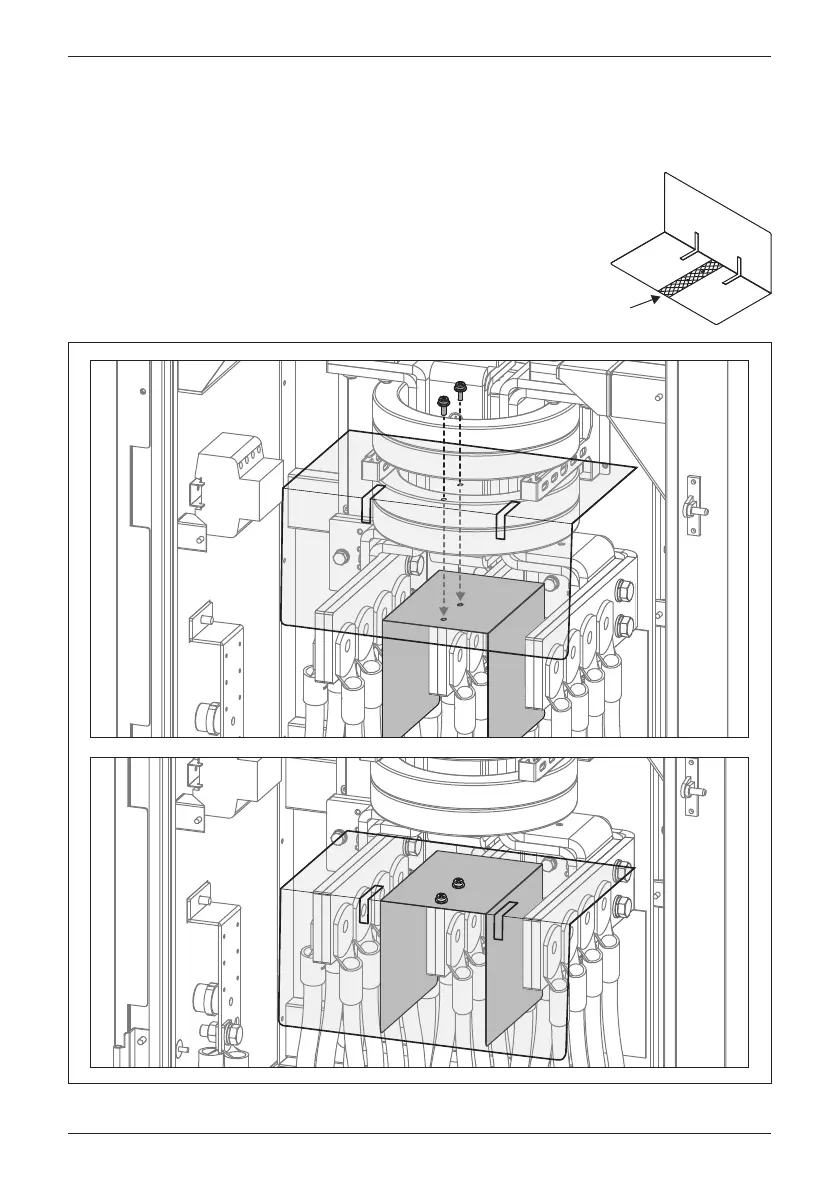

Figure 4-12 : AC Side L-type Insulator Installation
double-sided tape
Install the L-type insulator on the U as the same steps to prevent touching with
the AC busbar.
1. Turn off all DC and AC Power, and make sure there is no
remaining electricity on both DC and AC sides.
2. Tear the double-sided tape on back side of
L-typ
e insulator.
3. Stick the
L-typ
e insulator on the
U-typ
e insulator and then
attach M4 Screws. (Torque: 8kgf-cm(0.8Nm))
39
Installation
