4.3 DC Side Insulator Installation
After wiring at DC side, please install the insulator to prevent terminals from touching.
1. Turn off all DC and AC Power, and make sure there is no remaining electricity
on both DC and AC sides.
2. Tear the double-sided tape on back side of insulator.
3. Stick the insulator plate, which encloses the red support insulator, on the back
plate of DC breakers.
CAUTION!
- TO AVOID ELECTRICAL HAZARD, PLEASE TURN OFF ALL DC AND AC
POWER BEFORE INSTALLATION AND REMOVAL.
!

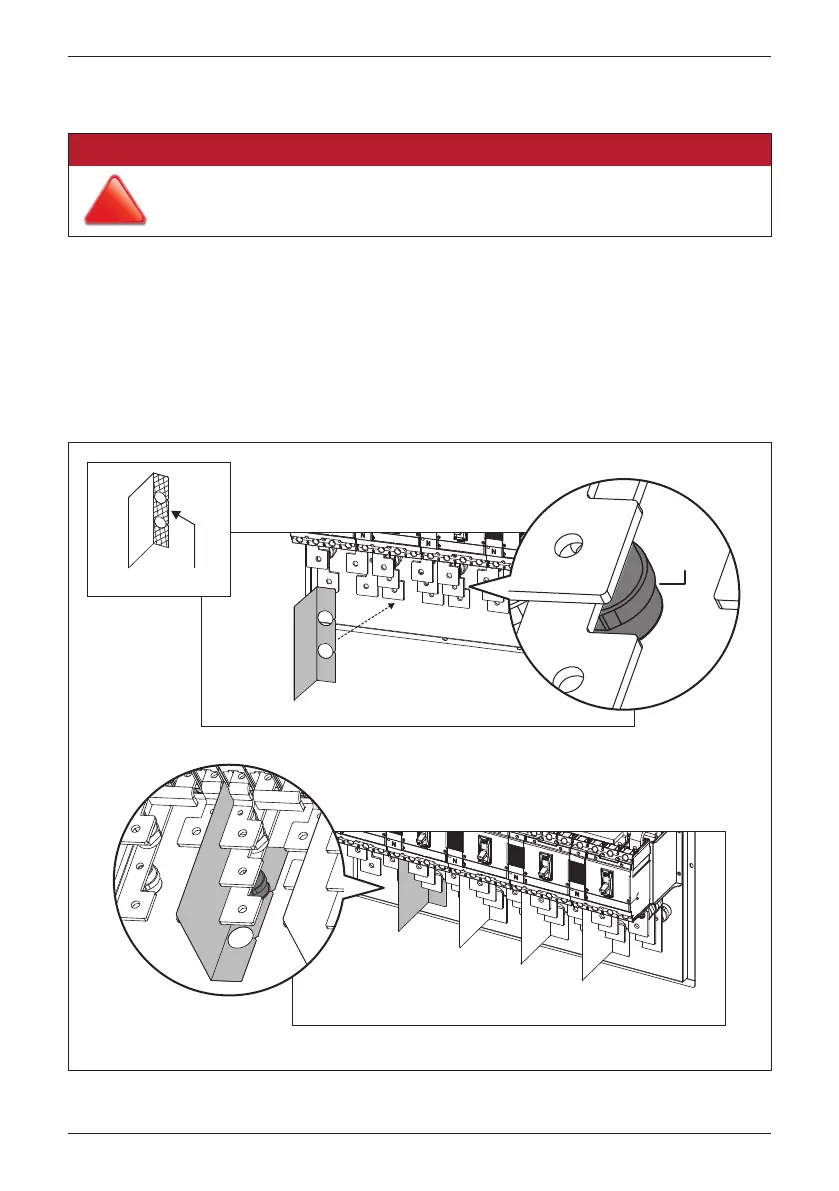

Figure 4-6 : DC Side Insulator Installation
Support
insulator
double-sided tape
31
