When the first time, the AC breaker is being used, keep swinging the charge handle
up and down to charge until the Charged/Discharged Indicator shows “CHARGED”
status. Then press the green ”ON button”, and AC breaker will be conducted and also
the ON/OFF indicator will show “ON” status for operation appearance.
If press the red ”OFF button” , AC breaker will trip out. When you need to turn on the
breaker again, please recharge then press the green “ON button”.

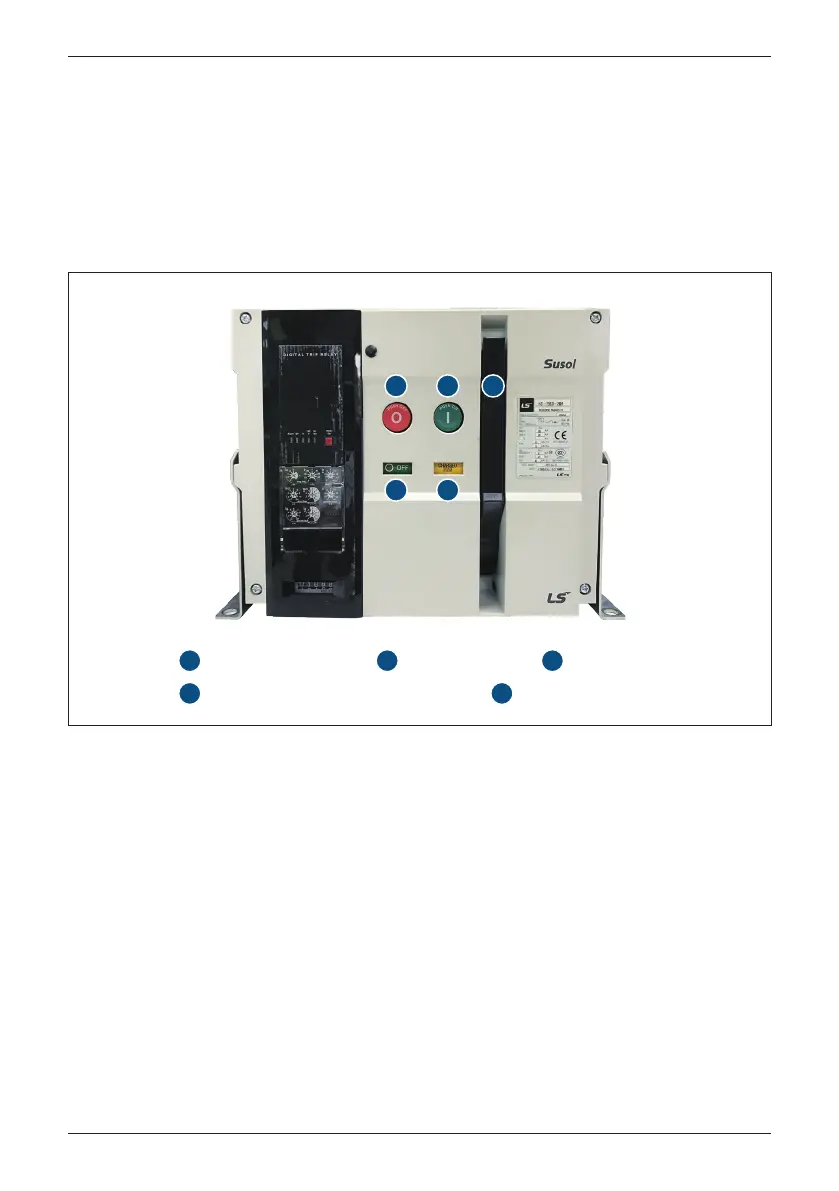

Figure 4-8 : AC breaker
OFF buttonON button
Charged/Discharged indicator
Charge handle
ON/OFF indicator
1
1
2
2
3
3
4
4
5
5
35
Installation
