4-4
Modulon DPH Series
REPO
NC NO
UPS
5V
1
2
3
4
Buffer
Buffer
NO
NC
5V

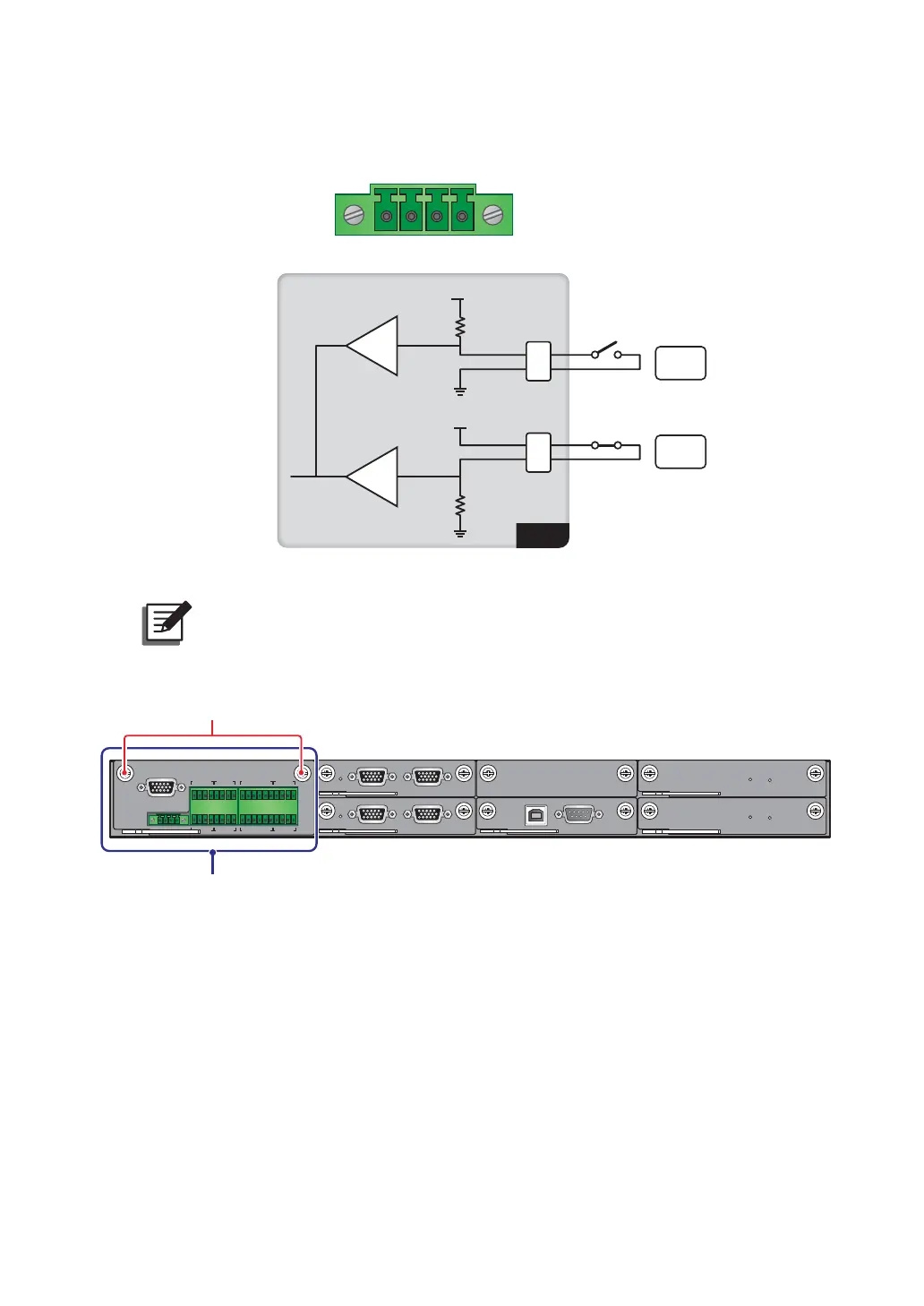

(Figure 4-4: REPO Dry Contacts Design)
127(௓If you want to enable the normally closed (NC) function, please take out
the dry contact card (see Figure 4-5) and remove its Jump CNR3 (see Figure 4-6)
before you turn on the UPS.
DISPLAY
REPO
NC NO
EXT. BATT
TEMP.
BT1 BT2
EXT.SWITCH
STATUS
S1 S2
S3 S4
BT3
BT4
O/P DRY
CONTACT
USB RS-232
P1 P2 P3
P4
P5 P6
I/P DRY
CONTACT
P1 P2
BATT.
START
BATT.
START
P3
P4
PAR ALL EL
PARALLEL
Screw x 2
Dry Contact Card
(Figure 4-5: Dry Contact Card Location)
