Now, each power module performs DC BUS discharging and its LED indicator flashes
green. After discharging, each power module’s LED indicator will be off.
8
About 3 minutes later, the UPS will shut down. After that, the LCD and the tricolor LED
indicator will be off.
9
Switch OFF every external battery cabinet’s breaker (Q5).
6.3.8 Energy Recycle Mode Turn-off Procedures
WARNING: Energy recycle mode is only applicable to single input and single unit
application.
1

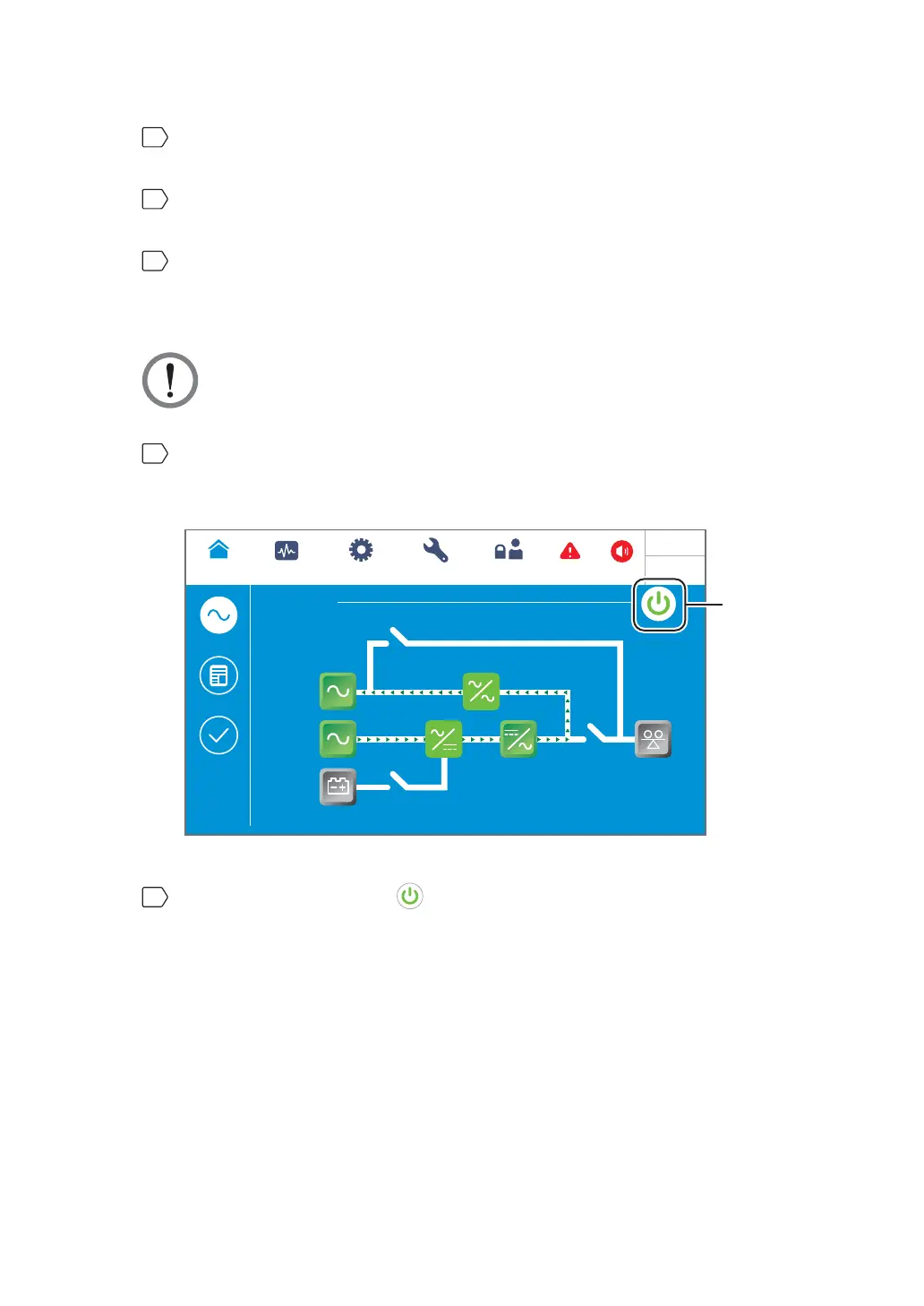

In energy recycle mode, the LCD shows the following screen (Figure 6-67) and the tri-
color LED indicator illuminates yellow. For the tri-color LED indicator location, please
refer to Figure 2-11.
Energy
Recycle
POWER FLOW
Maintenance
Bypass
Bypass
Mains
MEASUREMENT
Power Flow
UPS-1.1 SETUP MAINTENANCE
Power Flow
Summary
System Status
2
WARNINGLOG IN
User
Load
0 %
0 %
0 mins
10:15
May 25,2018
ON/ OFF
Button
(Figure 6-67: Energy Recycle Mode Screen & ON/ OFF Button Location)
2
Press the ON/ OFF button ( ) once and the following screen will pop up to ask you
if you want to power off the UPS’s inverter. Please select ‘YES’.
