Communication Interfaces
Jump CNR3
Dry Contact Card

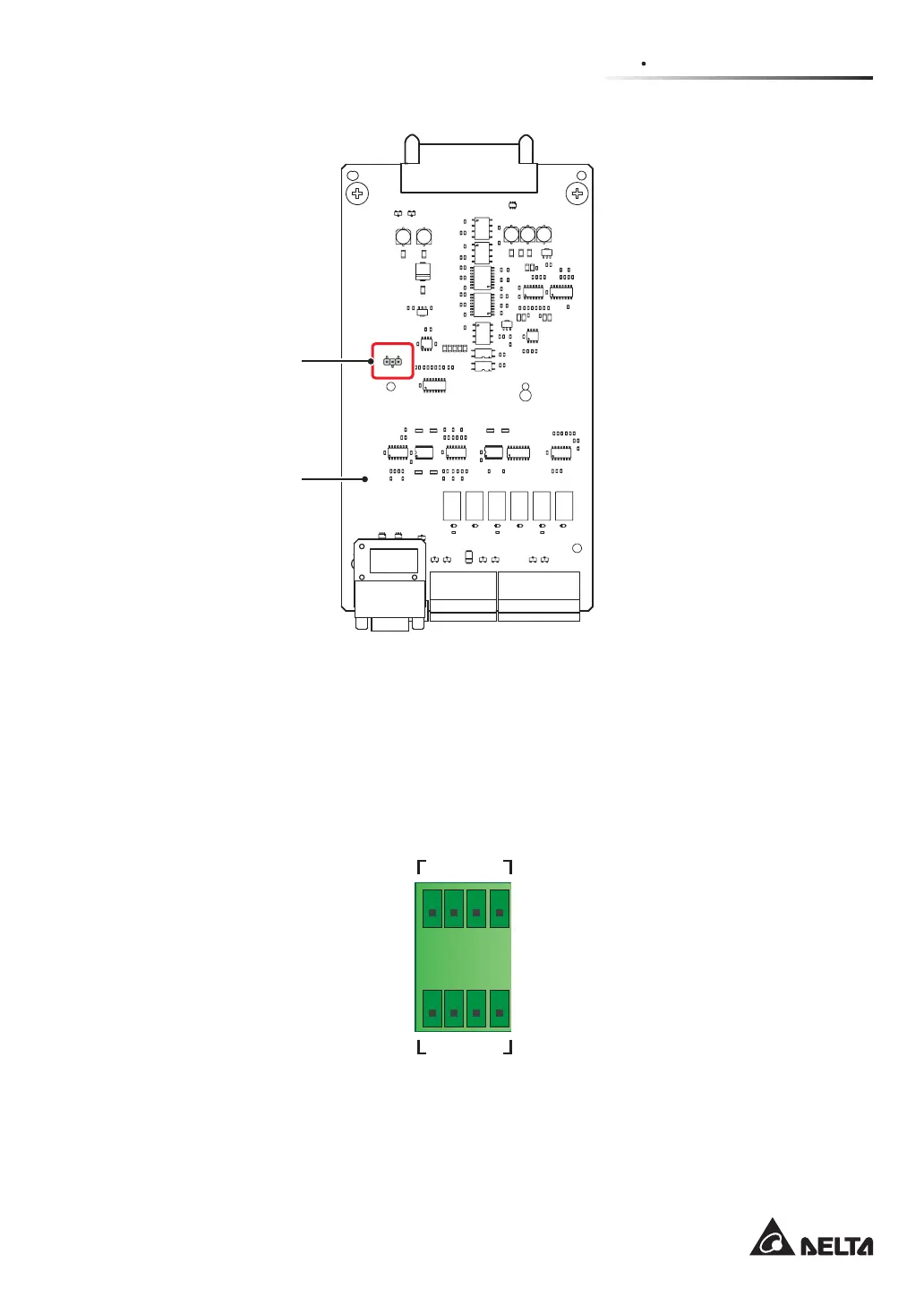

(Figure 4-6: Jump CNR3 Location)
4.1.3 External Battery Temperature Dry Contacts
You can use the external battery temperature dry contacts (BT1, BT2, BT3 and BT4) to detect
at maximum four external battery cabinets’ temperature. You need to purchase the battery
cabinet temperature sensor cable (optional).
EXT. BATT
TEMP.
BT1 BT2
BT3
BT4
(Figure 4-7: External Battery Temperature Dry Contacts Design)
