OPERATION MANUAL FOR PCS100HV
67
6.13. Voltage ride through function setting

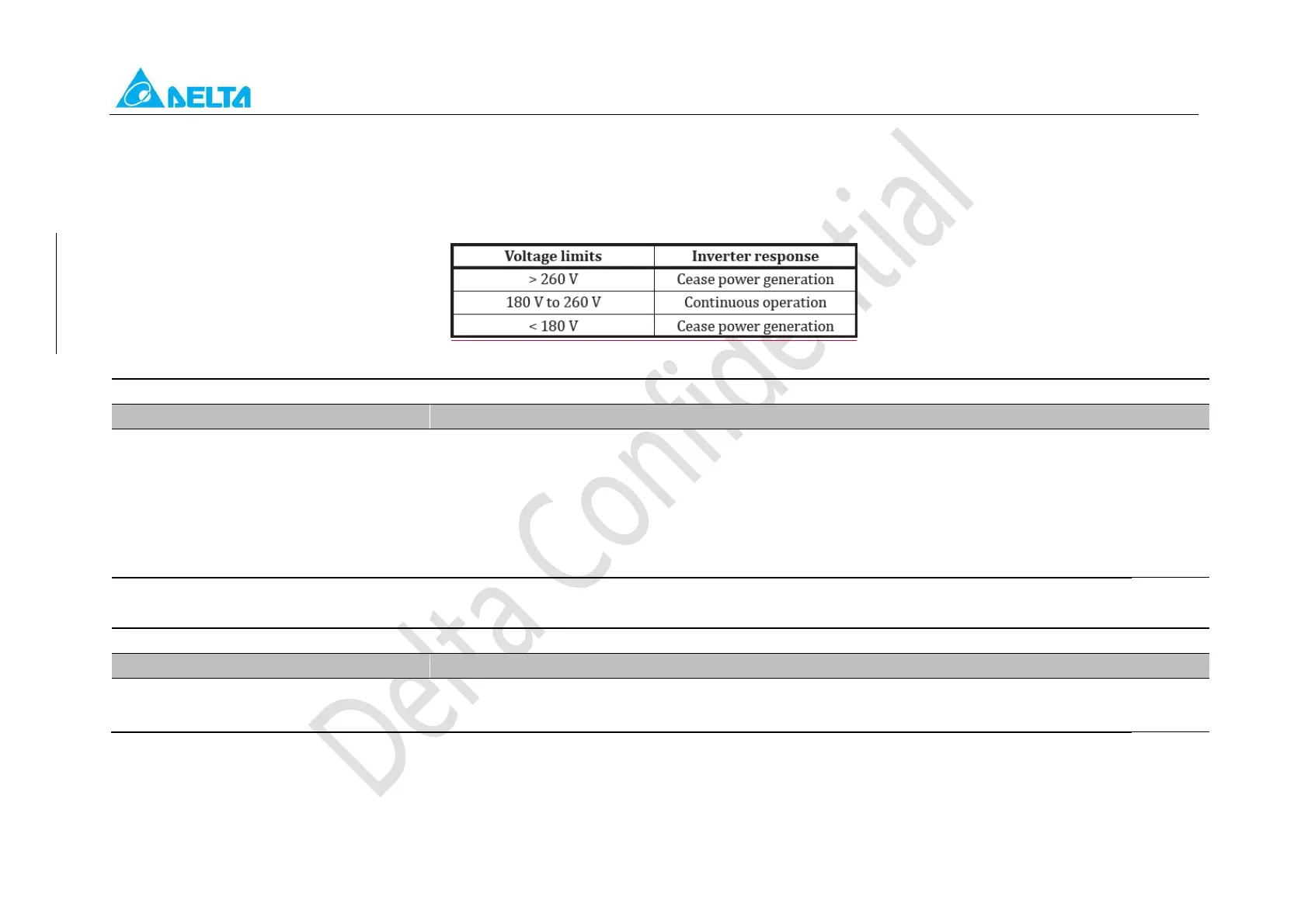

Table 44 Voltage ride through response
Table 45 Steps for setting Voltage ride through function [FIRST RUN / WHEN NEED]
STEP
CMD
DESCRIPTION
REMARK
Option
ID(PCS)
Function
Register
Value
CRC REF
1
01
06
10D6
0001
AD 32
High Ride through function
enable.
1: Enable.
[M]
2
01
06
10D7
0001
FC F2
Low Ride through function enable.
1: Enable.
[M]
3
01
06
10D9
046A
DE 1E
Over voltage trip point
Over voltage : 113%
[O]
4
01
06
10DA
030E
2D C5
Under voltage trip point
configuration.
[O]
Table 46 Steps for disabling Voltage ride through function
STEP
CMD
DESCRIPTION
REMARK
Option
ID(PCS)
Function
Register
Value
CRC REF
1
01
06
10D6
0000
6C F2
Disable high ride through function.
0: Disable.
[M]
2
01
06
10D7
0000
3D 32
Disable low ride through function.
0: Disable.
[M]
Note: when the function of ride through is disabled, the above threshold of voltage/frequency are still used for voltage and frequency abnormal
protection.
