Ultron DPS Series
86
(Step B)
For top/ bottom entry, route the provided parallel cables (
) through the snap bushing (
),
use a cable tie (user-supplied) for each wire mount to fix the parallel cables on the frame
(
), and connect the parallel cables to the parallel ports (
).
NOTE:
The number of the wire mounts and cable ties shown in the figures are for
reference only. The actual number depends on your on-site application.

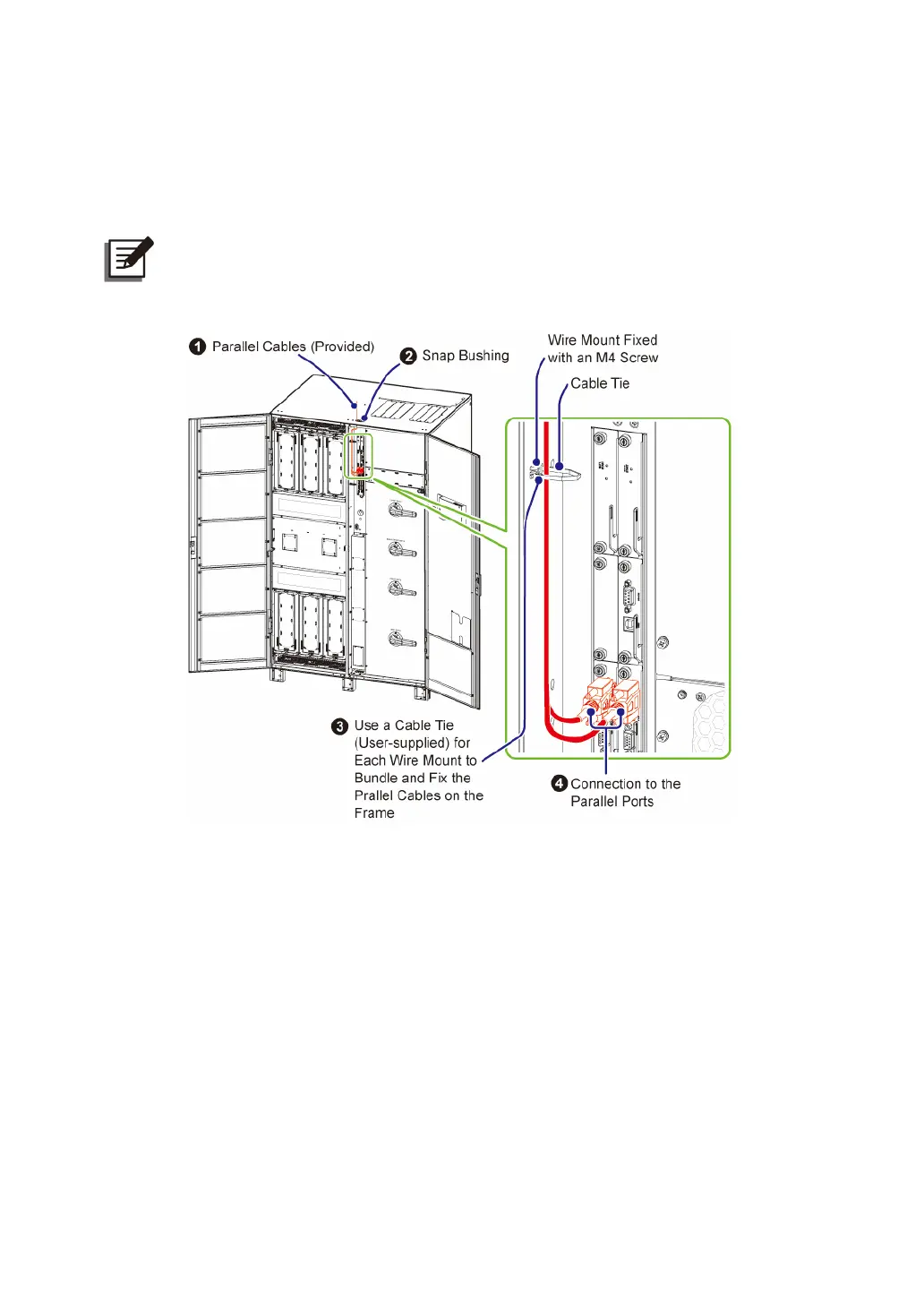

(Figure 5-43: 400/ 500/ 600kVA UPS_ Parallel Cable Routing -2_ Top Entry)
