5.6.2 Installation of 400/ 500/ 600kVA UPS’s Rodent Shields

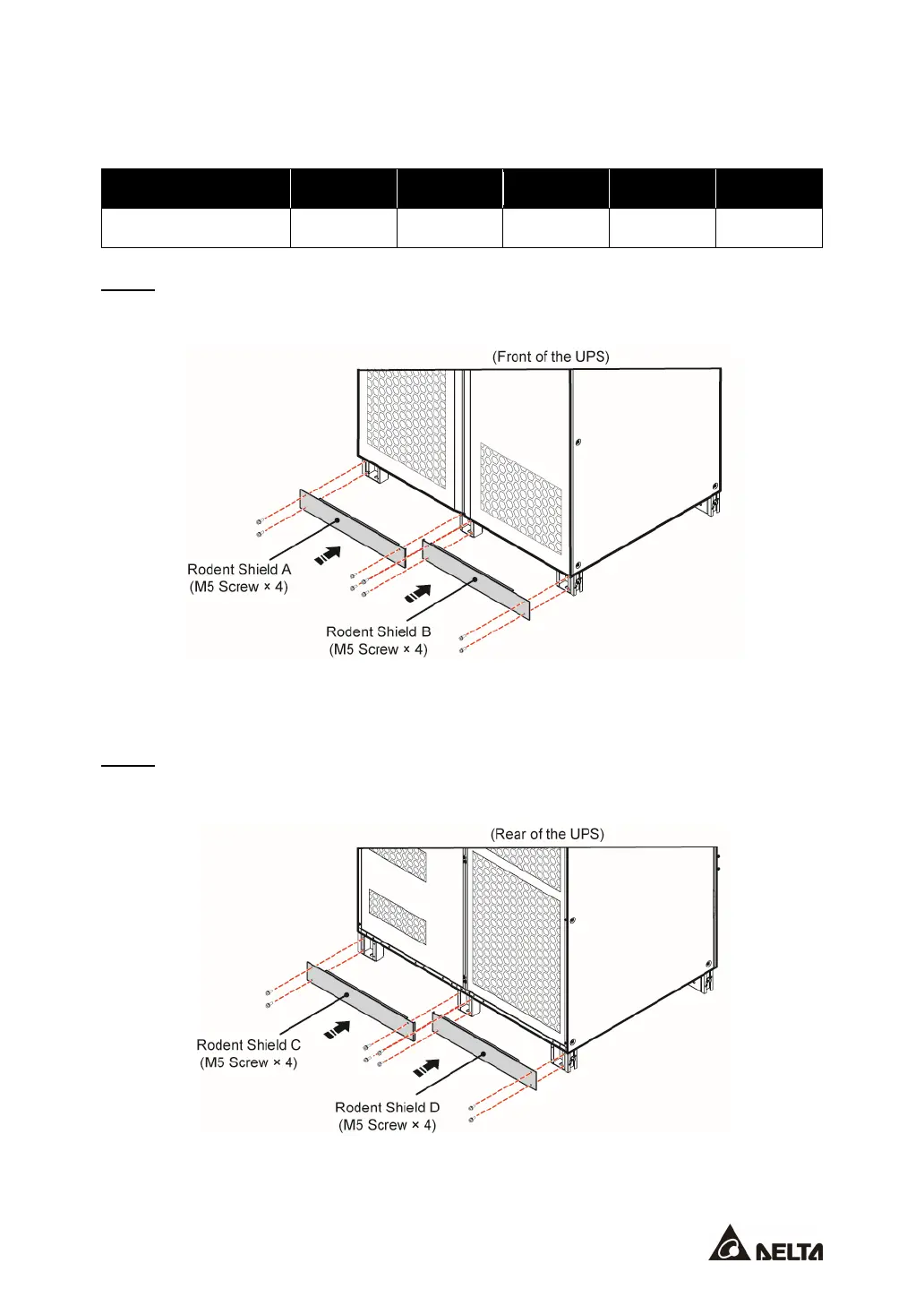

Table 5-6: 400/ 500/ 600kVA UPS_ Rodent Shield Quantity
Rodent Shield Type A B C D E
Quantity
1 PC 1 PC 1 PC 1 PC 2 PCS
Step 1
Install the rodent shields A and B to the front bottom of the UPS.
(Figure 5-56: 400/ 500/ 600 kVA UPS_ Install the Rodent Shields A & B)
Step 2
Install the rodent shields C and D to the rear bottom of the UPS.
(Figure 5-57: 400/ 500/ 600 kVA UPS_ Install the Rodent Shields C & D)
