3 Technical data
3.1 Design overview

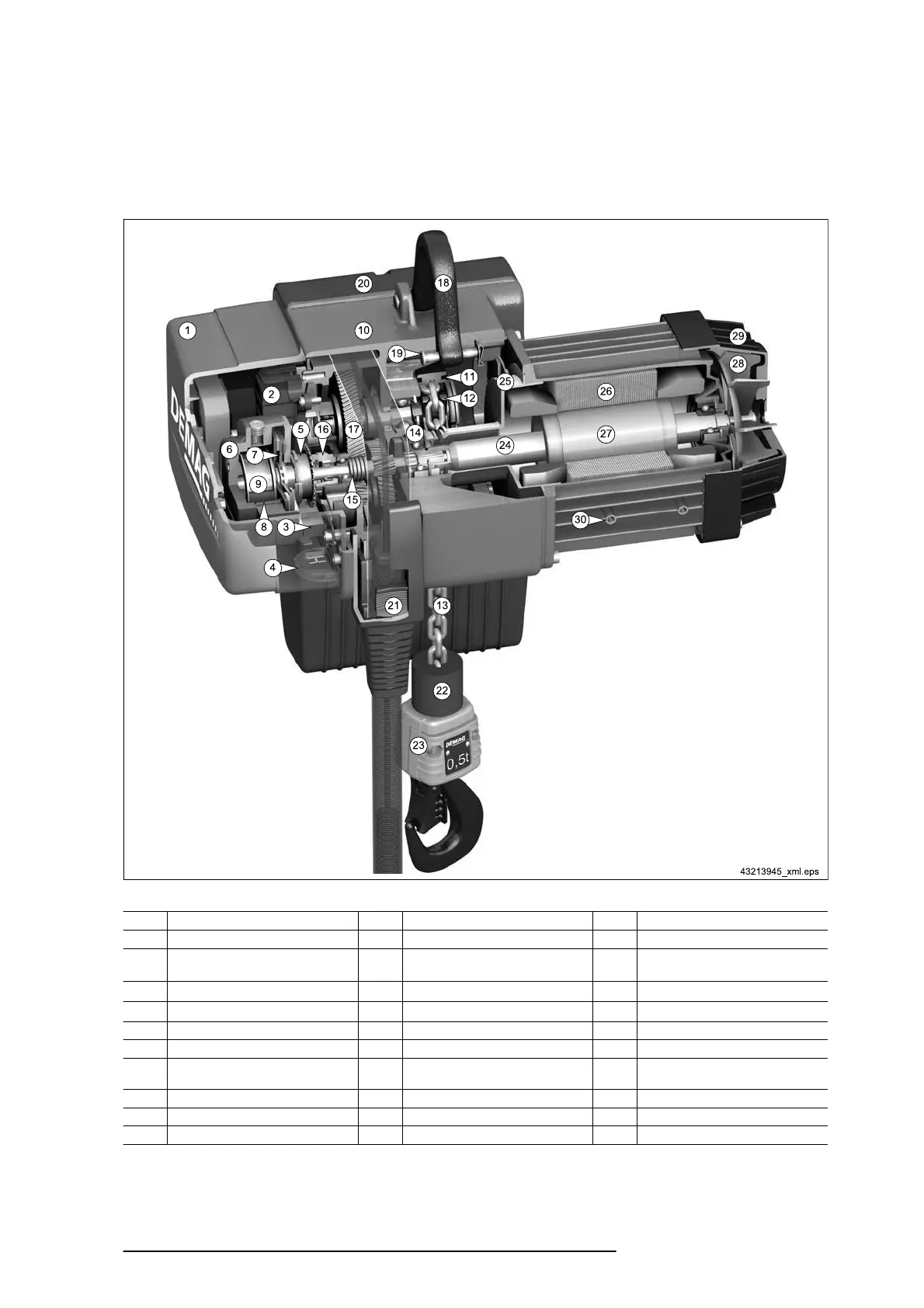

Fig. 4 Single-fall design
Item Designation Item Designation Item Designation
1 Electrical equipment cover 11 Chain guide 21 Adjusting mechanism for control cable
2 Control 12 Sprocket 22
Switch-off buffer for operating limit
switch
2)
3 Operation hours counter 13 Round section steel chain 23
Hook assembly with capacity plate
2)
4
Window
2)
14 Slipping clutch 24 Motor shaft
5 Pulse wheel for speed monitoring 15 Dished washer pack 25 Winding head cap
6 Magnet brake 16 Slipping clutch adjusting nut 26 Stator
7 Brake disk with linings 17
DC 1 - 5 two-stage helical gearbox
DC 10 three-stage helical gearbox
27 Rotor
8 Brake springs 18 Suspension bracket 28 Fan
9 Brake magnet 19 Suspension bolt 29 Fan cover
10 Gearbox housing 20 Service cover 30 Mounting points
Tab. 4
2)
Figure deviating from scope of supply
16
21480244/181209
