4.5.2 7-segment display for operating status and error display
43216145.eps

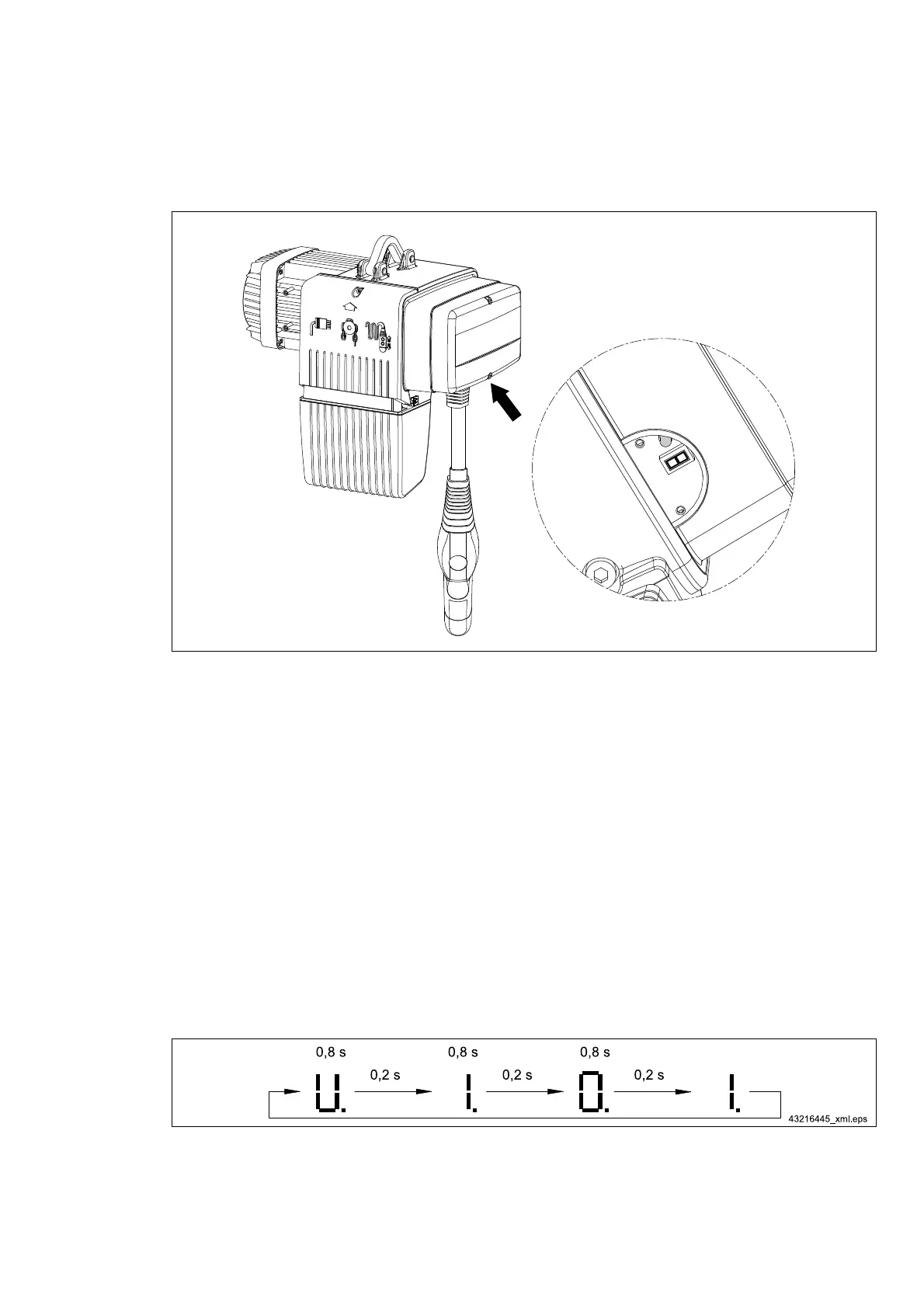

Fig. 8
The 7-segment display is arranged on the control card under the electrical equipment cover, it can be read on the
lower side of the chain hoist (arrow, lower side of electrical equipment cover) after the electrical equipment cover
has been removed (figure deviating from scope of supply).
The 7-segment display is supplied as standard with:
● DC-Com 1 - 5 from year of manufacture 2007
● DC-Com 10
The following data can be read:
● Software version ⇒ Fig. 9, Page 31,
● Operating hours⇒ Fig. 10, Page 32,
● Operating statuses⇒ Fig. 12, Page 32,
● Warning messages⇒ "Warning messages", Page 104,
● Error messages ⇒ "Error messages", Page 105.
4.5.3 Software version, operating hours, number of cycles, operating statuses
Display of the software version
Fig. 9
Every time, power is switched on or after an emergency-stop, the software version is displayed (from software version
1.01).
Example: Software version 1.01
21480244/181209
31
