8.5.6.3 Replacing the hook assembly, reeving 1/1

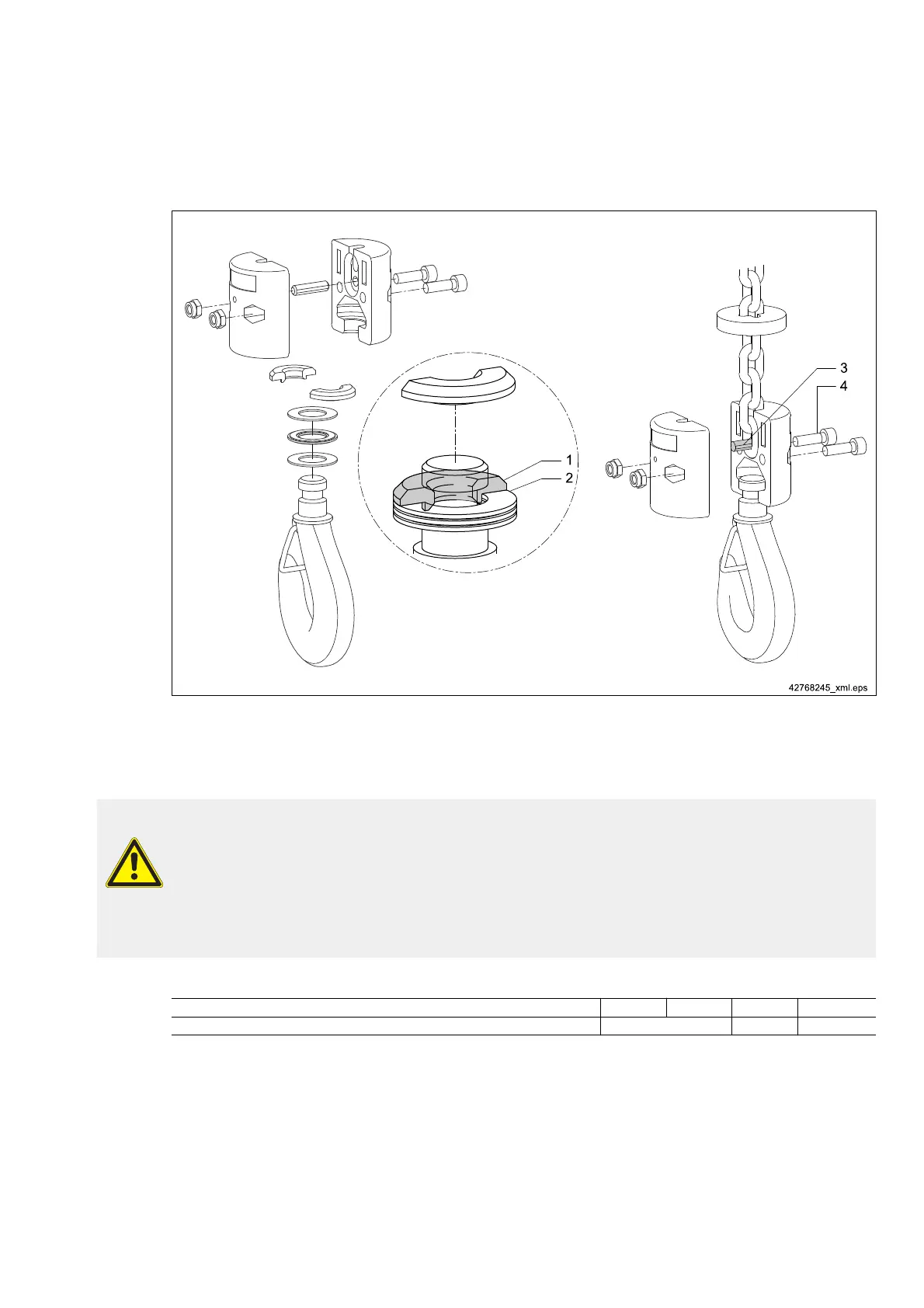

Fig. 58
– Remove the existing hook.
Deposit the new hook and remove the two bolts (4).
Remove the upper half of the hook assembly.
DANGER
Load drop
Incorrect assembly may result in load drops.
During assembly it must be ensured
– That the link sections (1) are positioned in bearing (2) with their collar. Grease the bearing and bearing seat.
– that the retaining pin (3) is correctly fitted when the hook assembly is assembled.
– Tighten the housing bolts (4) according to the tightening torque table.
Tightening torques [Nm] DC-Com 1 DC-Com 2 DC-Com 5 DC-Com 10
Hook assembly 6,8 9,5 25,0
Tab. 59
