DEMAG DC-Com 5 User Manual

8.5.3 Dismantling the chain collector box

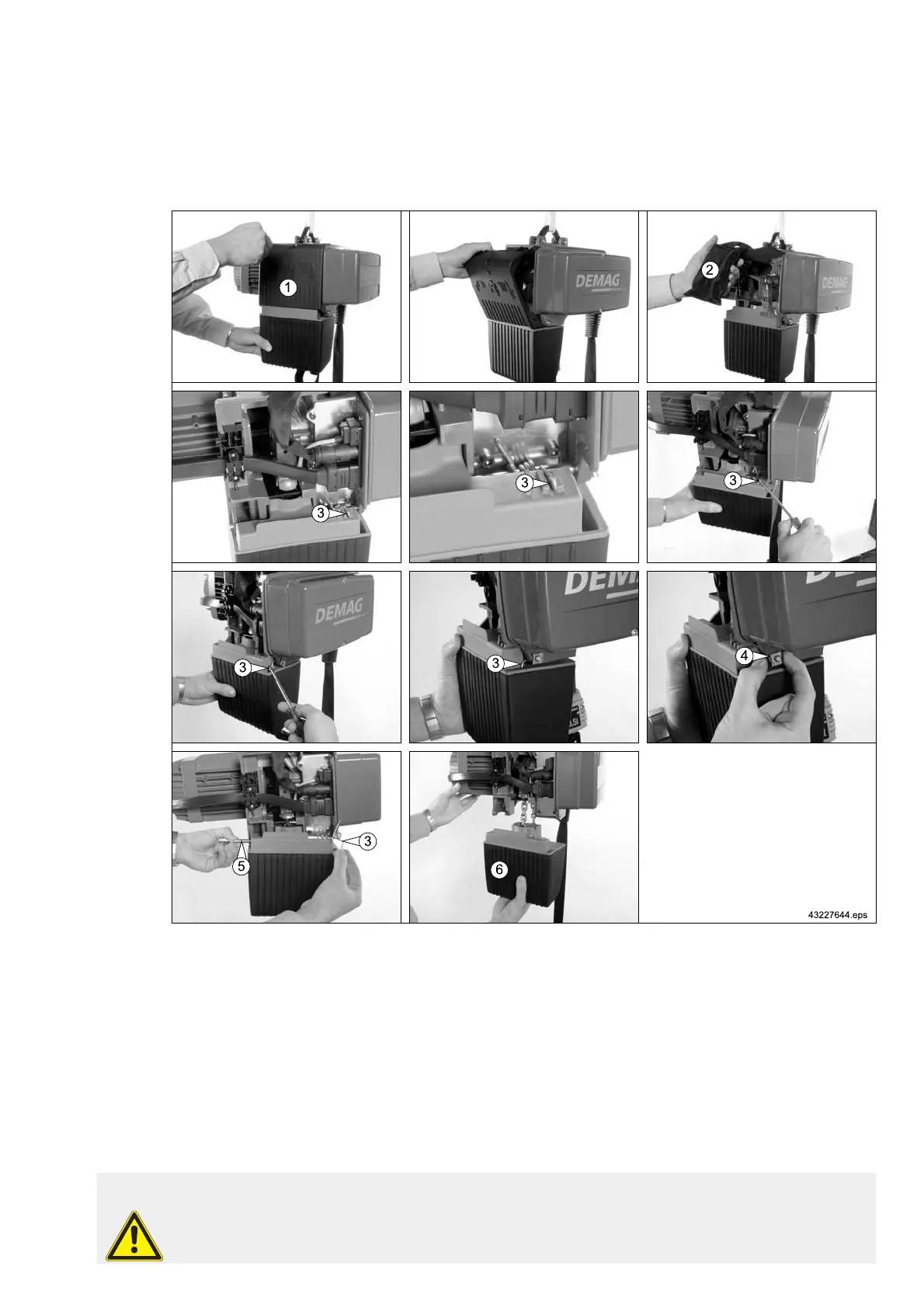

Fig. 43
– Unscrew and disengage the service cover (1).
– Place the bag (2) with control cable on the top of the chain hoist.
– Disengage the spring (3) and place it in the recess in the chain collector box.
– Remove securing spring (4) from the pin (5) and pull out pin. While doing so, hold the chain collector.
– Deposit the chain collector box (6) on the ground.
8.5.4 Operating limit switch (as standard for DC-Com 10 reeving 2/1)
8.5.4.1 Checking the operating limit switches
DANGER
Broken chains and load drop
Frequent approaches of the emergency limit stop device may result in broken chains or load drops.
21480244/181209
77
