3.5 Hook dimensions C

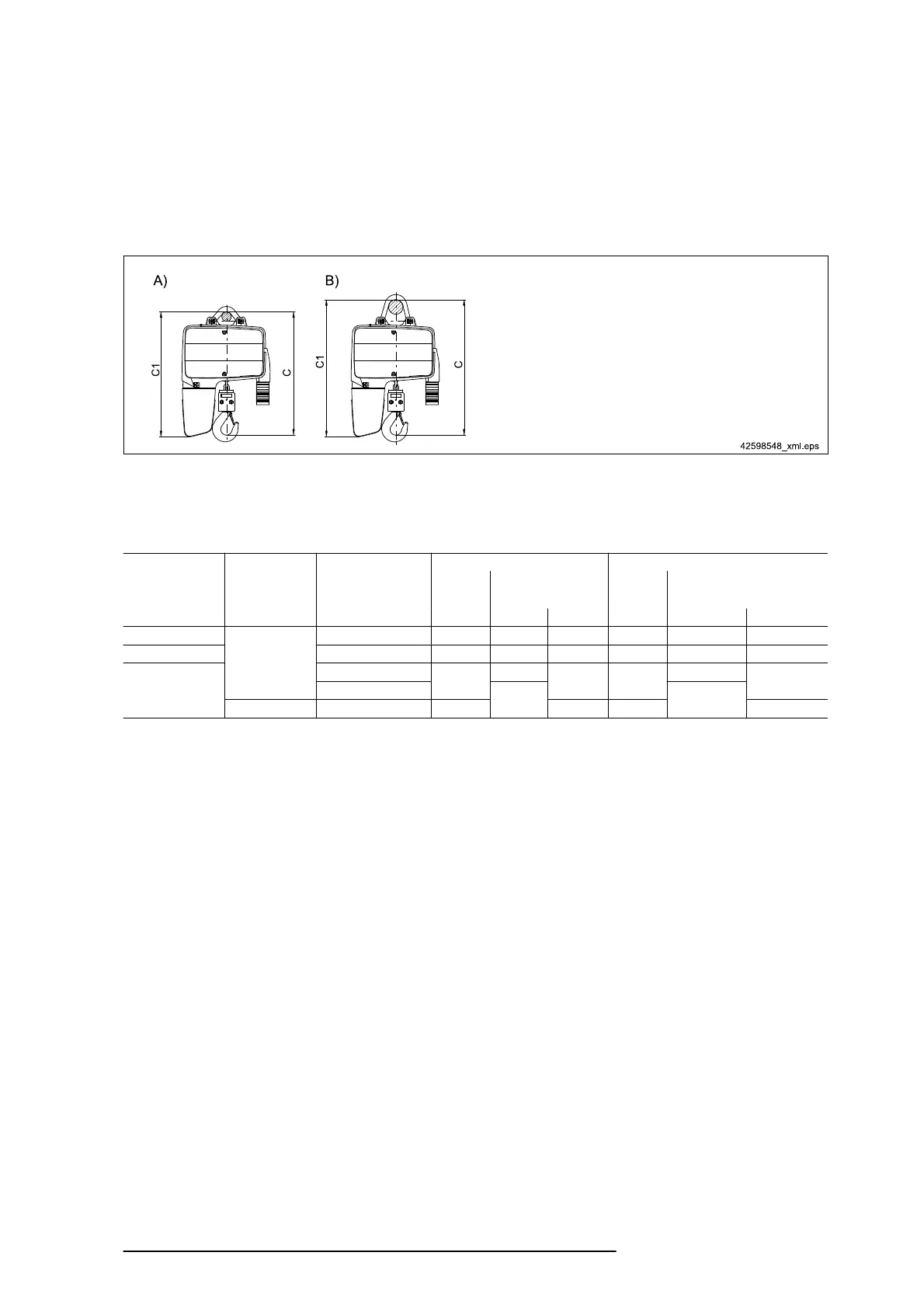

DC-Com chain hoist with suspension bracket
Fig. 5
A DC-Com with short suspension bracket (option‐
al)
B DC-Com with long suspension bracket
Size Reeving Motor size Short suspension bracket Long suspension bracket
C
C1
16)
C
C1
16)
Chain collector box Chain collector box
H4 / H5 H8 H4 / H5 H8
DC Com 1/2
1/1
ZNK 71 … 326 335 365 364 373 403
DC-Com 5 ZNK 80 … 378 395 425 416 435 465
DC-Com 10
ZNK 100 A 8/2
472
493
582 505
526
615
ZNK 100 B 8/2
582 615
2/1 ZNK 100 B 8/2 564 632 597 665
Tab. 15
16)
For higher hoist speeds a larger chain collector may be required, see ⇒ "Buffer design", Page 92
