5.8 Line connection

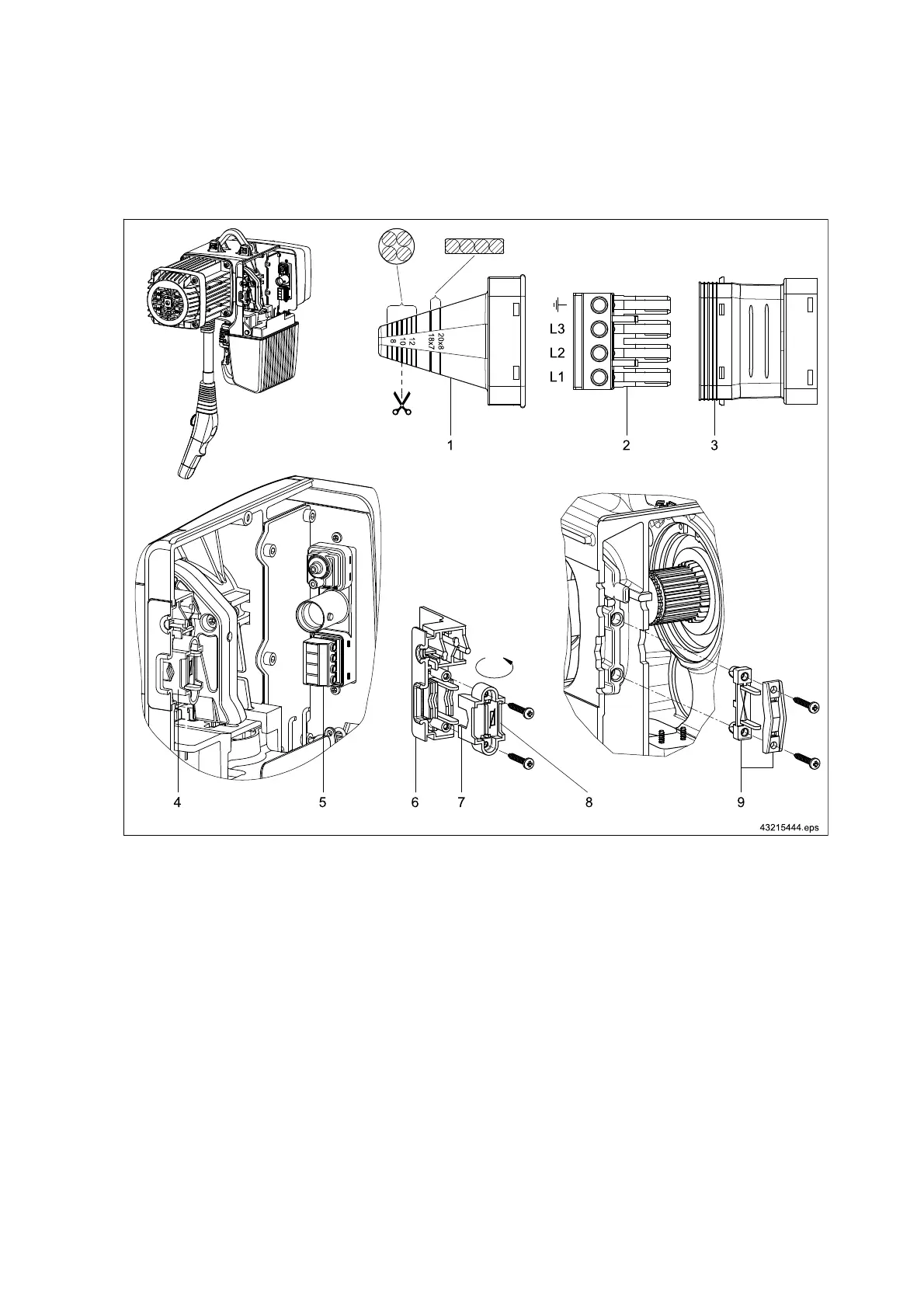

Fig. 25
1 Seal, sleeve
2 4-pole connector
3 Connector enclosure
4 Strain relief attachment
5 Line connection
6 DC-Com 1 - 5 strain relief attachment
7 Recess for round cable
8 Recess for flat cable
9 DC-Com 10 strain relief attachment
To connect the chain hoist to the power supply, the mains connection cable, the mains connection fuse links and
the devices for disconnecting and switching the powerfeed must be available on site. For power supply, a 4-lead
cable with an earth lead (PE), which complies with the table in ⇒ "Hoist motor data ", Page 20 is required.
Please note that the length of the supply cable specified for a given cross section must not be exceeded in order to
avoid excessive voltage drop and malfunctions during start-up of the motor caused by undervoltage.
Make electrical connection
● First check whether the voltage and frequency specified on the capacity plate match your mains supply. Ensure
that the mains connection cable is at zero voltage and secured against accidental restoration of the power supply.
● Remove the service cover to connect the supply cable.
● Use the mains connection set included in the scope of delivery to produce the plug-and-socket connection for the
mains connection cable.
● Cut the sleeve (1) to suit the geometry of the mains cable.
48
21480244/181209
