8.5.5.7 Replacing the chain set

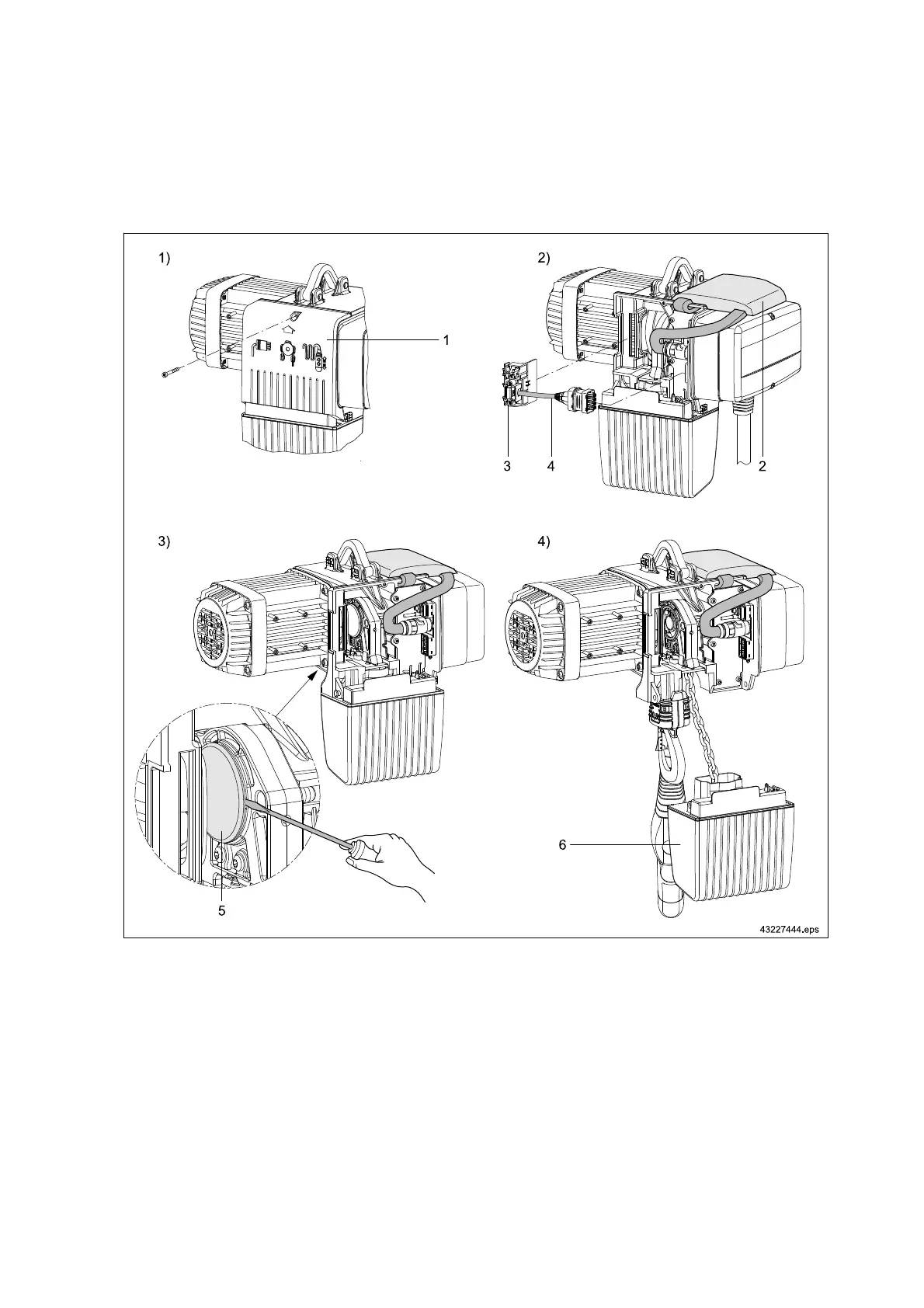

Fig. 50
Before starting maintenance work take the hoist out of service and secure against restarting. To replace the chain
set, proceed as follows:
1. Open and disengage the service cover (1).
2. Place bag with control cable on chain hoist (2); pull out and deposit mains cable union (3) with fitted mains
cable (4), if a travel drive is fitted, remove the connection cable from the strain relief;
3. Loosen cap (5) with a screw driver (lever off);
4. Remove and deposit the chain collector box (6) (⇒ "Dismantling the chain collector box", Page 77);
