5.9.2 Circuit diagram with E 11 - E 34 travel drive

For further circuit diagrams with E 11 - E 34 travel drive see ⇒ Tab. 3, Page 7 Technical data E 11 - E 34 DC travel

drive.

For further information on the E 11 - E 34 travel drive see ⇒ Tab. 3, Page 7 Assembly instructions E 11 - E 34 DC

travel drive.

For further information on the cross-travel limit switch, part no. 716 663 45, see ⇒ Tab. 3, Page 7 Assembly in‐

structions E 11 - E 34 DC travel drive.

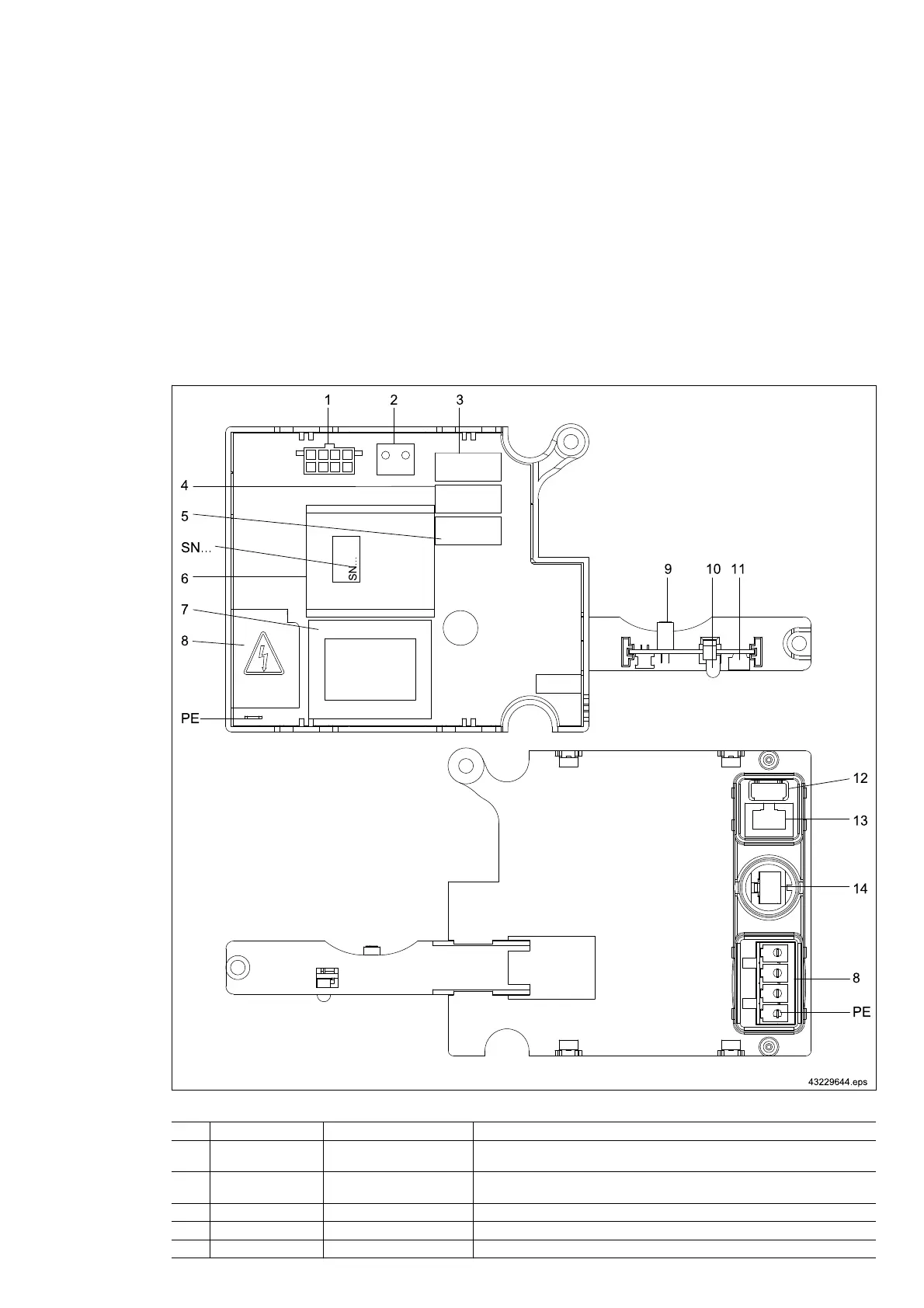

5.9.3 Control card

Fig. 29

Item

Designation Terminal strip Function

1 Plug-and-socket con‐

nector

X8 Motor

2 Plug-and-socket con‐

nector

X6 Brake

3 relay Slow / Fast

4 relay Lifting / Lowering

5 relay Lifting / Lowering (from 2009)
