5.5 Connecting the control pendant
43215144.eps

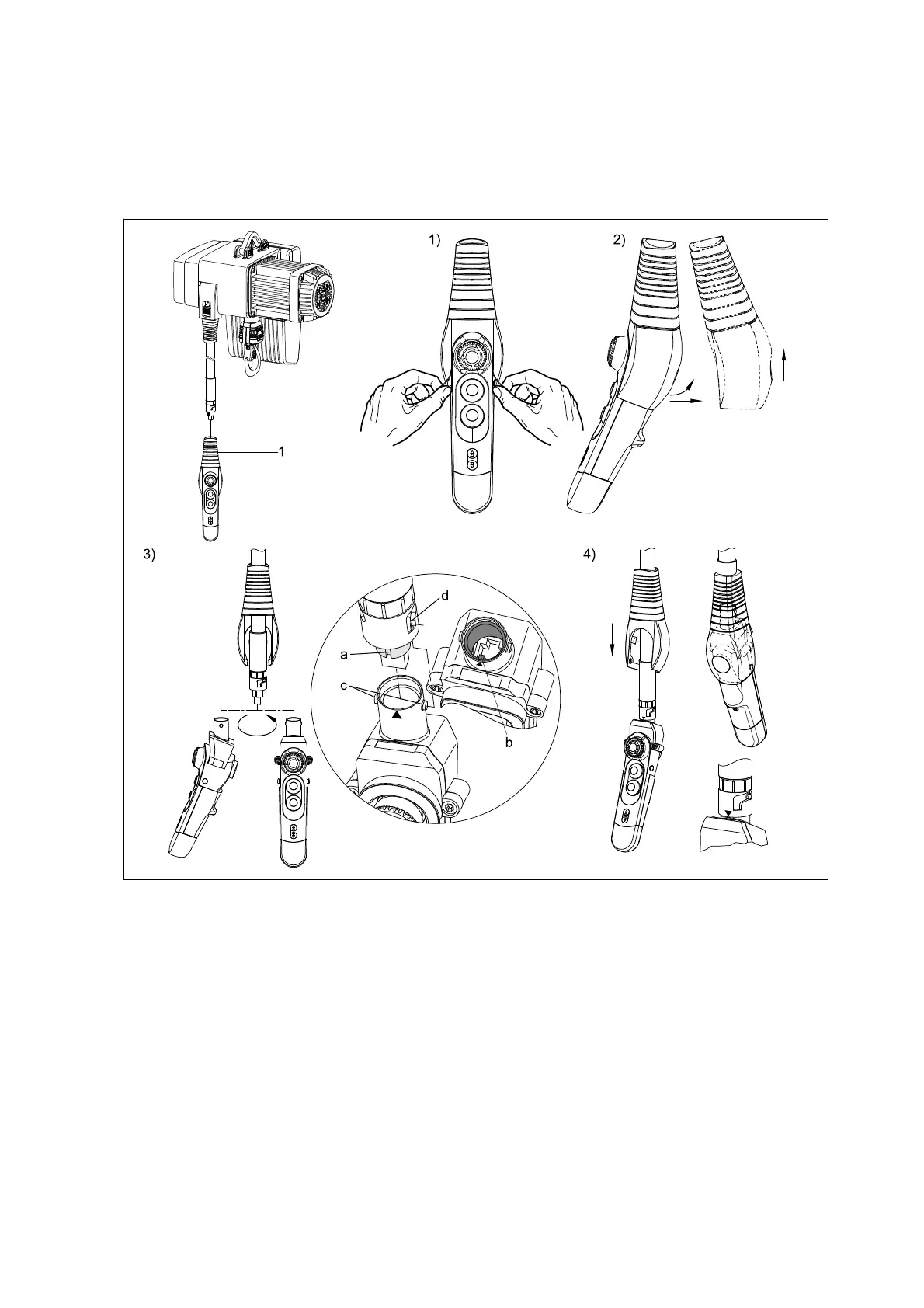

Fig. 18
The control pendant is of plug-in design. The connector at the end of the control cable is locked in the bayonet sleeve
and can be turned. If a connector is not locked, it can be pulled out and must be locked again by pressure.
Unless the chain hoist is supplied with fitted control pendant, connect the DSC control pendant with the control cable
and lock the connection with the bayonet lock, proceed as follows:
1. Lift the bend protection sleeve (1) on the control pendant off the two pins.
2. Then pull the bend protection sleeve (1) off the control pendant.
3. Slide the bend protection sleeve (1) onto the control cable. Plug the control cable into the control pendant and
turn the bayonet lock until it is locked. Ensure that
- the groove (a) of the connector holder matches the swivel lock (b) in the control pendant housing and
- that the two pins (c) on the control pendant housing match the bayonet lock (d).
4. Slide the bend protection sleeve (1) over the control pendant again. Pay attention to the positioning help. Press
the bend protection sleeve (1) firmly onto the control pendant.
The control pendant can be fitted on the chain hoist as a stationary unit or installed as a travelling unit, see
⇒ "Mobile control system", Page 47.
42
21480244/181209
