Denon AVR-4306 User Manual

8
Easy Setup and Operation Easy Setup and Operation
Monitor (TV)
S VIDEO
IN
VIDEO
IN
COMPONENT VIDEO IN
Y
P
B
PR
HDMI
IN
G
I
H
J
• For best picture quality (especially with progressive DVD and other high definition sources),
choose the component video or HDMI connection to your monitor (TV). S-Video and composite
video outputs are also provided if your TV does not have component video inputs.
NOTE:
• The component video input and/or output jacks may be labelled differently on some TVs,
monitors or video components (Y, P
B, PR; Y, CB, CR; Y, B-Y, R-Y). Check the owner’s manuals
for other components for further information.
• The COMPONENT MONITOR OUT-1 and the COMPONENT MONITOR OUT-2 can be used
simultaneously.
• Audio signals are only output from the HDMI monitor out terminal when audio signals are
input to the HDMI input terminal.
• When connecting the AVR-4306 and DVD player using an HDMI cable, also connect the AVR-
4306 and monitor (TV) using an HDMI cable ( page 20).

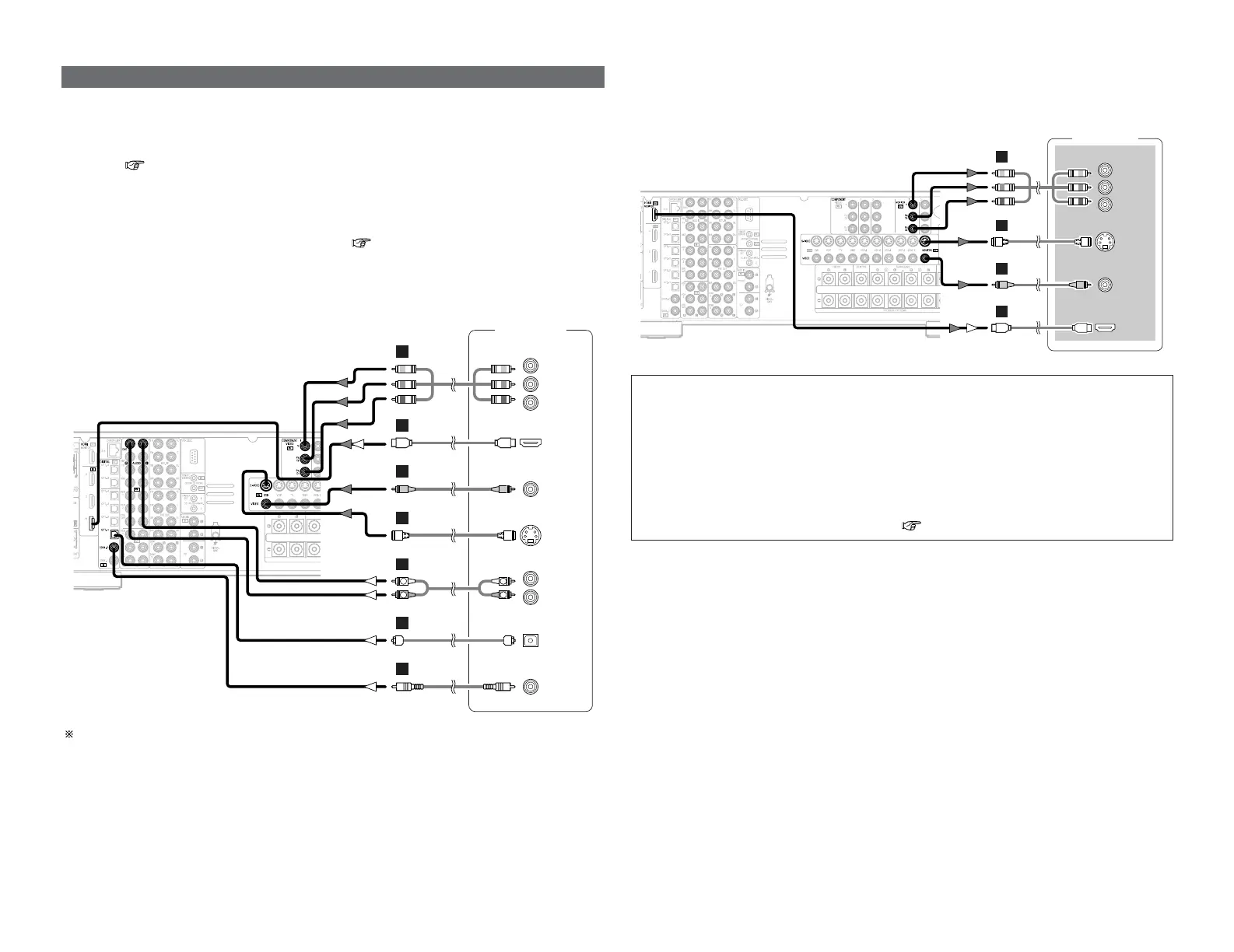

Connecting a DVD player and monitor (TV)
•To connect the video output from the DVD player to the AVR-4306, you only need to choose one
connection type. Component video connection offers the best quality (and is required for
progressive DVD playback), followed by S-Video, while composite video offers the lowest picture
quality of the three connection types. For more information about the video up conversion
function ( page 15).
• The AVR-4306 is equipped with HDMI connectors, so it can be connected to a DVD player or
monitor (TV) using an HDMI cable.
•To connect the digital audio output from the DVD player, you can choose from either the coaxial
or optical connections. If you choose to use the optical connection, it needs to be assigned. For
more information about Digital Input Assignment ( page 67).
• The AVR-4306 is equipped with another set of input terminals for a non-DVD Video Disc Player
(such as laser disc, VCD/SVCD, or future high definition disc player). The above connection
guidelines for DVD also apply to the VDP input.
Audio signal flow is shown with white arrows; video signal flow is shown with gray arrows.
DVD player
S VIDEO
OUT
COAXIAL
OUT
R
L
AUDIO OUT
VIDEO
OUT
COMPONENT VIDEO OUT
Y
P
B
PR
OPTICAL
OUT
HDMI
OUT
R
L
R
L
G
I
H
A
C
D
J

Denon AVR-4306 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	102 dB
Dynamic power per channel (4 Ohm)	220 W
Dynamic power per channel (8 Ohm)	150 W
Power output per channel (1KHz@6 Ohm)	170 W
Power output per channel (20-20KHz@8 Ohm)	130 W
HDMI in	3
Line-in	Yes
Composite video in	7
USB ports quantity	1
Digital audio coaxial in	2
Digital audio optical in	5
Headphone connectivity	3.5 mm
Speakers connectivity type	RCA
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	570 W
3D	-
Optical drive included	No
Product color	Silver
Audio decoders	DTS 96/24, DTS Neo:6, DTS-ES, Dolby Digital, Dolby Digital EX, Dolby Pro Logic IIx
Apple docking compatibility	iPod

Weight and Dimensions

Depth	429 mm
Width	434 mm
Height	171 mm
Weight	18500 g
