Denon AVR-4306 User Manual

16

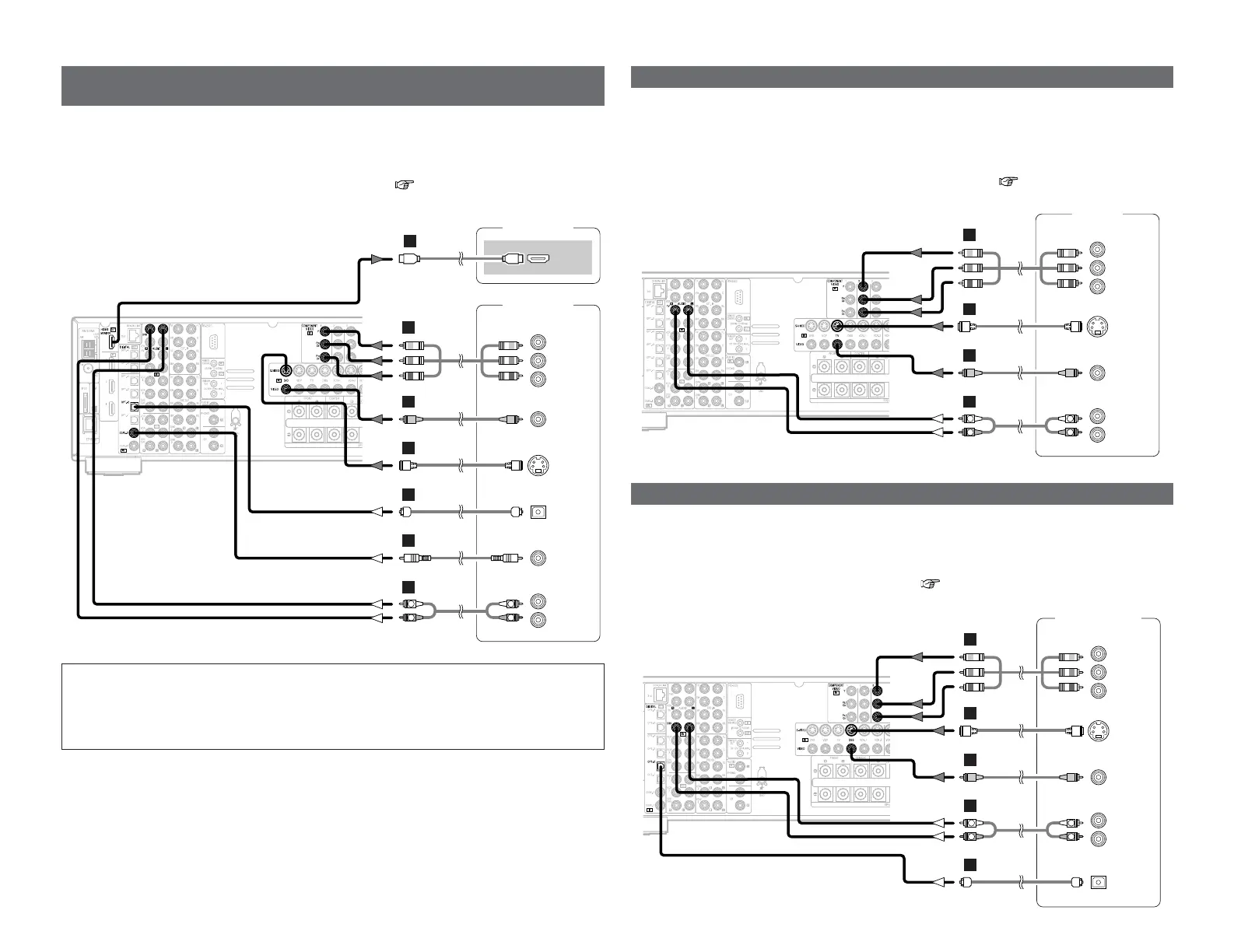

Connecting Other Sources Connecting Other Sources
Connecting equipment with HDMI (High-Definition Multimedia
Interface) terminals [To convert analog video signals to HDMI signals]
Monitor (TV)
HDMI
IN
DVD player
S VIDEO
OUT
COAXIAL
OUT
R
L
AUDIO OUT
VIDEO
OUT
COMPONENT VIDEO OUT
Y
P
B
PR
OPTICAL
OUT
J
R
L
R
L
G
I
H
A
C
D
• The AVR-4306 is equipped with a function for converting analog video signals into HDMI signals.
You can do this by either a component or a video or a S-Video connection.
• Audio signals are not output from the HDMI monitor output terminal, so also make analog or
digital audio connections. To play sound using digital audio connections, assign the digital terminal
(coaxial or optical) at “Setting the Digital In Assignment” ( page 67).
NOTE:
• When “Through” is set at “Resolution” under “Setting the HDMI Out Setup”, use a monitor
compatible with input resolutions of 480i/576i.
• If your monitor is not equipped with an HDMI terminal, connect the AVR-4306 to the monitor
using the component video, S-Video, or composite video terminals.
Connecting a TV tuner
G
H
A
TV tuner
S VIDEO
OUT
R
L
AUDIO OUT
VIDEO
OUT
COMPONENT VIDEO OUT
Y
P
B
PR
R
L
R
L
I
• For best picture quality choose the component video connection to your TV tuner. S-Video and
composite video outputs are also provided if your TV tuner does not have component video
inputs.
•To connect the digital audio output from the TV tuner, you can choose from either the coaxial or
the optical connections. If you choose to use the coaxial or the optical connection, it needs to be
assigned. For more information about Digital Input Assignment ( page 67).
Connecting a DBS tuner
G
H
A
DBS / BS Tuner
S VIDEO
OUT
R
L
AUDIO OUT
VIDEO
OUT
COMPONENT VIDEO OUT
Y
P
B
PR
OPTICAL
OUT
D
R
L
R
L
I
• For best picture quality choose the component video connection to your DBS tuner. S-Video and
composite video outputs are also provided.
•To connect the digital audio output from the DBS tuner, you can choose from either the coaxial
or optical connections. If you choose to use the coaxial connection, it needs to be assigned. For
more information about Digital Input Assignment ( page 67).

Denon AVR-4306 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	102 dB
Dynamic power per channel (4 Ohm)	220 W
Dynamic power per channel (8 Ohm)	150 W
Power output per channel (1KHz@6 Ohm)	170 W
Power output per channel (20-20KHz@8 Ohm)	130 W
HDMI in	3
Line-in	Yes
Composite video in	7
USB ports quantity	1
Digital audio coaxial in	2
Digital audio optical in	5
Headphone connectivity	3.5 mm
Speakers connectivity type	RCA
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	570 W
3D	-
Optical drive included	No
Product color	Silver
Audio decoders	DTS 96/24, DTS Neo:6, DTS-ES, Dolby Digital, Dolby Digital EX, Dolby Pro Logic IIx
Apple docking compatibility	iPod

Weight and Dimensions

Depth	429 mm
Width	434 mm
Height	171 mm
Weight	18500 g
