q
Input signal indicator
The respective indicator will light corresponding
to the input signal.
w
Input signal channel indicator
The channels included in the input source
will light.
This lights when the digital signal is inputted.
e
Information display
This displays the surround mode, function
name or setting value, etc.
r
Output signal channel indicator
The audio channels that can be output light.
t
Speaker indicator
This lights corresponding to the settings of
the surround speakers of the various
surround modes.
y
Master volume indicator
This displays the volume level.
The Setup item number is displayed in
System Setup.
u
MULTI (zone) indicator
ZONE2 mode is selected in ZONE2/REC
SELECT.
i
Recording output source indicator
REC OUT mode is selected in ZONE2/REC
SELECT.
o
DENON LINK indicator
This lights during playback in a DENON LINK
connection.
!0
AL24 indicator
The AL24 indicator lights when the PURE
DIRECT, DIRECT, STEREO, MULTI CH PURE
DIRECT, MULTI CH DIRECT, MULTI CH IN
mode is selected in the PCM input signal.
!1
Input mode indicator
This lights corresponding to the setting of
the input mode.
!2
AUTO indicator
This lights when the broadcast station is
selected in the AUTO tuning mode.
!3
TUNED indicator
This lights when an FM/AM broadcast has
been received.
!4
STEREO indicator
This lights when an FM stereo broadcast has
been received.

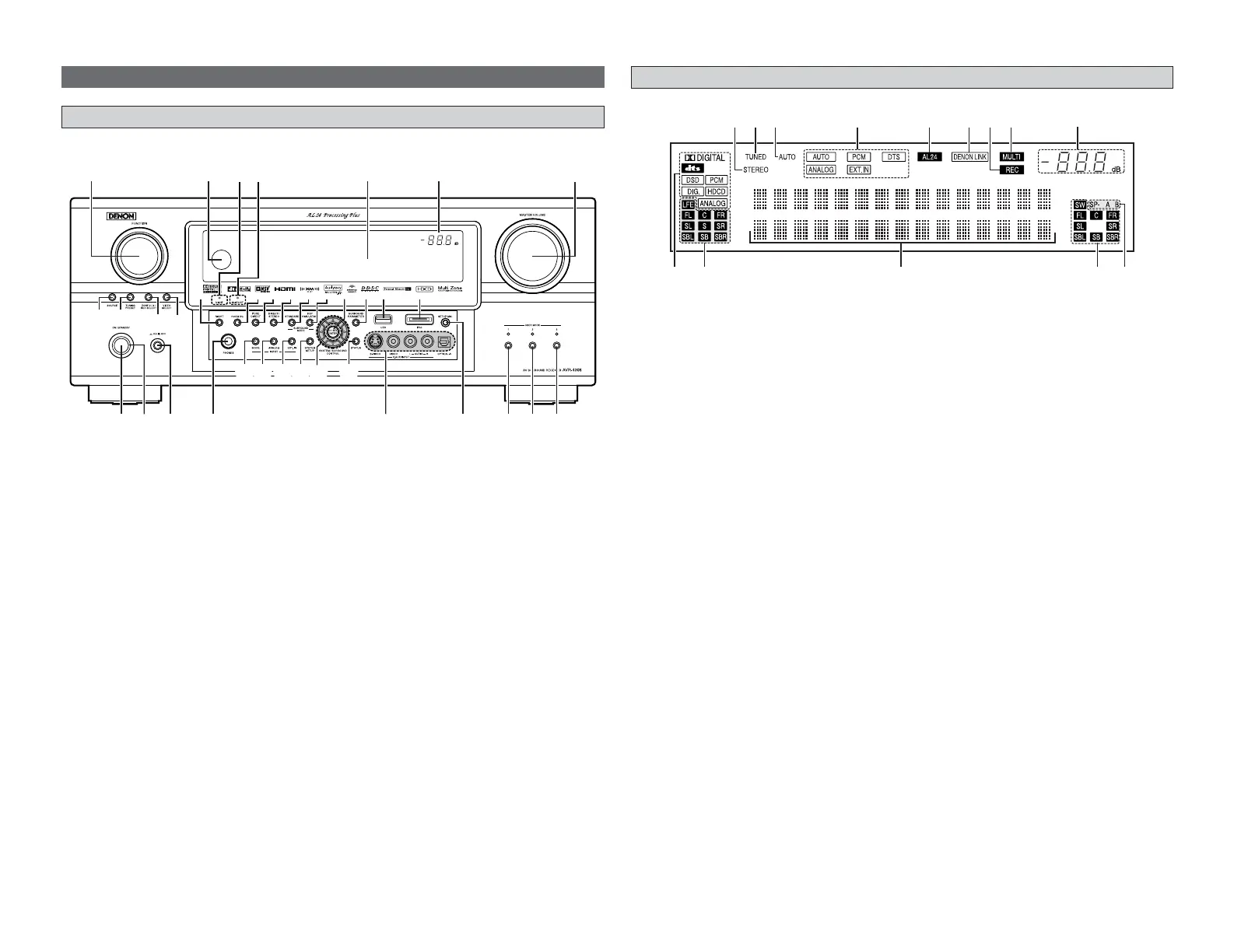

Part names and functions
Front panel
For details on the functions of these parts, refer to the pages given in parentheses ( ).
q
Power ON/STANDBY button··············(10)
w
Power indicator····································(10)
e
Power switch ·································(10, 64)
r
Headphones jack (PHONES) ···············(26)
t
V.AUX INPUT terminals ······················(17)
y
SETUP MIC jack ···································(10)
u
USER MODE 1 button ·························(36)
i
USER MODE 2 button ·························(36)
o
USER MODE 3 button ·························(36)
!0
MASTER VOLUME control knob ········(25)
!1
Master volume indicator·····················(25)
!2
Display
!3
MultEQ XT indicator····························(28)
!4
NIGHT indicator ···································(31)
!5
Remote control sensor··························(3)
!6
FUNCTION knob···································(25)
!7
SOURCE button ···································(25)
!8
TUNING PRESET button ·····················(40)
!9
ZONE2/3/REC SELECT button······(62, 64)
@0
VIDEO SELECT button·························(26)
@1 NIGHT button·······································(31)
@2
ROOM EQ button·································(28)
@3 PURE DIRECT button···························(30)
@4
DIRECT/STEREO button······················(30)
@5
STANDARD button ······························(25)
@6
DSP SIMULATION button ···················(37)
@7
CH SELECT/ENTER button ·················(39)
@8
SURROUND PARAMETER button ······(31)
@9
USB connector ·····································(50)
#0
iPod connector ·····································(44)
#1
STATUS button ····································(27)
#2
CURSOR button ···································(11)
#3
SYSTEM SETUP button ······················(11)
#4
EXT. IN button······································(26)
#5
ANALOG button···································(28)
#6
INPUT MODE button ···························(26)
