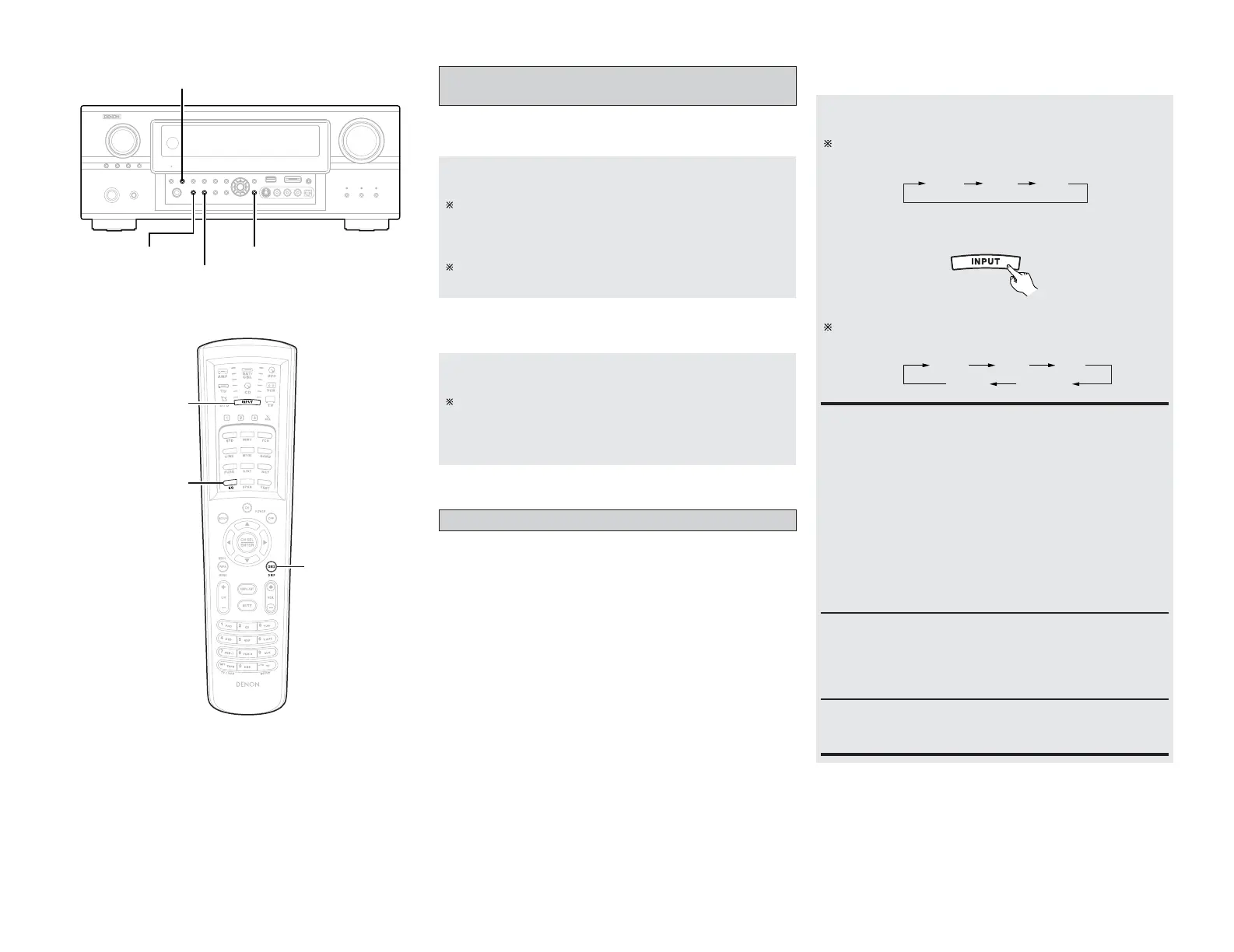

Basic Operation Basic Operation
2 On screen display
Checking the currently playing program
source, etc.
Press the ON SCREEN button.
Each time an operation is performed, a description of that
operation appears on the display connected to AVR-4306’s
VIDEO MONITOR OUT terminal. Also, the unit’s operating
status can be checked during playback.
Such information as the position of the input selector and
the surround settings is output in sequence.
2 Front panel display
Press the STATUS button.
Descriptions of the unit’s operations are also displayed on
the front panel display. In addition, the display can be
switched to check the unit’s operating status while playing a
source.
Input mode
The AVR-4306 has an AUTO signal detection mode that
automatically identifies the type of incoming audio signals, but is
also equipped with a manual mode that can be switched
according to the type of input audio signals.
2 Selecting the AUTO, PCM and DTS modes
AUTO PCM DTS
Press the INPUT MODE button.
The mode switches as shown below each time the INPUT
MODE button on the main unit is pressed:
AUTO (All auto mode):
In this mode, the types of signals being input to the digital and
analog input terminals for the selected input source are
detected and the program in the AVR-4306’s surround
decoder is selected automatically upon playback. This mode
can be selected for all input sources other than PHONO and
TUNER.
The presence or absence of digital signals is detected, the
signals input to the digital input terminals are identified and
decoding and playback are performed automatically in DTS,
Dolby Digital or PCM (2 channel stereo) format. If no digital
signal is being input, the analog input terminals are selected.
Use this mode to play Dolby Digital signals.
DTS (exclusive DTS signal playback mode):
Decoding and playback are only performed when DTS signals
are being input.
PCM (exclusive PCM signal playback mode):
Decoding and playback are only performed when PCM signals
are being input.
Note that noise may be generated when using this mode to
play signals other than PCM signals.
STATUS
ANALOG
INPUT MODE
ROOM EQ
ROOM EQ
INPUT MODE
ON SCREEN
AUTO
EXT.IN ANALOG
PCM DTS
The mode switches as shown below each time the INPUT
MODE button on the remote control unit is pressed:
(Remote control unit)
When operating the remote control unit:

Denon AVR-4306 Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	102 dB
Dynamic power per channel (4 Ohm)	220 W
Dynamic power per channel (8 Ohm)	150 W
Power output per channel (1KHz@6 Ohm)	170 W
Power output per channel (20-20KHz@8 Ohm)	130 W
HDMI in	3
Line-in	Yes
Composite video in	7
USB ports quantity	1
Digital audio coaxial in	2
Digital audio optical in	5
Headphone connectivity	3.5 mm
Speakers connectivity type	RCA
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	570 W
3D	-
Optical drive included	No
Product color	Silver
Audio decoders	DTS 96/24, DTS Neo:6, DTS-ES, Dolby Digital, Dolby Digital EX, Dolby Pro Logic IIx
Apple docking compatibility	iPod

Weight and Dimensions

Depth	429 mm
Width	434 mm
Height	171 mm
Weight	18500 g
