121
ID
OU
NOW
? The Wi-Fi connection will work over a range of 40 to 100ft, depending on the
installation environment and antenna choice. Range is limited when mounted within a metal
cabinet.
WI-FI AND WIRELESS ACCESS POINT CONNECTION (OPTIONAL)
The optional Wi-Fi module may be used in one of two ways: as a Wi-Fi connection to an existing Wi-Fi
network or in Access Point Mode where the logger connects directly to devices such as laptops or smart
phones.
Connection ranges depend on whether an internal or high-gain external antenna is used.

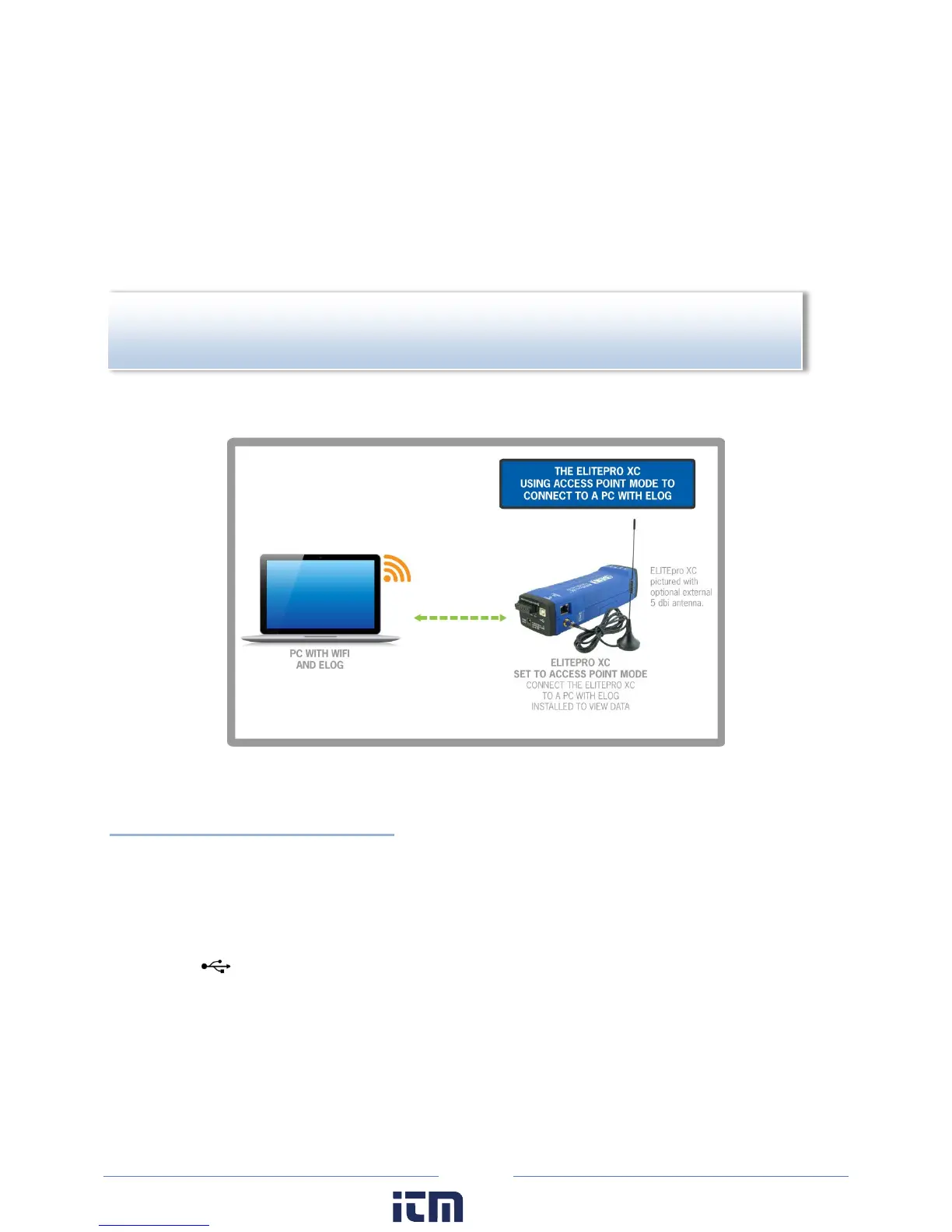

ELITEpro XC as its own Access Point
Using the ELITEpro XC as an access point or “hotspot” enables Wi-Fi connections where no existing
wireless network is available, or where access to existing networks is not allowed.
1) Set up the logger for Access Point connection. Connect the USB cable to a USB port on your
computer, inserting the other end in the USB port on the ELITEpro XC (Hint: look for this USB
symbol: ). If a USB cable is used inside an electrical panel, it must be rated to the appropriate
voltage or wrapped in an appropriately rated insulating sleeve. The DENT-supplied cable does not
meet this requirement without an insulating sleeve.
2) If it does not launch automatically, start ELOG 15 and connect to the logger.
3) From the ELOG menu, select Logger > Communication > Logger Wi-Fi Setup…. The Logger Wi-Fi
Setup dialog box appears.
