Display Real-Time Values Sub-Menu
The Display Real Time Values option shows instantaneous readings for channels in use in either a textual
or graphical format. Real-Time Values are an excellent way to verify the correct installation of a meter.
Real-Time Values may be displayed in either a textual or graphical format.
Show As Text

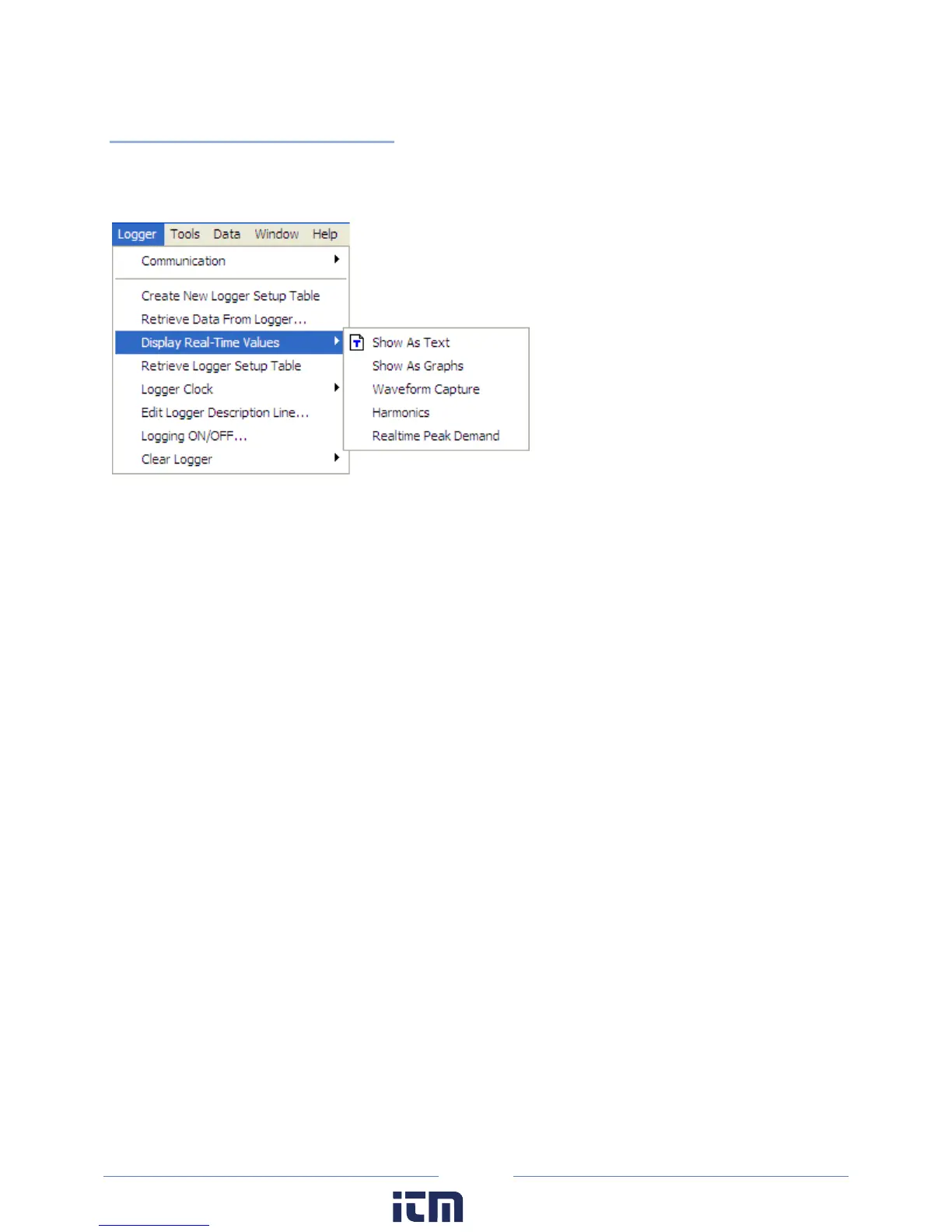

When this option is selected, a screen similar to the one on the following page displays. All channels
that are turned on (even if not being recorded) are displayed simultaneously. If a parameter is being
recorded by the logger, it will be shaded in green as shown in the Real-Time Channel Values window
(see next page). For a Power Channel, all six power parameters (V, A, kW, kVA, PF, and kVAR) are
displayed even if only one of the parameters is recorded.
This feature is useful for verifying correct installation of the logger.
This screen provides information about:
The real-time data (which can be paused for cross-channel comparisons)
The Line Frequency as measured between L1 and L2
How much memory has been used and how many days the memory has remaining before filling
The logger clock’s current date and time
Whether or not the data logging is turned on
Type of memory: Linear (Stop When Full) or Ring (Continuous)
