43
QUICK SETUPS

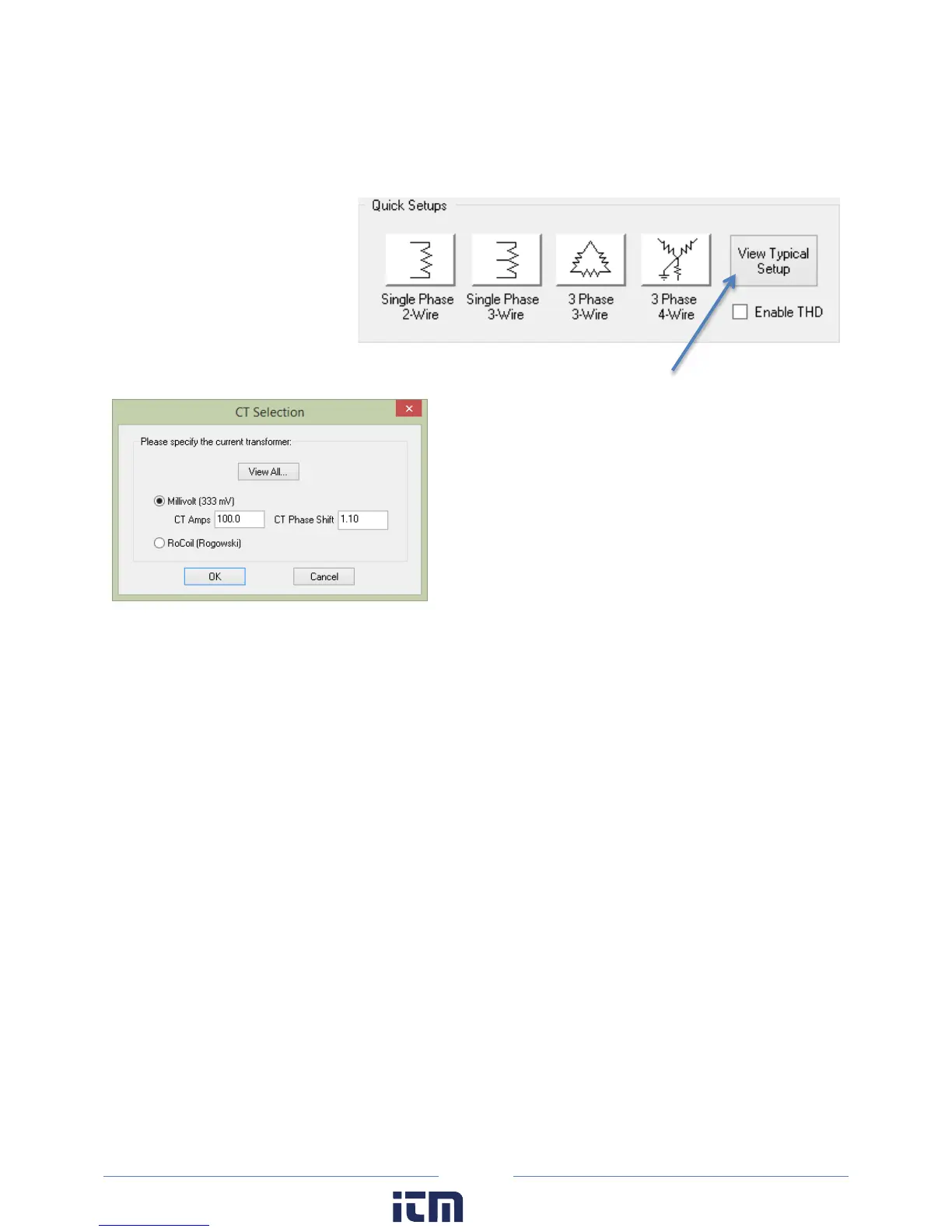

The Quick Setups section of the window provides four buttons to quickly configure the ELITEpro XC.
1) Click the Quick Setup
button that represents your
monitoring scenario.
Each button opens the CT
Selection dialog window.
See ELOG Quick Setup Wiring
Diagrams within this section for more detail.
2) S
elect View All to choose a CT from the CT selection list.
-or-
Select Millivolt and enter the CT Amps, the primary current rating of the current transformer, and
the CT Phase Shift
.
-or-
Select RōCoil.
NOTE: The Millivolt default is 100 amps. Enter the value printed on the CT if it is not 100. If RōCoil
(Rogowski) is selected, the CT Amps are set to 5,000 and the CT Phase Shift is set to 0.0 and may not
be changed. All DENT RōCoils, regardless of size, use the same settings.
The View Typical Setup button
is only visible after a Quick
Setup selection is made.
