Connecting Split-Core Style Millivolt
CTs to a Load

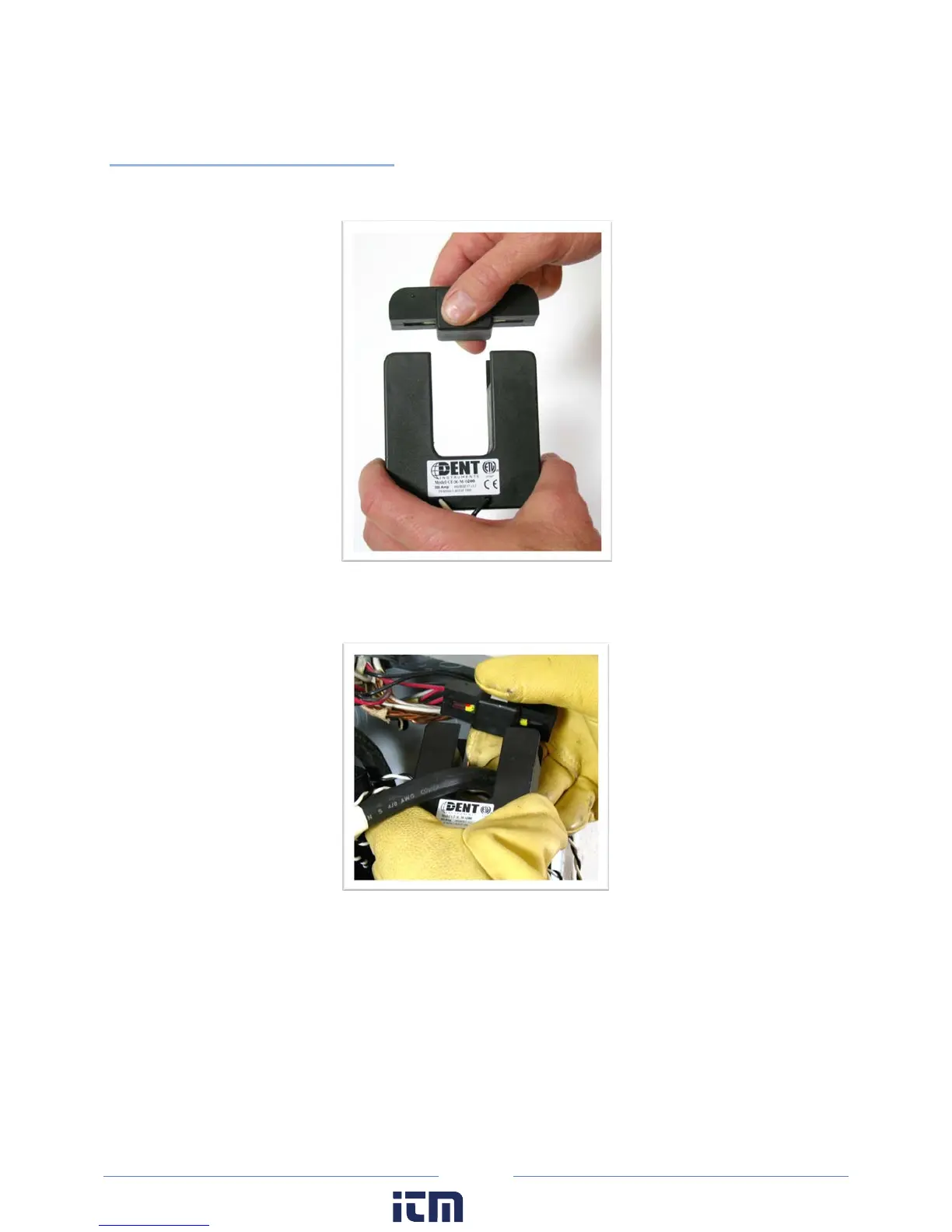

1) Open the CT by holding on to the removable leg and pulling it apart.
2) C
onnect CT around the load conductor to be measured. Make sure the maximum current of the
conductor does not exceed the maximum CT rating listed on the CT data sheet
.
3) C
arefully re-connect the removable leg while ensuring the CT core alignment matches. The
conductor should be in the inside of the CT window.
Repeat Steps 1-3 if you are using more than one CT.
