Original User Guide | Pedelec Impulse Evo / Impulse Evo Next Version 4 EN-87
Seat tube battery: Impulse Evo Next pedelec

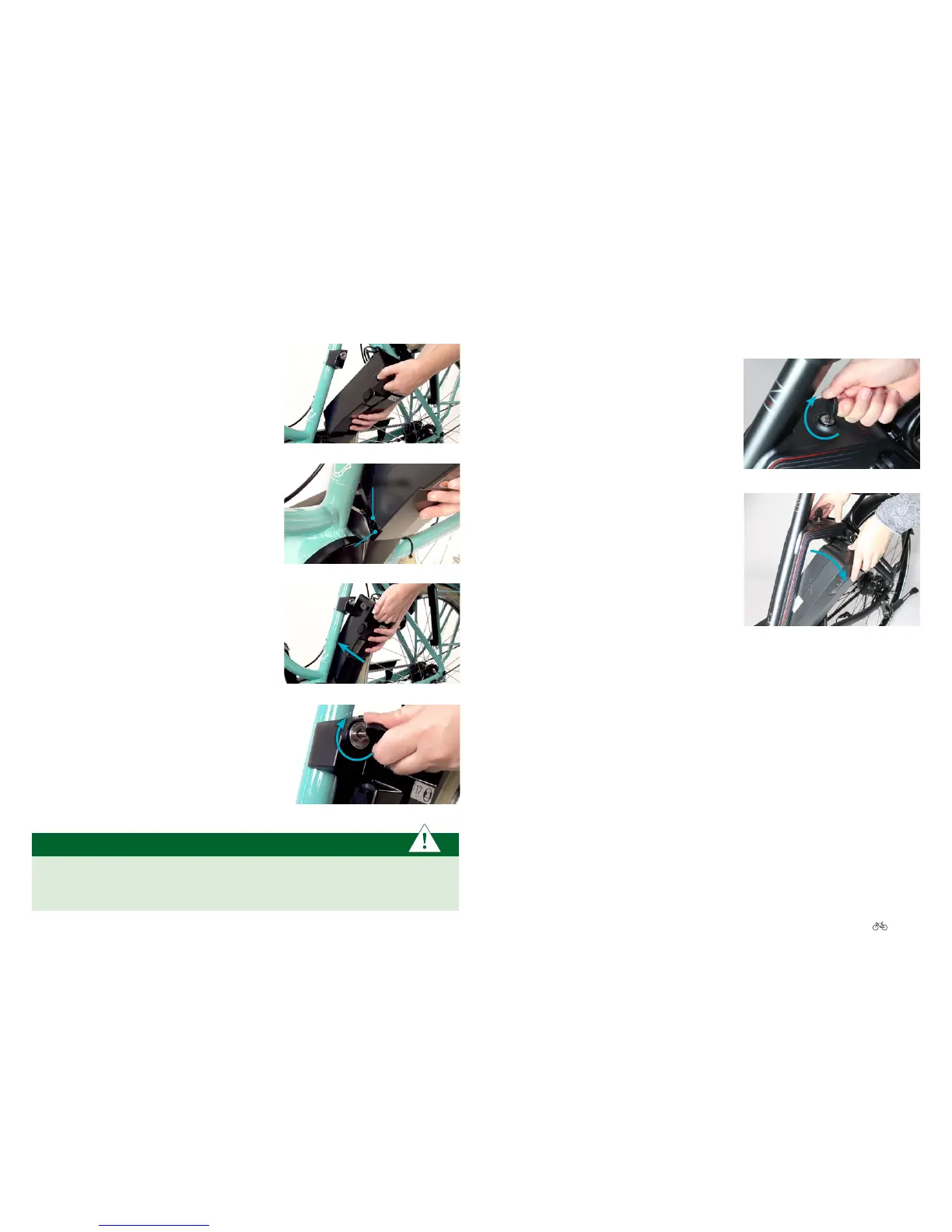

1. Hold the battery, with the discharger
connector pointing downwards, at an
angleof80˚,slightlytiltedtotheleft
in front of the docking station.
2. Place the battery catches into the
dents provided.
3. Push the battery forwards and
upwards into the docking station until
the locking mechanism engages.
4. Turn the battery key clockwise. The
battery is now locked.
IMPORTANT
The recommendation is to remove the key now and keep it in a safe
placesoitdoesnotbreakoandisnotlost.
For 1.
Hold in front of the docking station
Battery nibs
Recesses
For 2.
Battery nibs into recesses
For 3.
Push battery into docking station
For 4. Locking the battery
9.3.3 Unlocking and removing the battery
Seat tube battery: Impulse Evo pedelec
1. Hold the battery, put the key into the
battery lock and turn it clockwise.
Hold the key. The battery is unlocked.
2. Grip the battery and tilt it out of the
docking station on the side.
For 1. Unlocking the battery
For 2. Removing the battery
