DS2460Q QAM Analysis Meter Operation Manual
84
Figure 4-68

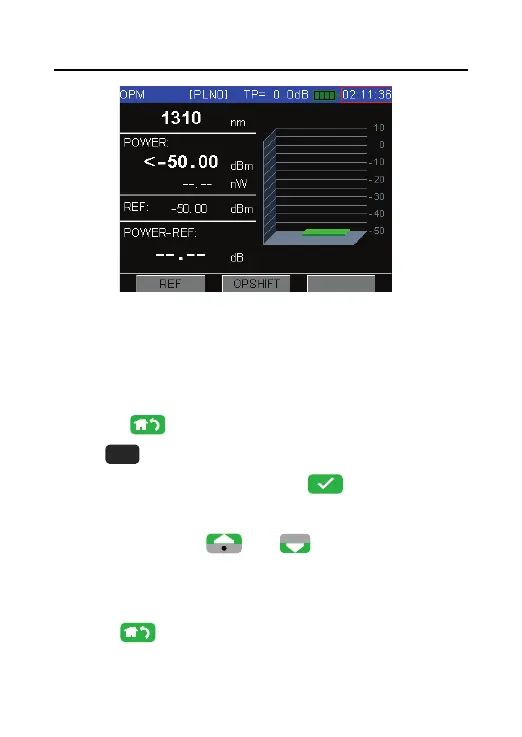

Operation steps:
(1) Connect optical power meter signal input port and
under test optical fiber;
(2) Press
to return to main menu interface and
press
(PAGE2) and use arrow buttons to select
the OPM icon, and then press
to enter OPM
function.;
(3) Use the use the
and
buttons to choose
the right wavelength, the related optical power
measurement results display on the screen.
(4) Press
button to quit OPM function.
