Handheld Cable/Antenna Analyzer
2-3 Powering On the E7000L
The E7000L is capable of approximately 8 hours’ continuous use from a fully charged battery. The E7000L
can also be operated from a 12 VDC source, which will simultaneously charge the battery. This can be
achieved with either the AC-DC Adapter or Automotive Cigarette Lighter Adapter.
CAUTION: When using the vehicle charger, make sure that the supply is rated for a minimum of 60 watts
at 12 VDC, and that the socket is clean without any dirt or debris. If the adapter plug becomes
hot to the touch during charging, please discontinue use immediately.
To turn on the E7000L SitePROFILER, press and hold the On/Off button on the front panel (see diagram in
Section 2-4) for approximately 2-3 seconds. The instrument will take approximately 60 seconds to complete
power warm-up and load the application software. When this process is complete, the instrument is ready
for use. To power the device off, press the On/Off button briefly.
In the event that the battery charge has been depleted, you will need to charge (or operate) the unit from
its AC/ DC adapter until the battery charge is restored to 100%.
2-4 Exploring the E7000L SitePROFILER
The E7000L SitePROFILER features a menu-driven, touchscreen user interface that is easy to use and requires
little training. Most measurement functions will employ the touchscreen UI, while other inputs will employ the

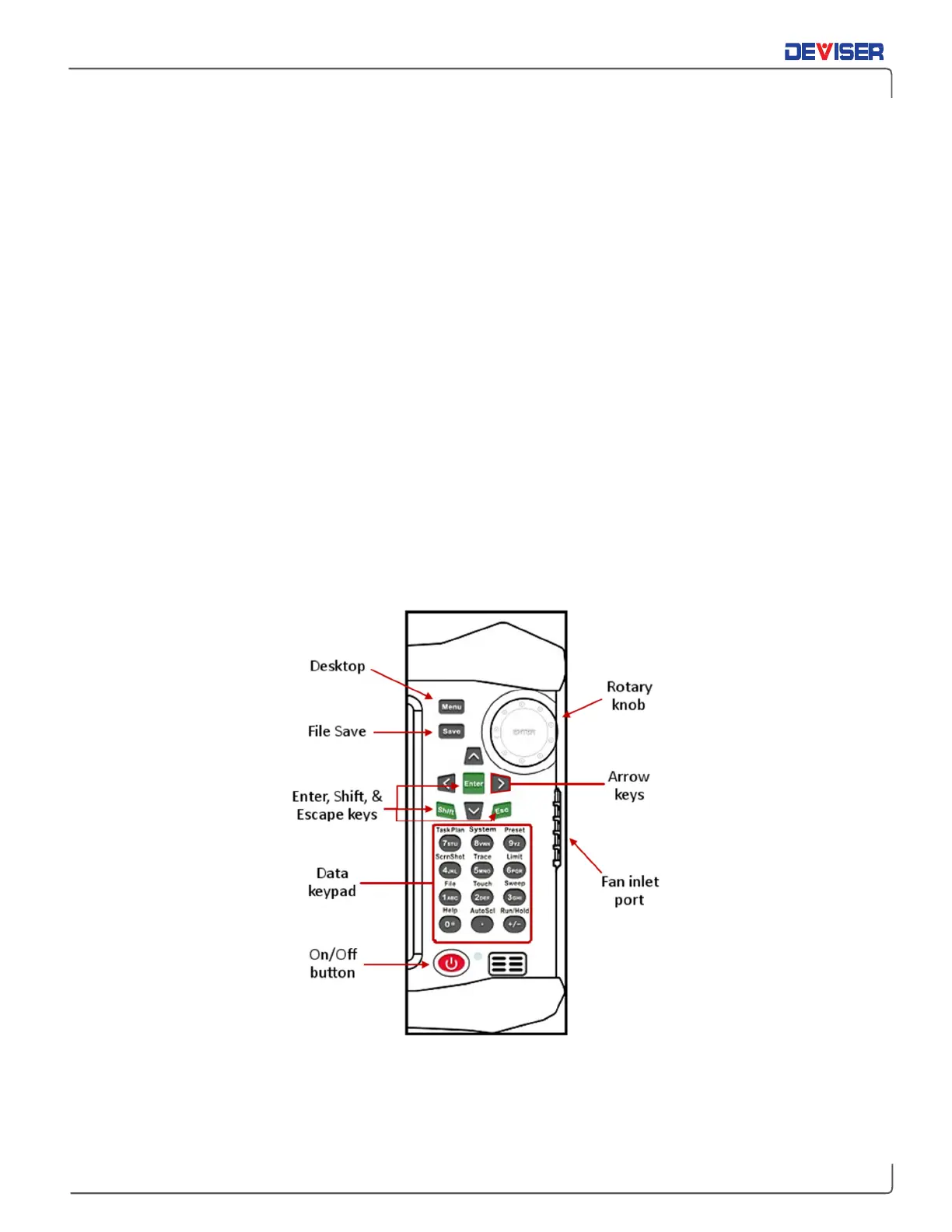

front panel keypad located to the right of the display. The keypad buttons and inputs are detailed below.
