Handheld Cable/Antenna Analyzer
Chapter 4 — Cable Analyzer Menus
This chapter contains maps and descriptions of the E7000L SitePROFILER cable analyzer’s menus. Main
menus are located along the bottom edge of the display and can be tapped to enter their respective
submenus. Submenus are located along the right edge of the display, and are listed in the order they
appear.
Main menus are indicated with
bold text
. Submenus are indicated with an arrow. “>” indicates a closed
(sub)menu. “
V
” indicates an open (sub)menu, with its contents (with default values) listed below.

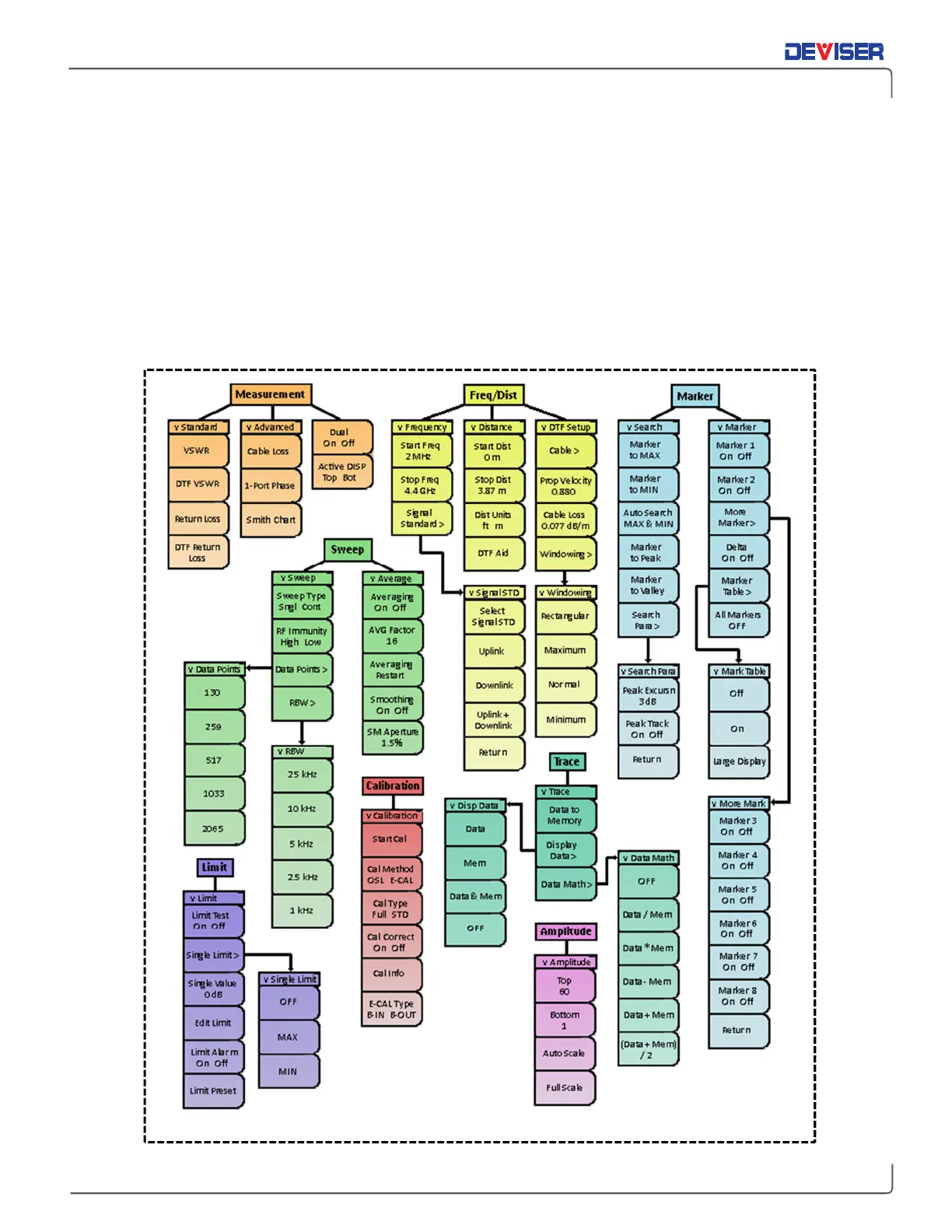

Cable & Antenna Mode Menus
