Chapter 13 — Optical Power Meter
Introduction
The Optical Power Meter function of the E7000L SitePROFILER enables power measurements without
carrying a separate power meter accessory or additional tools. This mode displays the power level on an
analog meter in real time. Simply connect the fiber line to the OPM port on the instrument’s top panel,
between the RF Out and VFL ports. Configurable settings include display range, upper and lower limits, and
power units (dBm or watts).

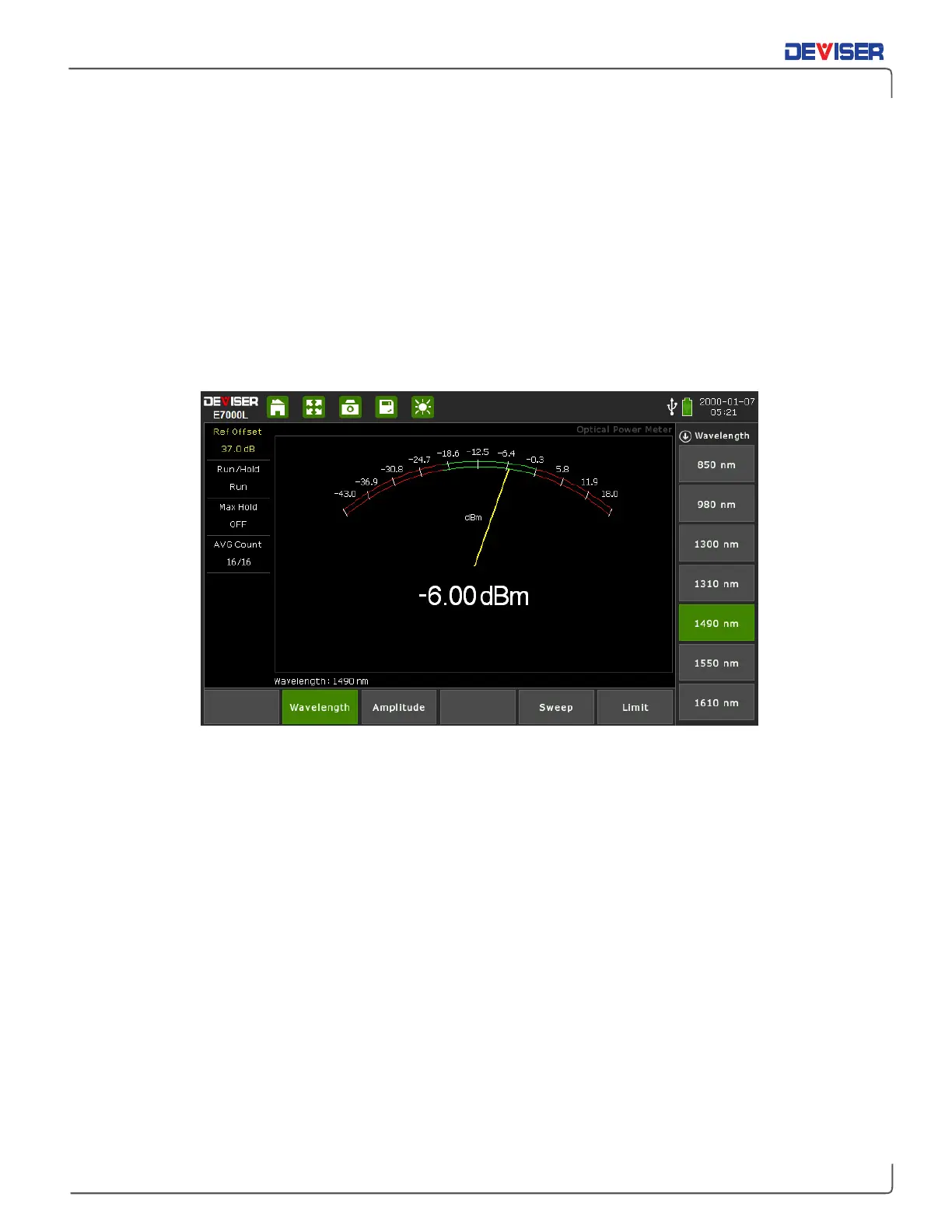

Enter this measurement mode by pressing the
Menu
button to the top-right of the display, then selecting
the Optical Power Meter icon.
