Handheld Cable/Antenna Analyzer
Chapter 12 — Internal Power Meter
Introduction
The

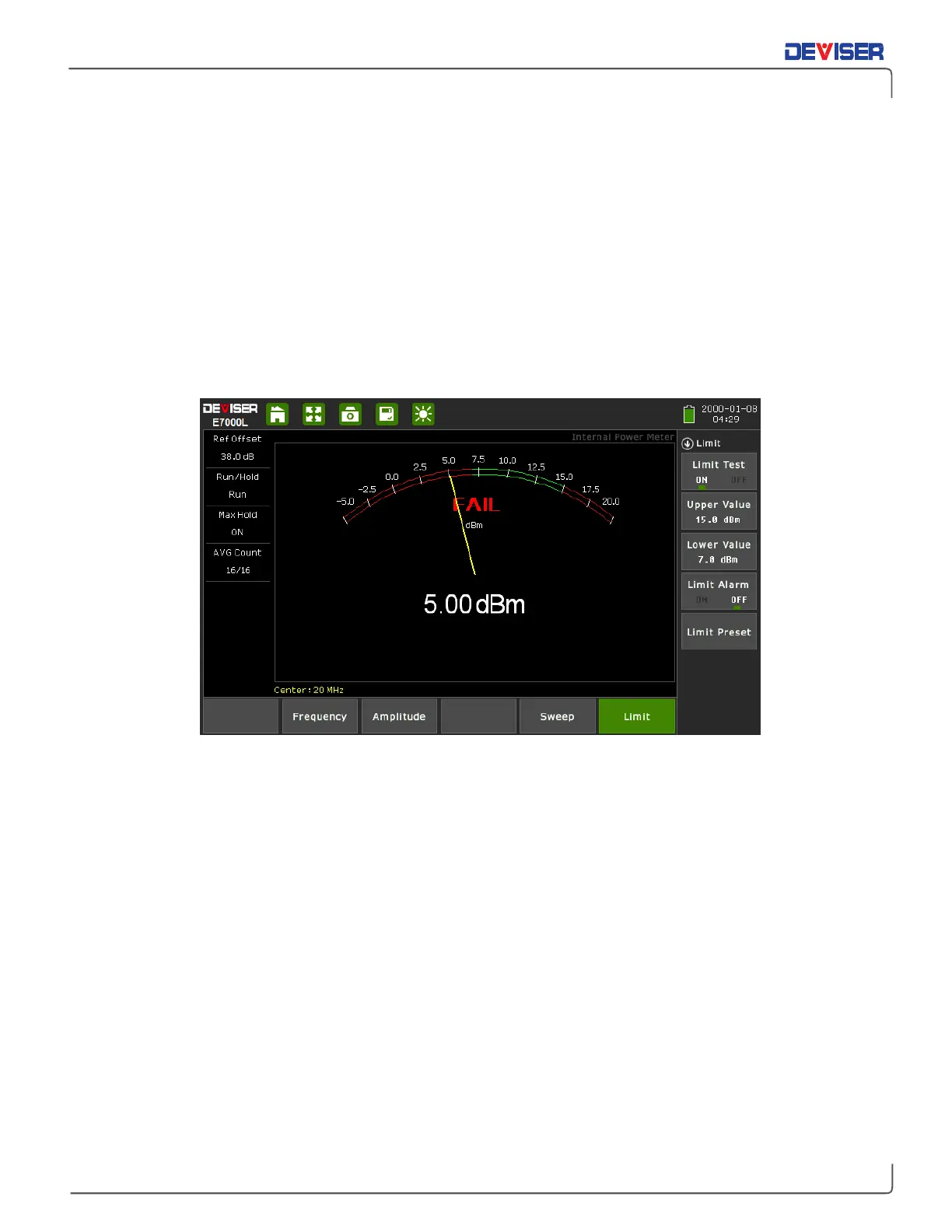

Internal Power Meter
measurement mode provides standard-accuracy RF power testing without the
need for external equipment. Simply connect the source to be measured to the n(m) power meter
connector on the instrument’s top panel.
NOTE: The power meter port is rated for connections up to, but not exceeding, +27 dBm / ±50V DC.
Enter this measurement mode by pressing the
Menu
button to the top-right of the display, then selecting
the Internal Power Meter icon.
