Deviser SitePROFILER User Manual

Name: Deviser SitePROFILER
Brand: Deviser
Rating: 4 (1 reviews)

90 pages

To Next Page

To Previous Page

E7000L

SitePROFILER

Handheld Cable/Antenna Analyzer

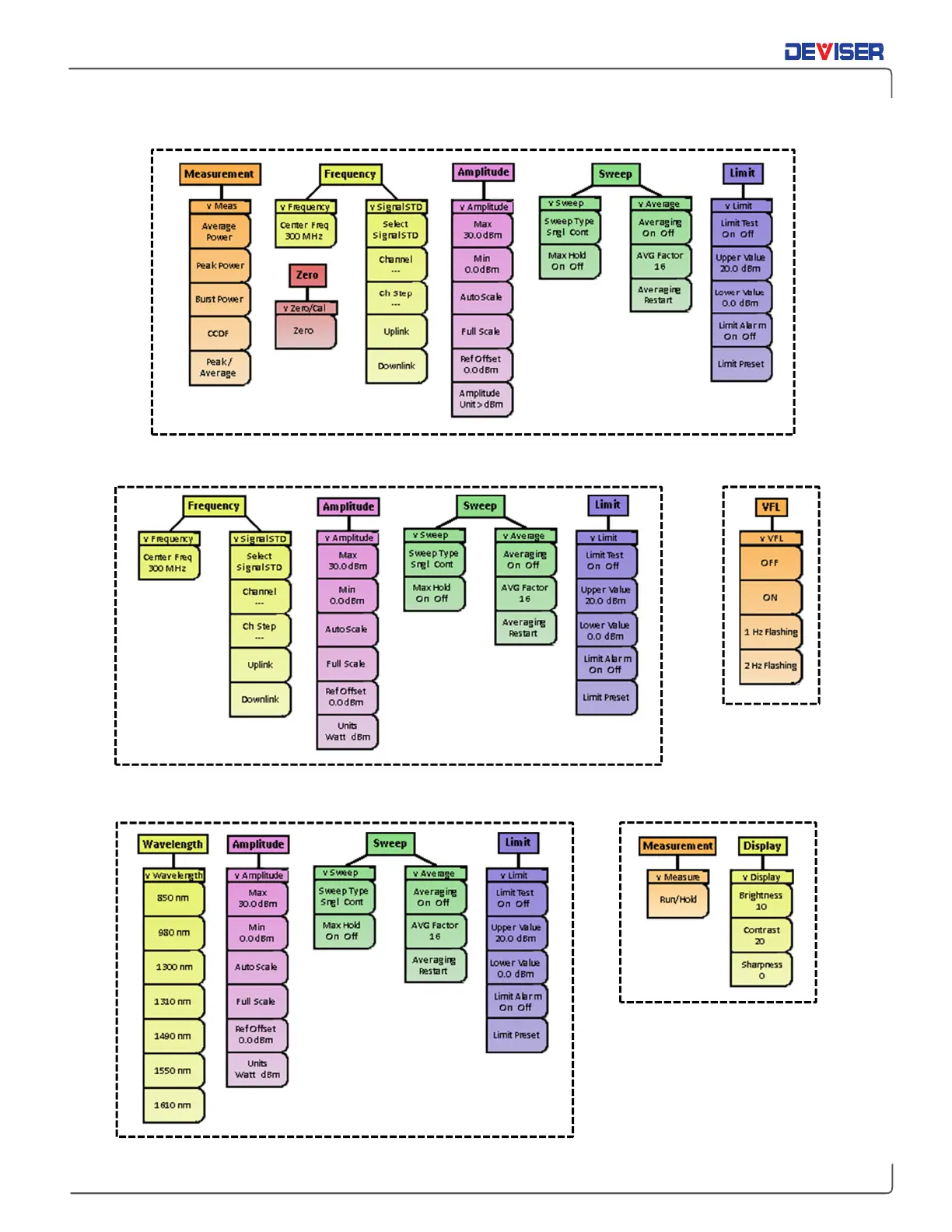

Inline High Power Meter Mode Menus

Internal Power Meter Mode Menus VFL Main Menu

Optical Power Meter Main Menus Fiber Scope Main Menu

Default Chapter2
- Table of Contents2
Chapter 1 - General Information5
- Introduction5
- About the E7000L Siteprofiler5
- Standard Accessories6
- Available Product Measurement Options6
- Product Accessories8
- Preventative Maintenance9
- Annual Service Verification9
- ESD Caution9
- Battery Replacement10
Chapter 2 - Instrument Overview11
- Introduction11
- Unpacking the E7000L Siteprofiler11
- Items Included with E7000L Shipment11
- Powering on the E7000L12
- Exploring the E7000L Siteprofiler12
- Display Overview13
- Touchscreen Keys Main Menu14
- Submenus14
- Front Panel Overview14
- Front Panel Keys15
- Data Keypad Function Keys16
- Test Panel Connector Overview18
- Symbols and Indicators19
- Data Entry20
- Making a Measurement20
- Measurement Mode Selection21
- About the Soft Carrying Case22
Chapter 3 - Calibrating the E7000L23
- Introduction23
- Calibration Equipment23
- Performing the Calibration24
- Calibration Correction and Info25
Chapter 4 - Cable Analyzer Menus26
- Cable & Antenna Mode: Menus & Definitions29
- Inline High Power Meter Mode: Menus & Definitions37
- Internal Power Meter Mode: Menus & Definitions40
- Optical Power Meter Mode: Menus & Definitions42
- Visual Fault Locator (VFL) Mode: Menus & Definitions44
- Fiber Microscope Mode: Menus & Definitions45
- Cable Analyzer Shortcut Data Keypad Menu46
Chapter 5 - Return Loss Measurement Testing47
- Introduction47
- Setting up a Return Loss Measurement48
- Making a Return Loss Measurement48
Chapter 6 - Vswr Measurement Testing49
- Introduction49
- Setting up a VSWR Measurement50
- Making a VSWR Measurement50
Chapter 7 - Dtf Measurement Testing51
- Introduction51
- Setting up a DTF Measurement52
- Making a DTF Measurement53
Chapter 8 - One Port Cable Loss Measurement Testing54
- Introduction54
- Setting up a One Port Cable Loss Measurement54
- Making a One Port Cable Loss Measurement55
Chapter 9 - One Port Phase Measurement Testing56
- Introduction56
- Setting up a One Port Phase Measurement56
- Making a One Port Phase Measurement57
Chapter 10 - Smith Chart Measurement Testing58
- Introduction58
- Setting up a Smith Chart Measurement58
- Making a Smith Chart Measurement59
- Optional Measurement Modes61
Chapter 11 - Inline High Power Meter62
- Introduction62
- Making an Average Power Measurement63
- Making a Peak Power Measurement64
- Making a Burst Power Measurement65
- Making a CCDF Measurement66
- Making a Peak-To-Average Measurement67
Chapter 12 - Internal Power Meter68
- Introduction68
- Making an Internal Power Meter Measurement69
Chapter 13 - Optical Power Meter70
- Introduction70
- Making an Optical Power Meter Measurement71
Chapter 14 - Visual Fault Locator (Vfl)72
- Introduction72
- Using the Visual Fault Locator72
Chapter 15 - Fiber Inspection73
- Introduction73
- Using the Fiber Scope73
Chapter 16 - Markers and Limit Lines74
- Introduction74
- Setting a Marker74
- Setting a Limit Line75
Chapter 17 - File Management76
- Introduction76
- Overview76
- Saving Files77
- Managing Files79
Chapter 18 - System Operations82
- Introduction82
- System Setup83
- System Update87
- System Information87
Chapter 19 - Deviser Software Tools88
- Introduction88
- Feature Overview88
- Installing Site Workbench88
- Connecting to the E7000L Cable Analyzer88
Chapter 20 - Specifications89
