E7000L

SitePROFILER

Handheld Cable/Antenna Analyzer

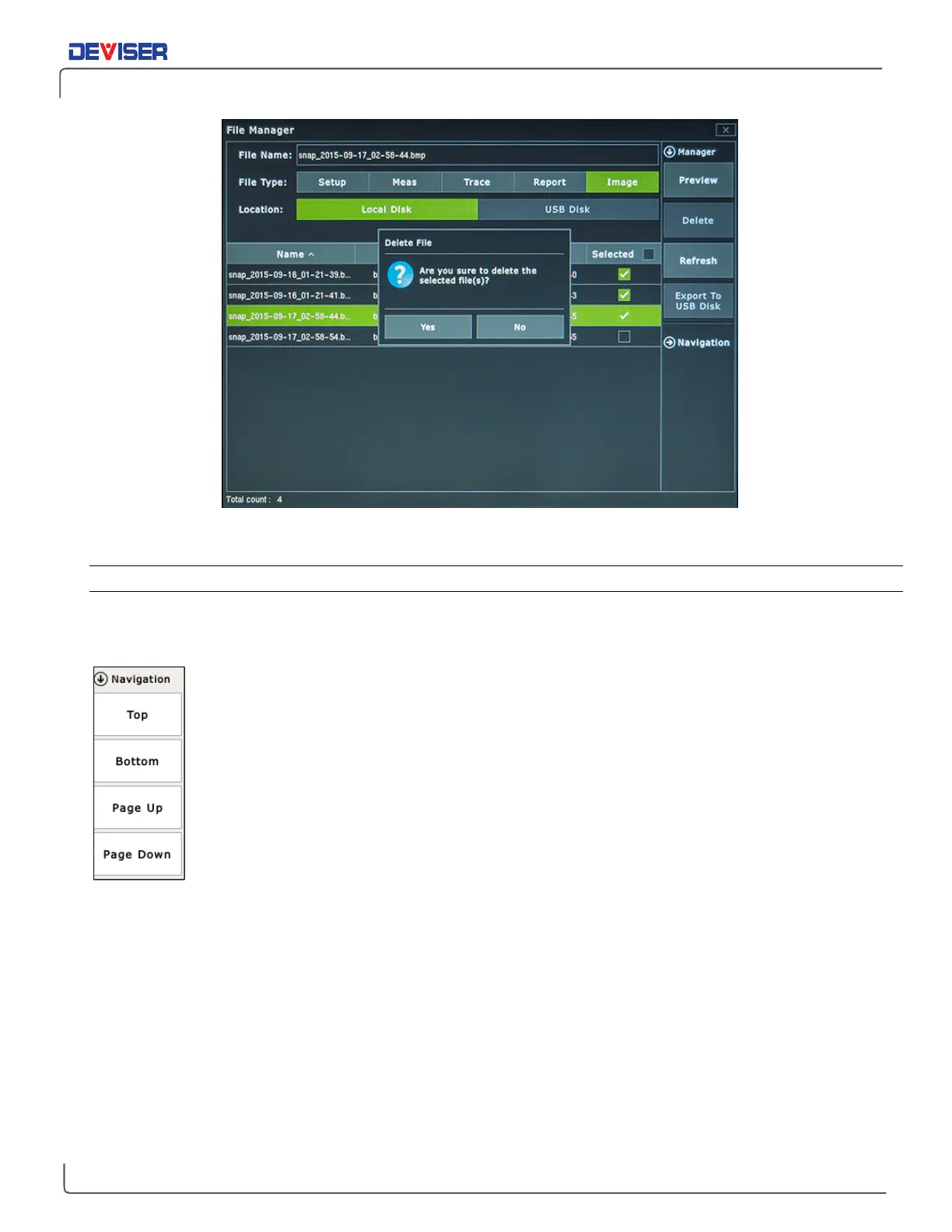

17-3.3 — Navigation Tools

Under the

Manager

submenu key, tap the

Navigation

submenu key to open the Navigation submenu.

These tools enable you to quickly sift through long lists of saved files. They are detailed below.

Top:

Selects the first file listed.

Bottom:

Selects the last file listed.

Page Up

: Scrolls to previous page of files.

Page

Down:

Scrolls to next page of files.

Marking Multiple Items for Deletion

Default Chapter2
- Table of Contents2
Chapter 1 - General Information5
- Introduction5
- About the E7000L Siteprofiler5
- Standard Accessories6
- Available Product Measurement Options6
- Product Accessories8
- Preventative Maintenance9
- Annual Service Verification9
- ESD Caution9
- Battery Replacement10
Chapter 2 - Instrument Overview11
- Introduction11
- Unpacking the E7000L Siteprofiler11
- Items Included with E7000L Shipment11
- Powering on the E7000L12
- Exploring the E7000L Siteprofiler12
- Display Overview13
- Touchscreen Keys Main Menu14
- Submenus14
- Front Panel Overview14
- Front Panel Keys15
- Data Keypad Function Keys16
- Test Panel Connector Overview18
- Symbols and Indicators19
- Data Entry20
- Making a Measurement20
- Measurement Mode Selection21
- About the Soft Carrying Case22
Chapter 3 - Calibrating the E7000L23
- Introduction23
- Calibration Equipment23
- Performing the Calibration24
- Calibration Correction and Info25
Chapter 4 - Cable Analyzer Menus26
- Cable & Antenna Mode: Menus & Definitions29
- Inline High Power Meter Mode: Menus & Definitions37
- Internal Power Meter Mode: Menus & Definitions40
- Optical Power Meter Mode: Menus & Definitions42
- Visual Fault Locator (VFL) Mode: Menus & Definitions44
- Fiber Microscope Mode: Menus & Definitions45
- Cable Analyzer Shortcut Data Keypad Menu46
Chapter 5 - Return Loss Measurement Testing47
- Introduction47
- Setting up a Return Loss Measurement48
- Making a Return Loss Measurement48
Chapter 6 - Vswr Measurement Testing49
- Introduction49
- Setting up a VSWR Measurement50
- Making a VSWR Measurement50
Chapter 7 - Dtf Measurement Testing51
- Introduction51
- Setting up a DTF Measurement52
- Making a DTF Measurement53
Chapter 8 - One Port Cable Loss Measurement Testing54
- Introduction54
- Setting up a One Port Cable Loss Measurement54
- Making a One Port Cable Loss Measurement55
Chapter 9 - One Port Phase Measurement Testing56
- Introduction56
- Setting up a One Port Phase Measurement56
- Making a One Port Phase Measurement57
Chapter 10 - Smith Chart Measurement Testing58
- Introduction58
- Setting up a Smith Chart Measurement58
- Making a Smith Chart Measurement59
- Optional Measurement Modes61
Chapter 11 - Inline High Power Meter62
- Introduction62
- Making an Average Power Measurement63
- Making a Peak Power Measurement64
- Making a Burst Power Measurement65
- Making a CCDF Measurement66
- Making a Peak-To-Average Measurement67
Chapter 12 - Internal Power Meter68
- Introduction68
- Making an Internal Power Meter Measurement69
Chapter 13 - Optical Power Meter70
- Introduction70
- Making an Optical Power Meter Measurement71
Chapter 14 - Visual Fault Locator (Vfl)72
- Introduction72
- Using the Visual Fault Locator72
Chapter 15 - Fiber Inspection73
- Introduction73
- Using the Fiber Scope73
Chapter 16 - Markers and Limit Lines74
- Introduction74
- Setting a Marker74
- Setting a Limit Line75
Chapter 17 - File Management76
- Introduction76
- Overview76
- Saving Files77
- Managing Files79
Chapter 18 - System Operations82
- Introduction82
- System Setup83
- System Update87
- System Information87
Chapter 19 - Deviser Software Tools88
- Introduction88
- Feature Overview88
- Installing Site Workbench88
- Connecting to the E7000L Cable Analyzer88
Chapter 20 - Specifications89
